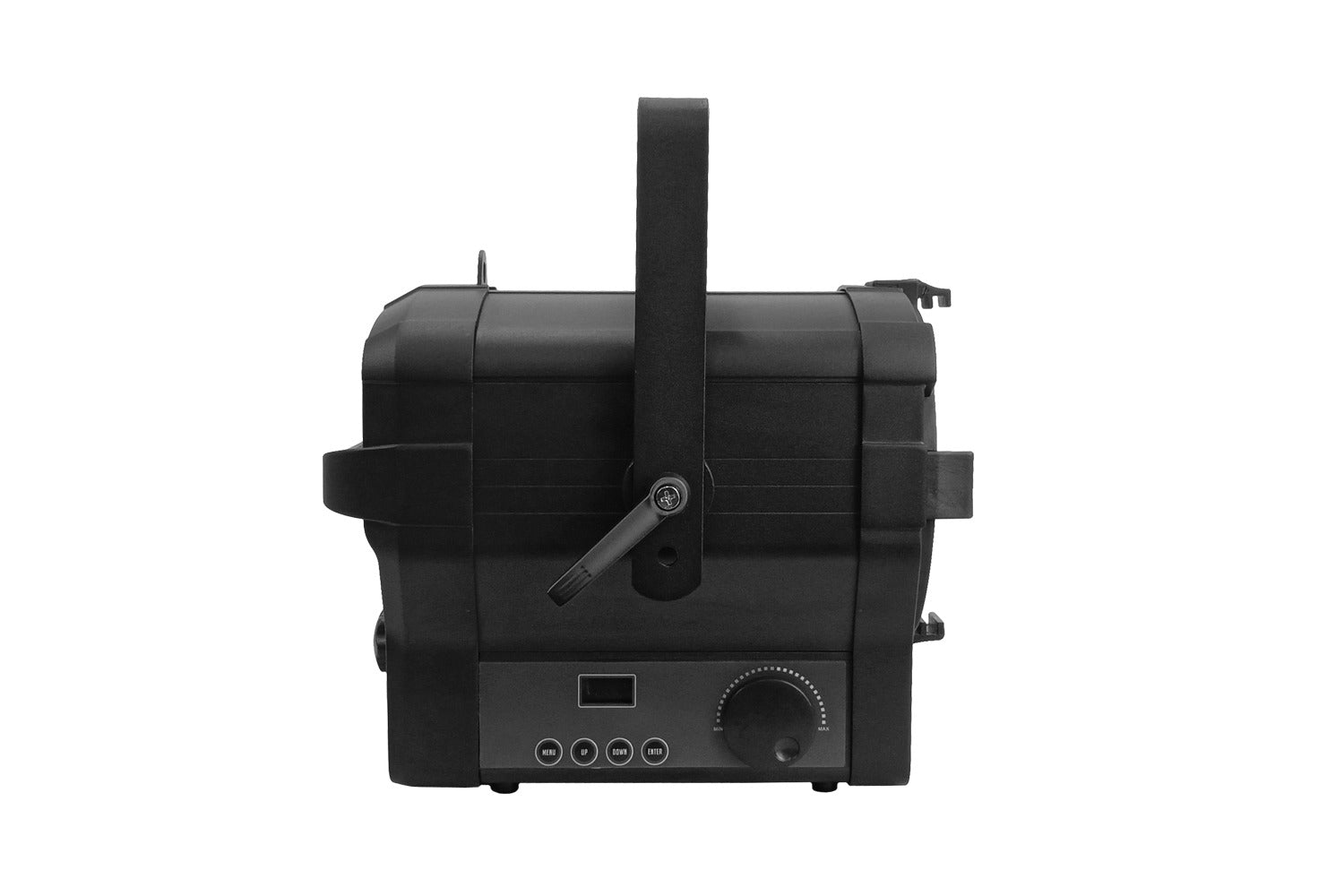

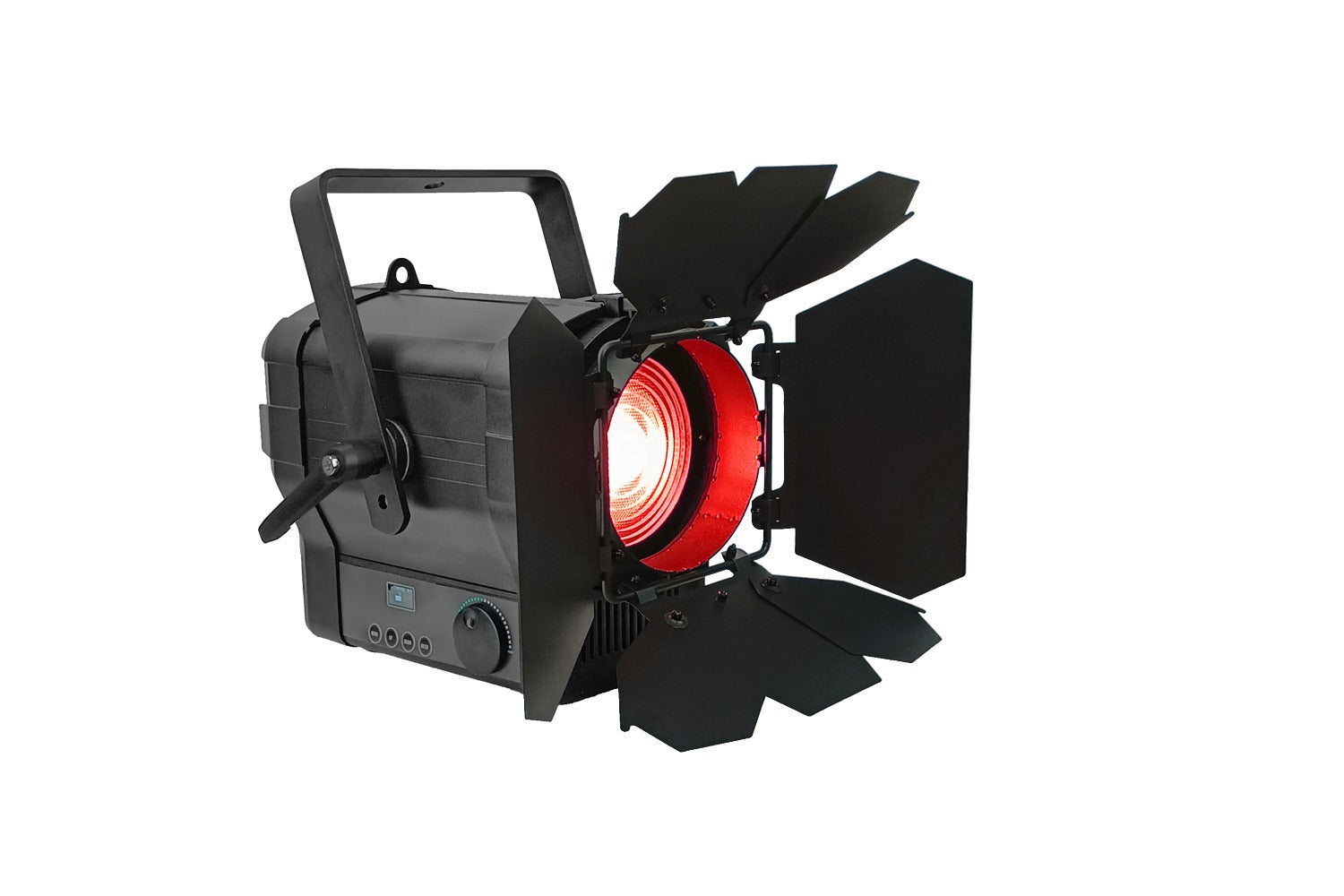

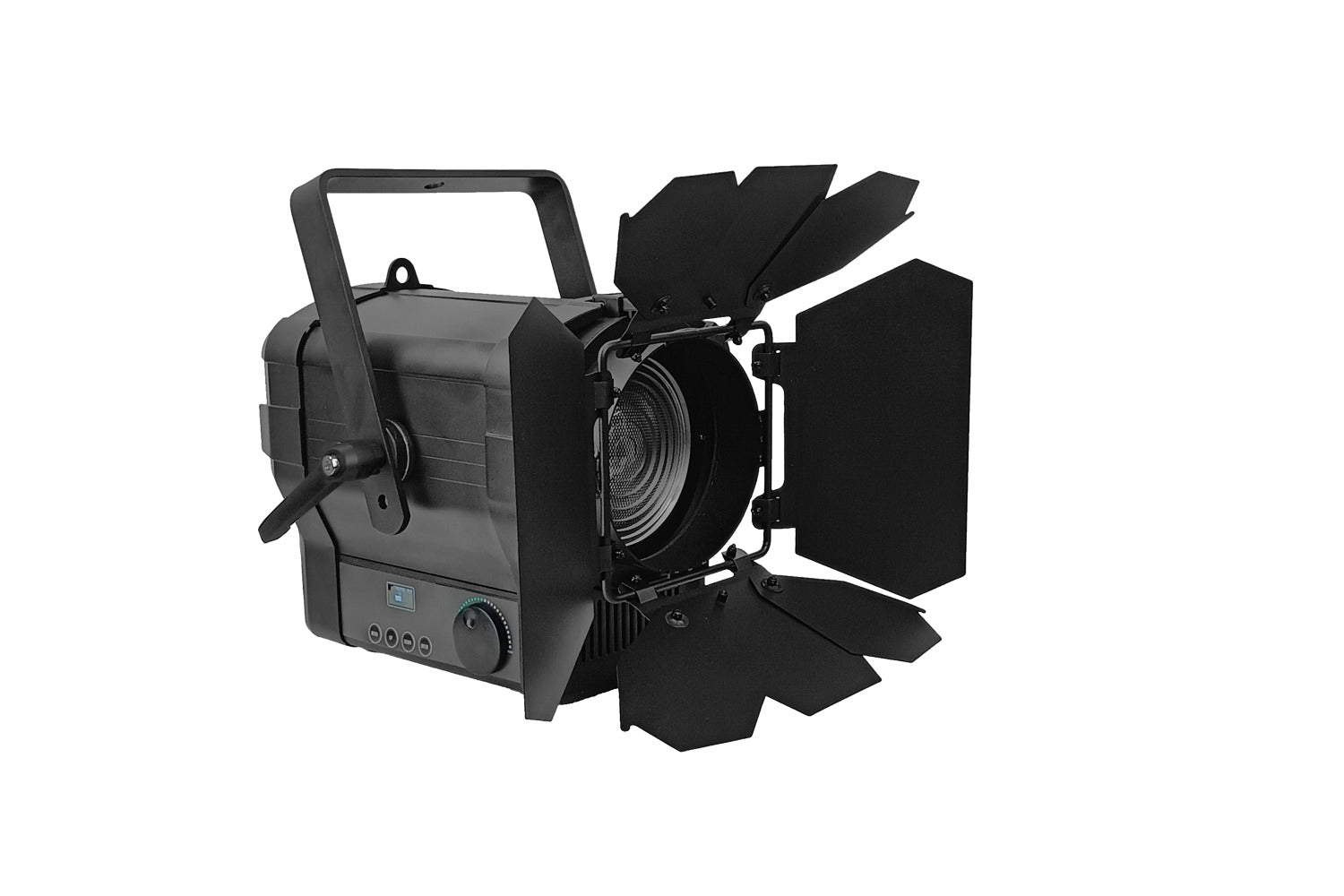

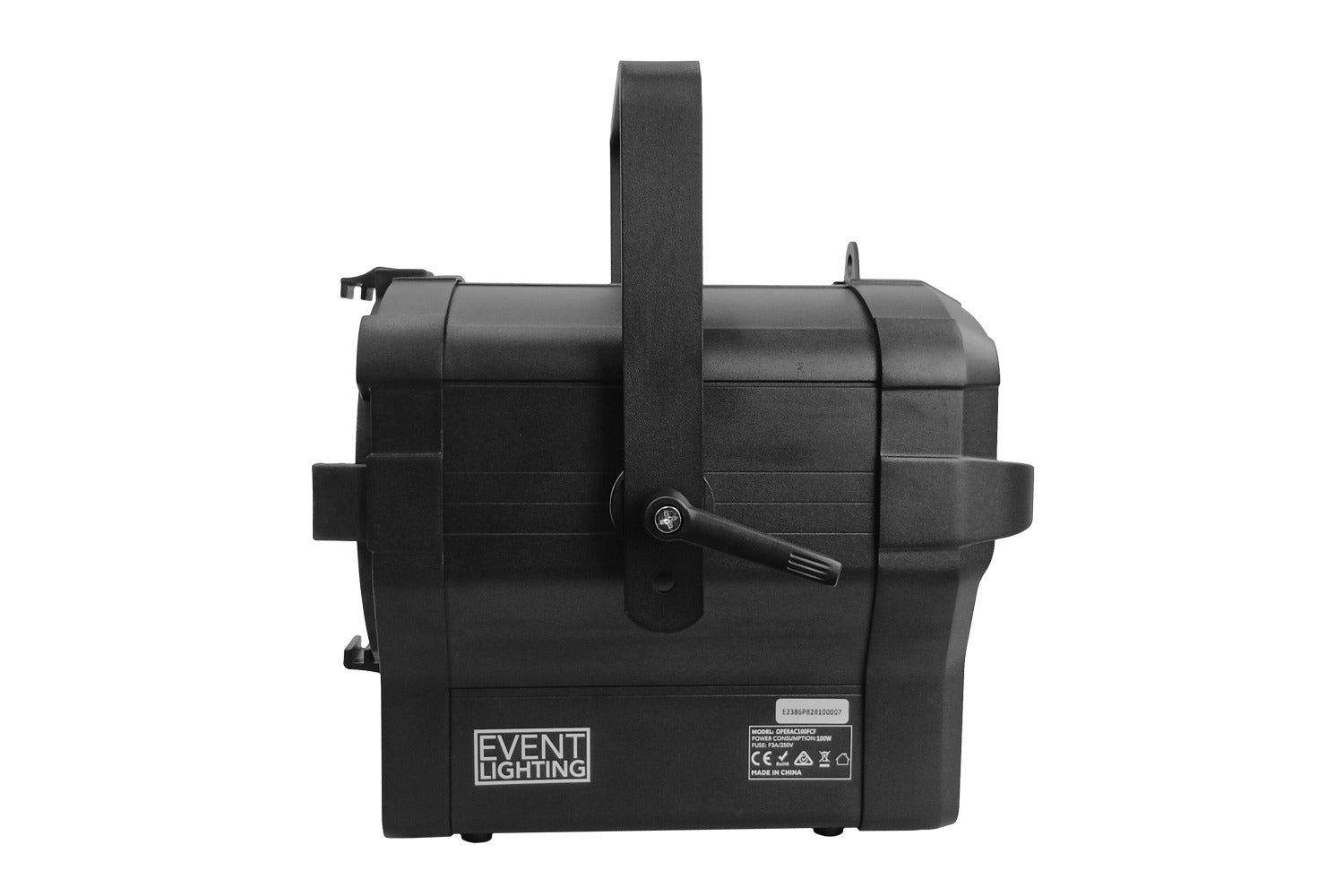

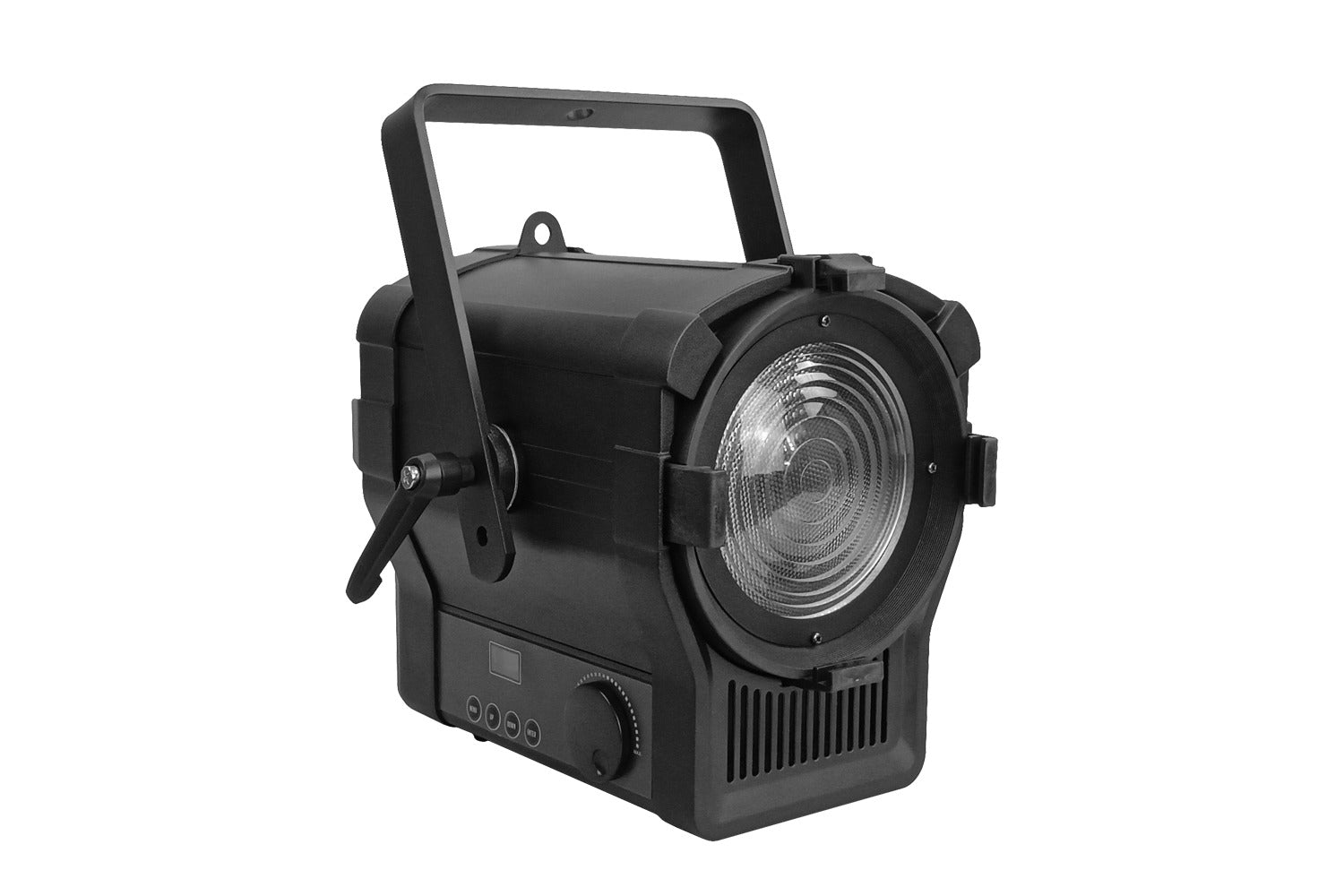

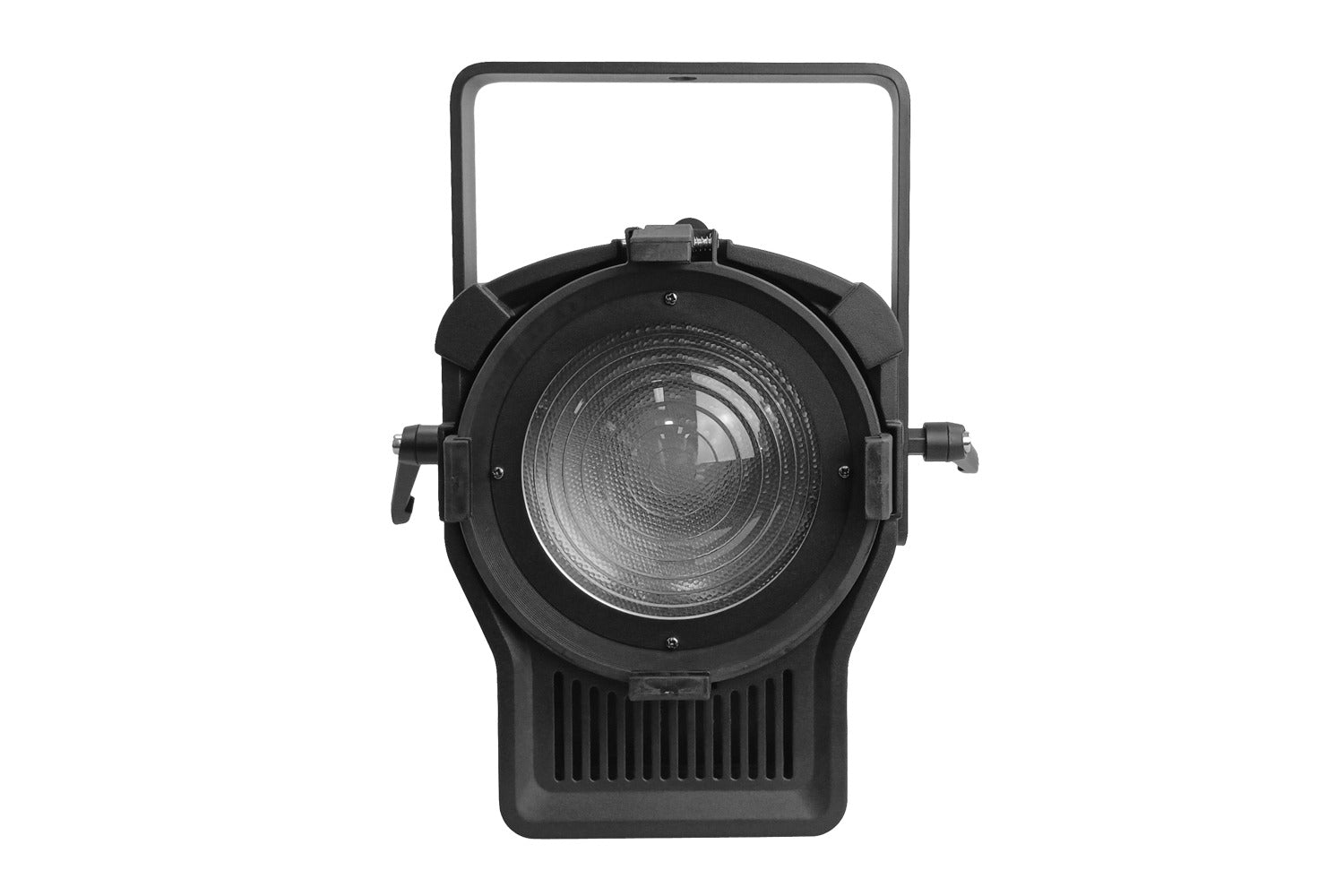

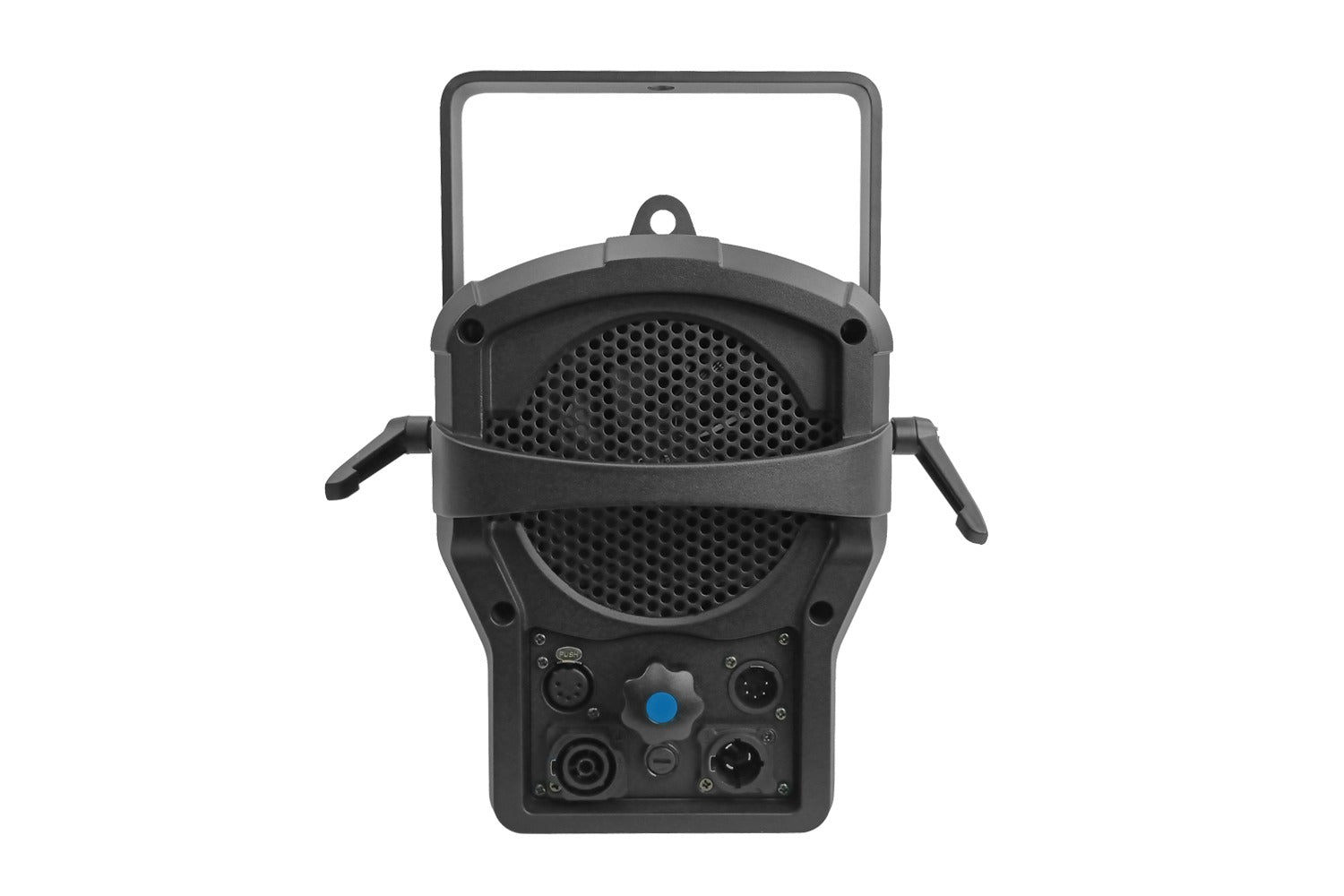

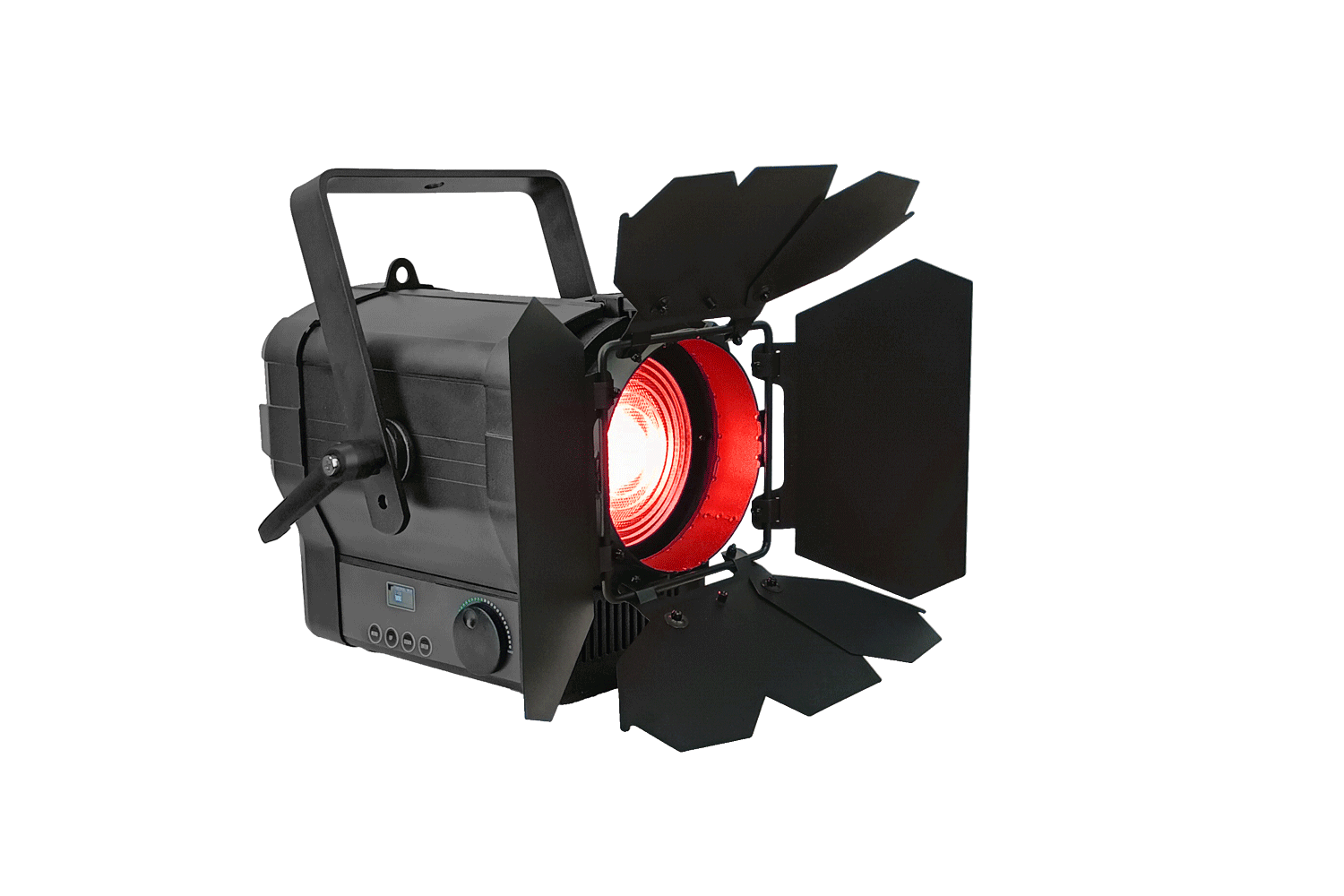

Opera Compact Series Fresnel with 100W COB RGBW LED Engine, 22°-62° Manual Zoom, True1 in/out, 5 pin DMX in/out, includes gel frame & 8 leaf barn door

The 1 Channel Mode allows you to tune the Colour Temperature to match existing fixtures an utilise a single channel dimmer for ease-of-use.

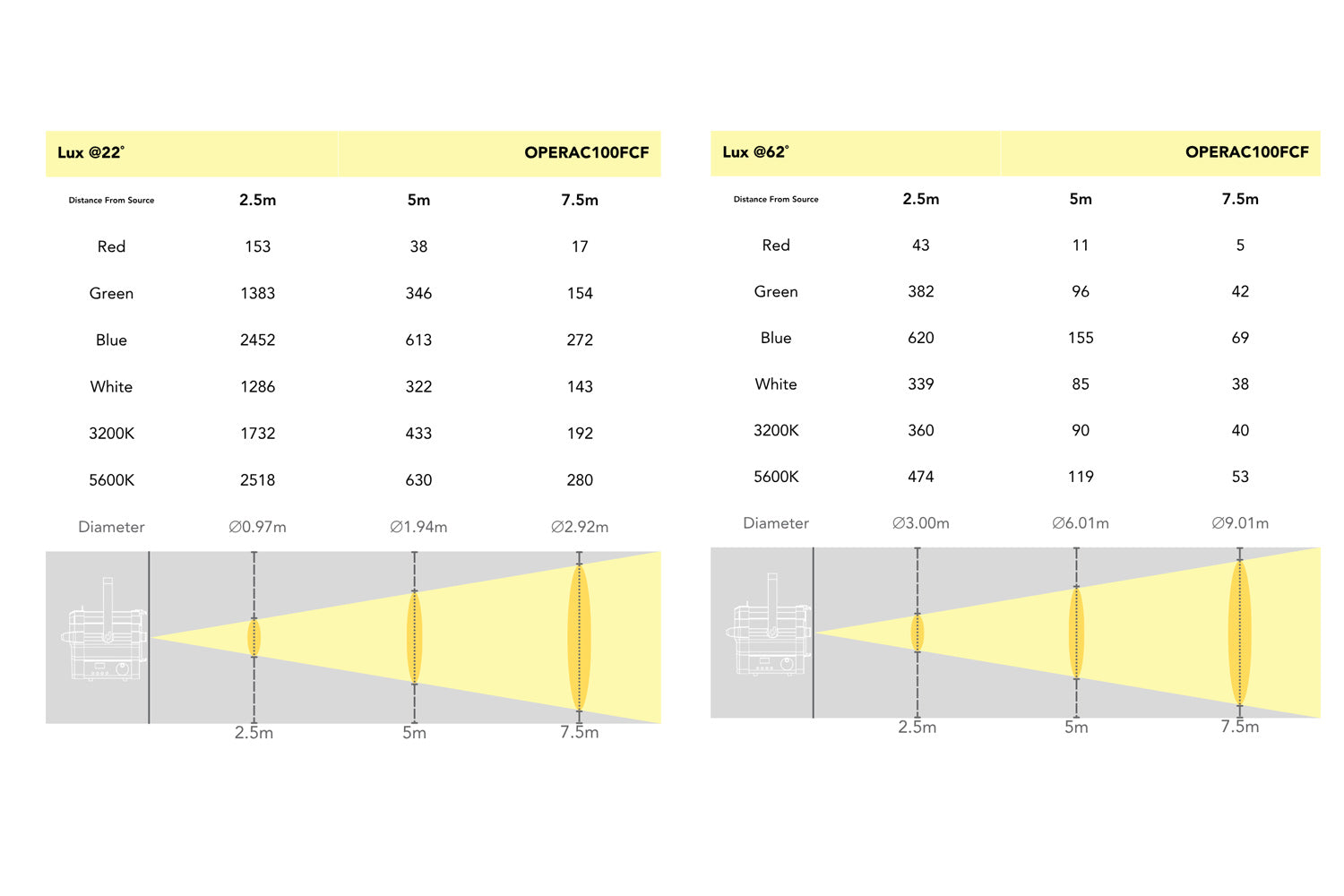

Photometrics

• Light Source: 100W COB RGBW LED
• CRI: 90
• Beam Angle: 22°~62°
• LED Lifespan: 50,000 hours

Effects

• Dimming: 16 bits 0-100%,
• Zoom: Manual, 22°~62°
• Optical system: Glass lens set+ 120 mm Fresnel lens

Power

• Power Supply: 100~240V AC, 50/60Hz, 100W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, RDM, Manual

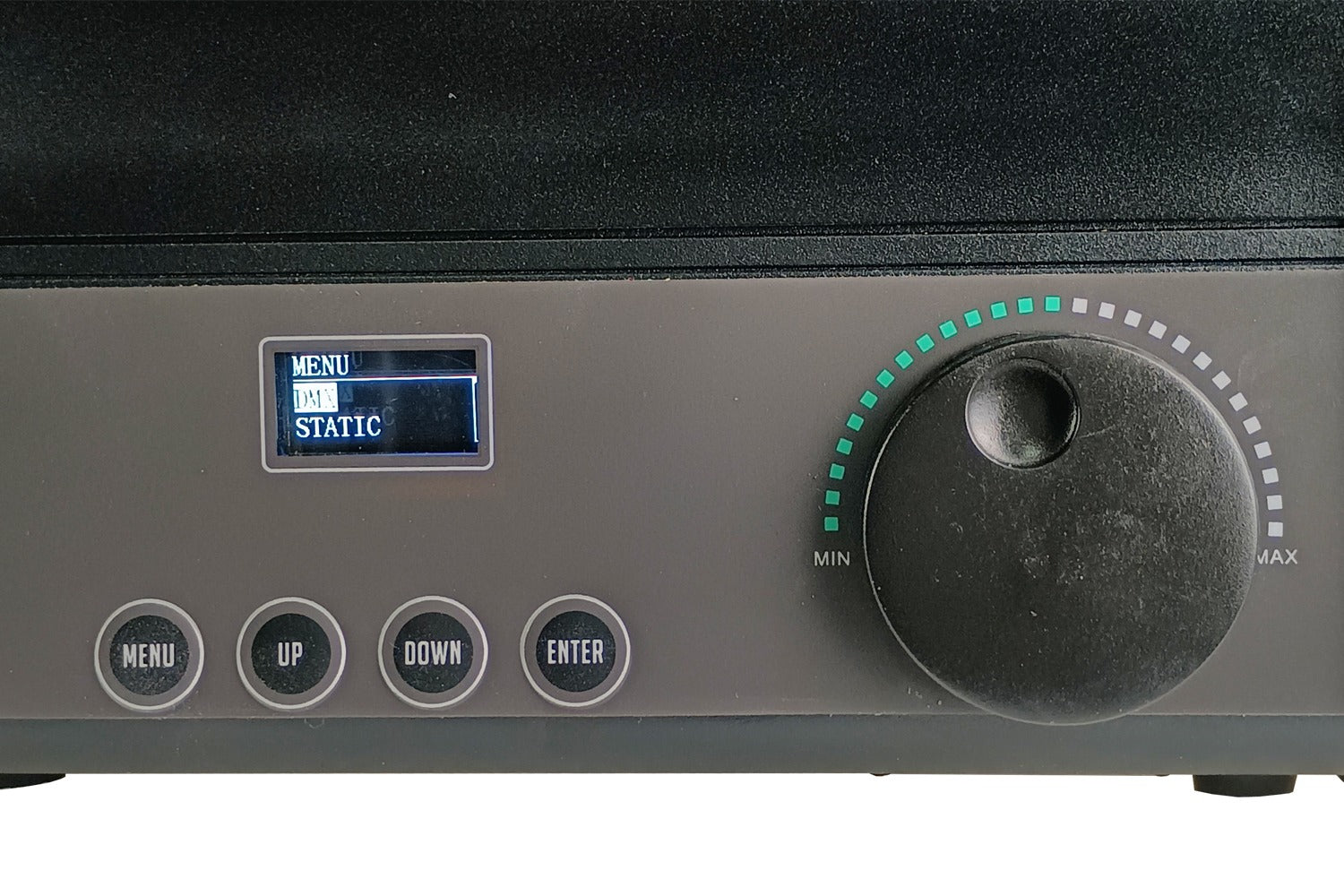

• Display: 4-button TFT-LCD control panel
• Control Protocol: DMX512

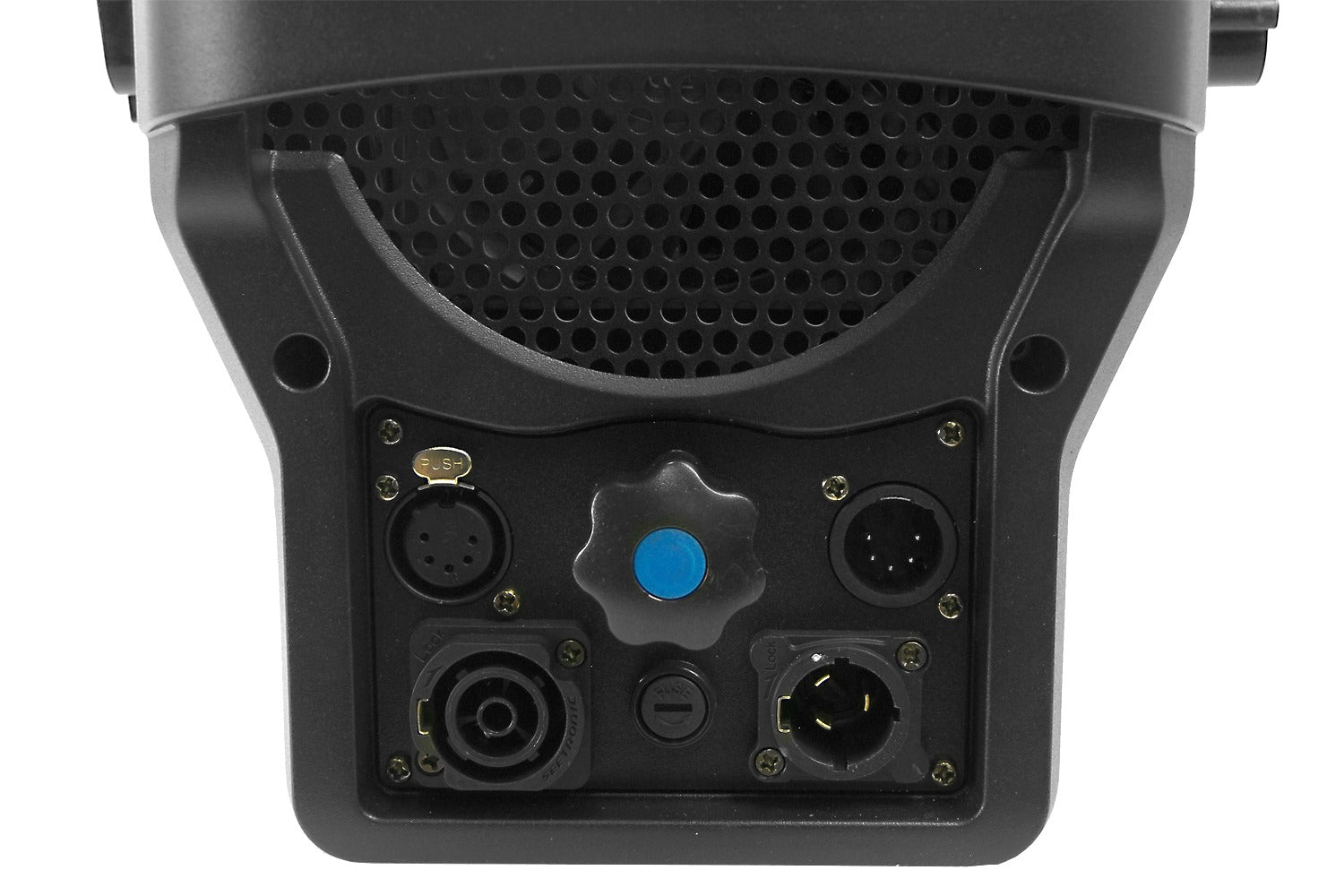

• Control Interface: 5 pin XLR - in/out
• DMX Channels: 1-CH /  2-CH / 4-CH / 5-CH / 7-CH / 9-CH / 13-CH / 9H-CH optional

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Tilt angle: ±90°
• Ambient environment: -10℃～40℃
• Cooling: Silent fan, intelligent automatic temperature regulation system
• Net Weight: 6.7kg

• IP rate: IP20

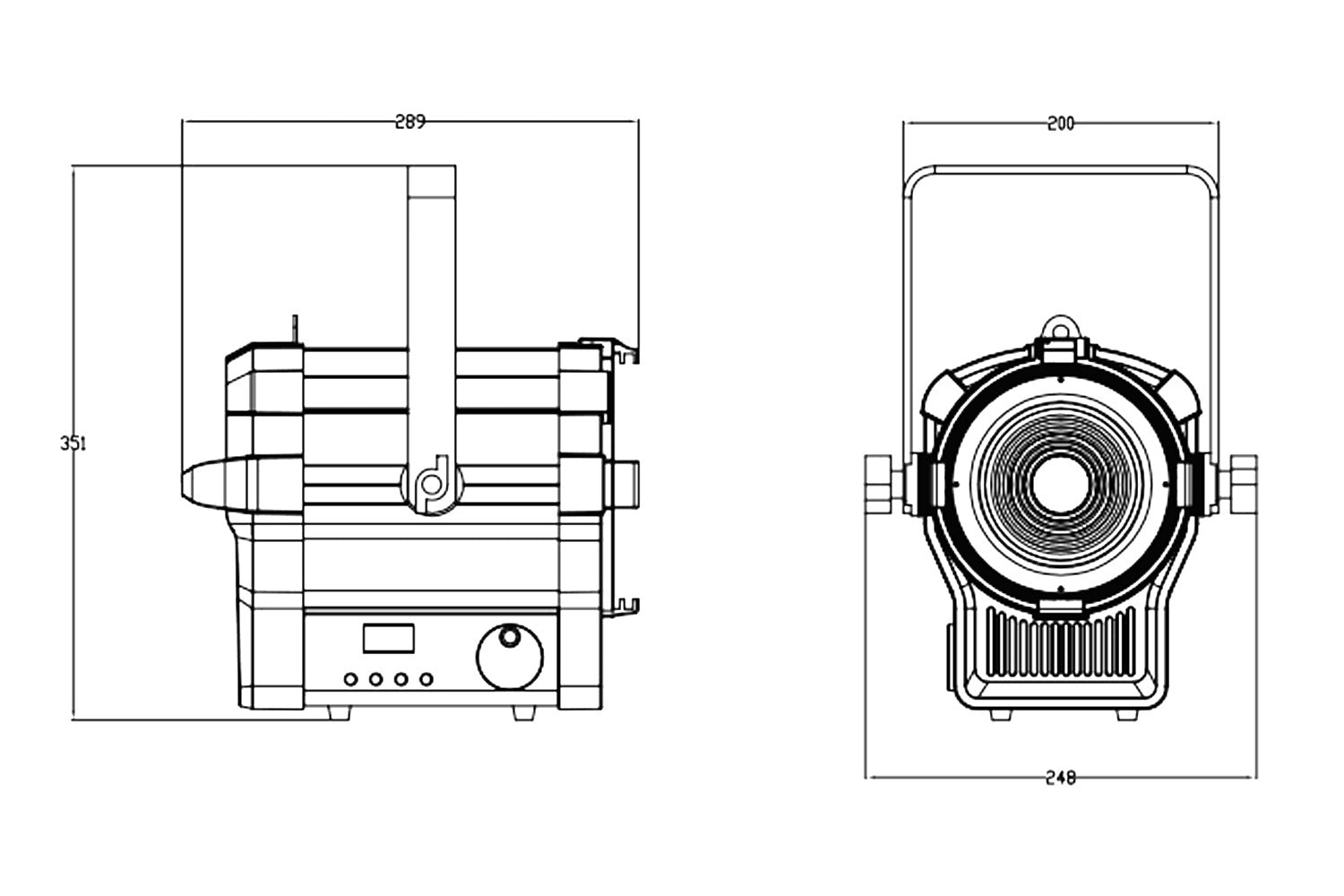

• Overall Size: 289 x 351 x 248mm

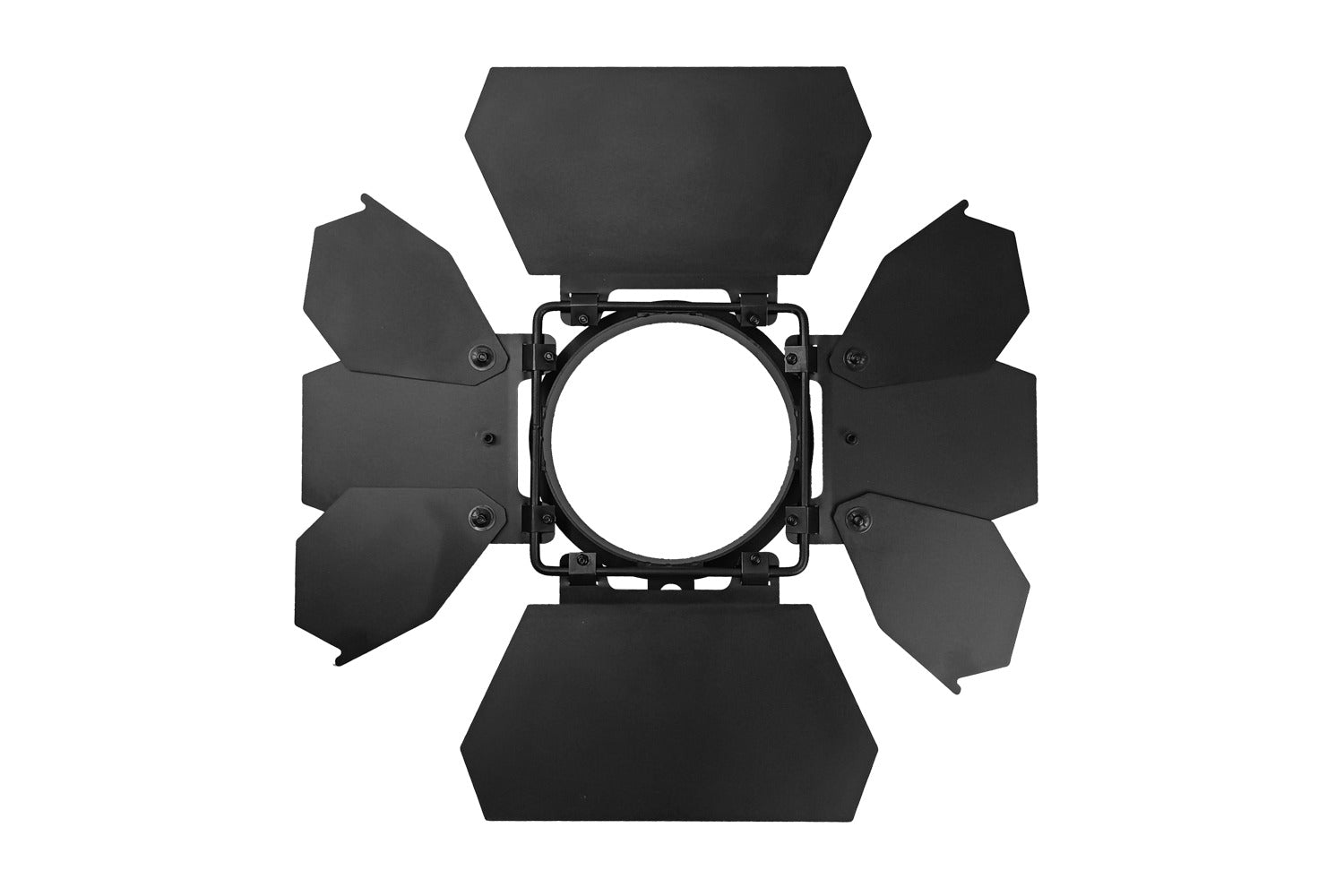

• 8-Leaf Barndoor included

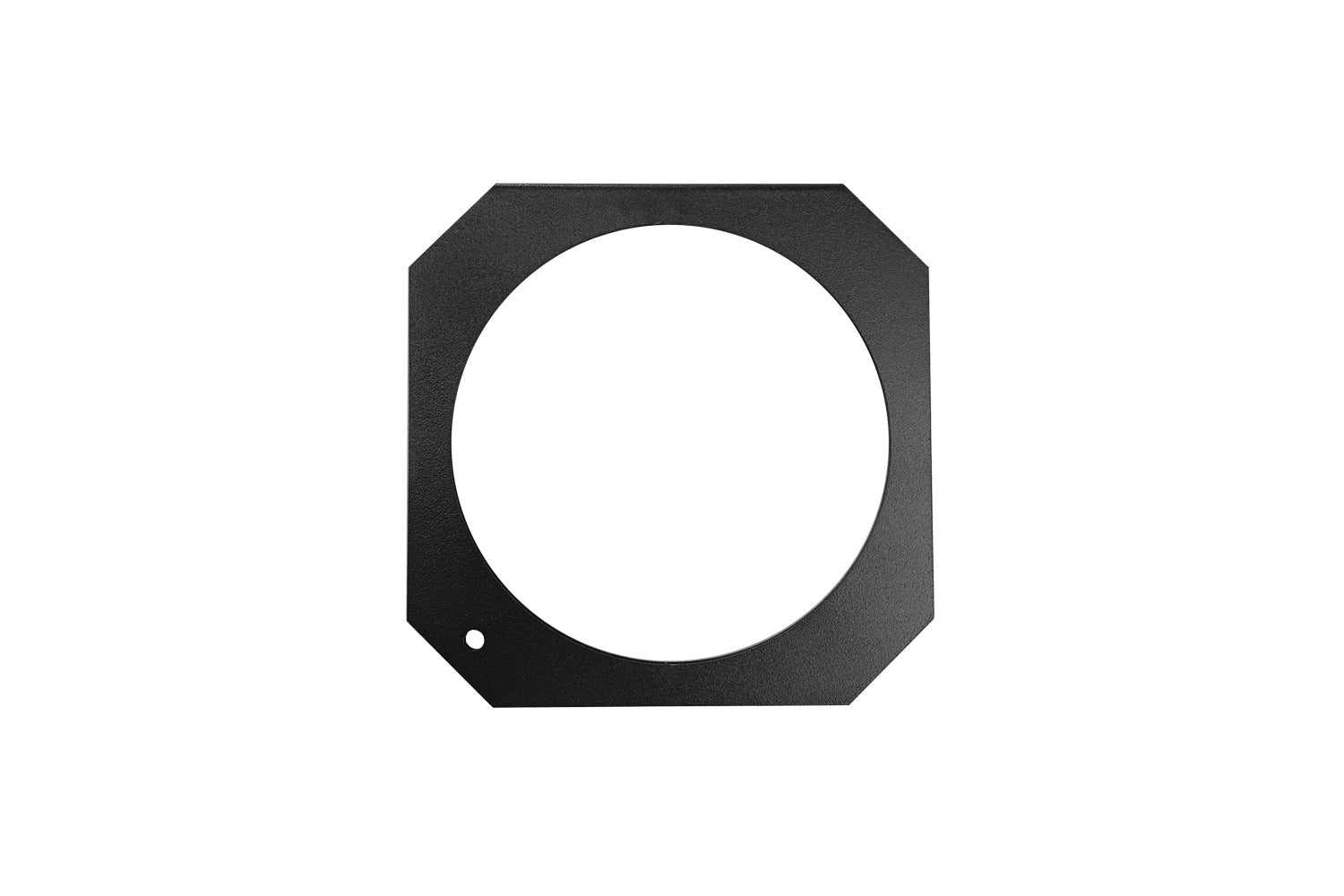

• Gel Frame included

Download user manual

Download Specification Sheet

Warranty: 3 years
