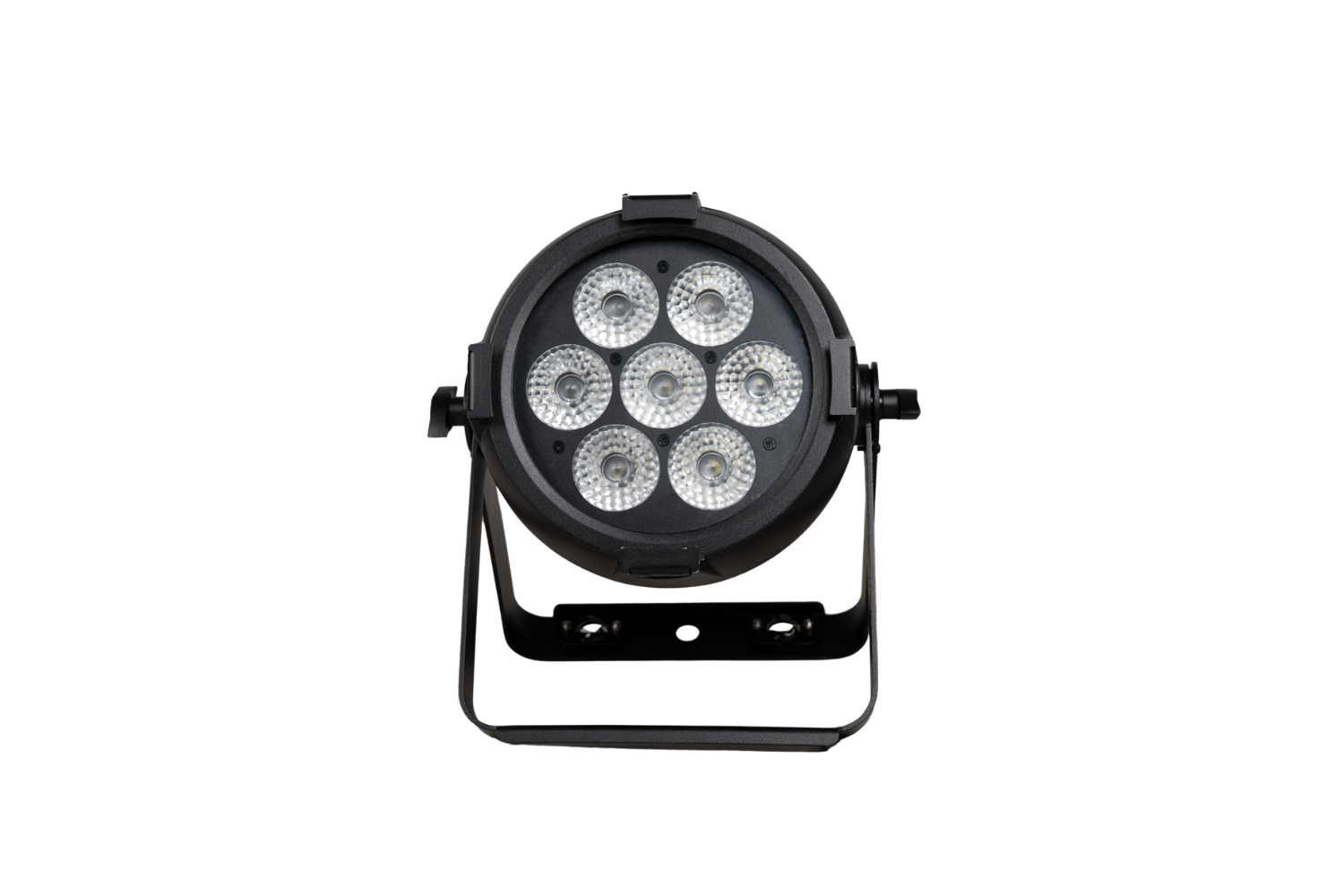

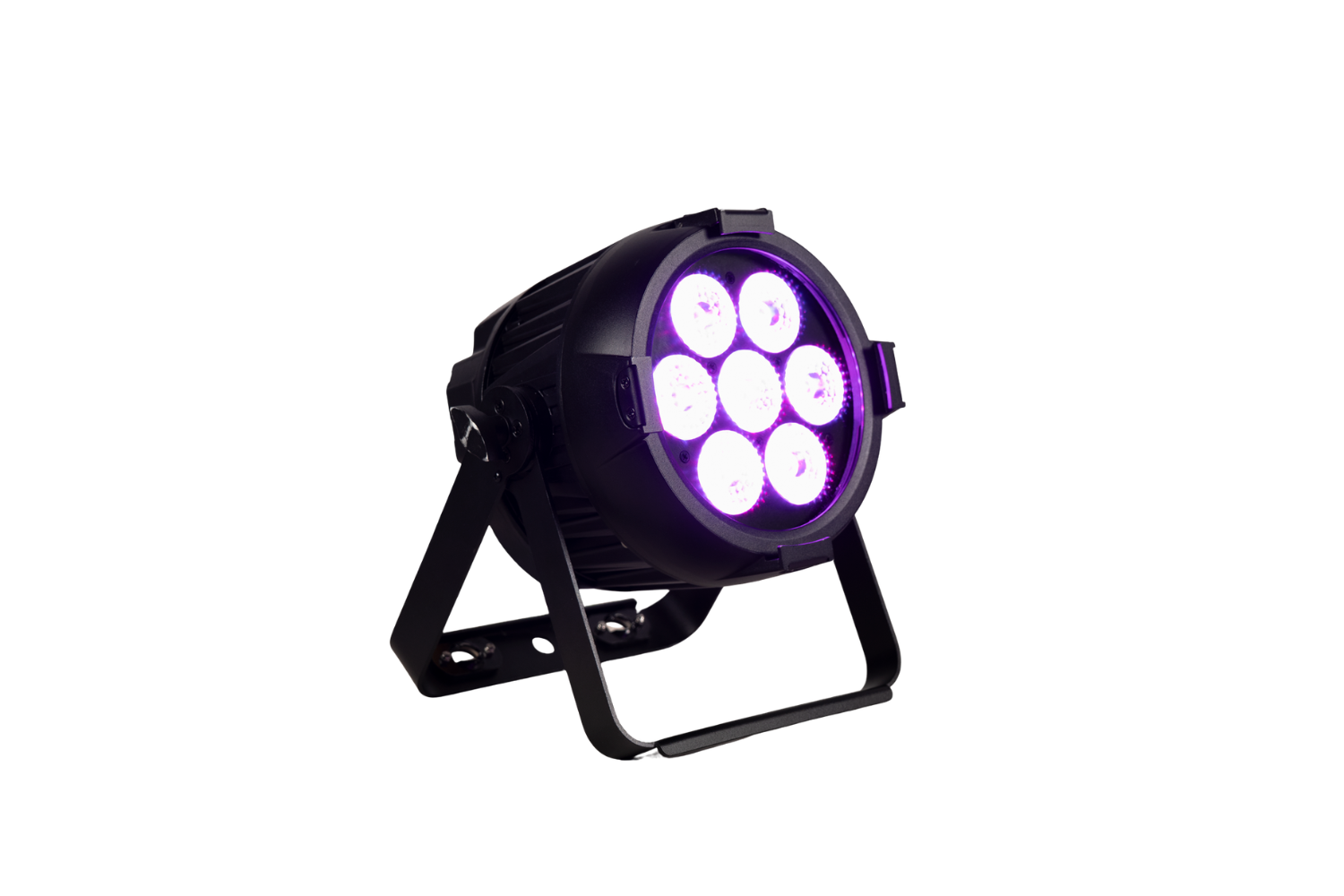

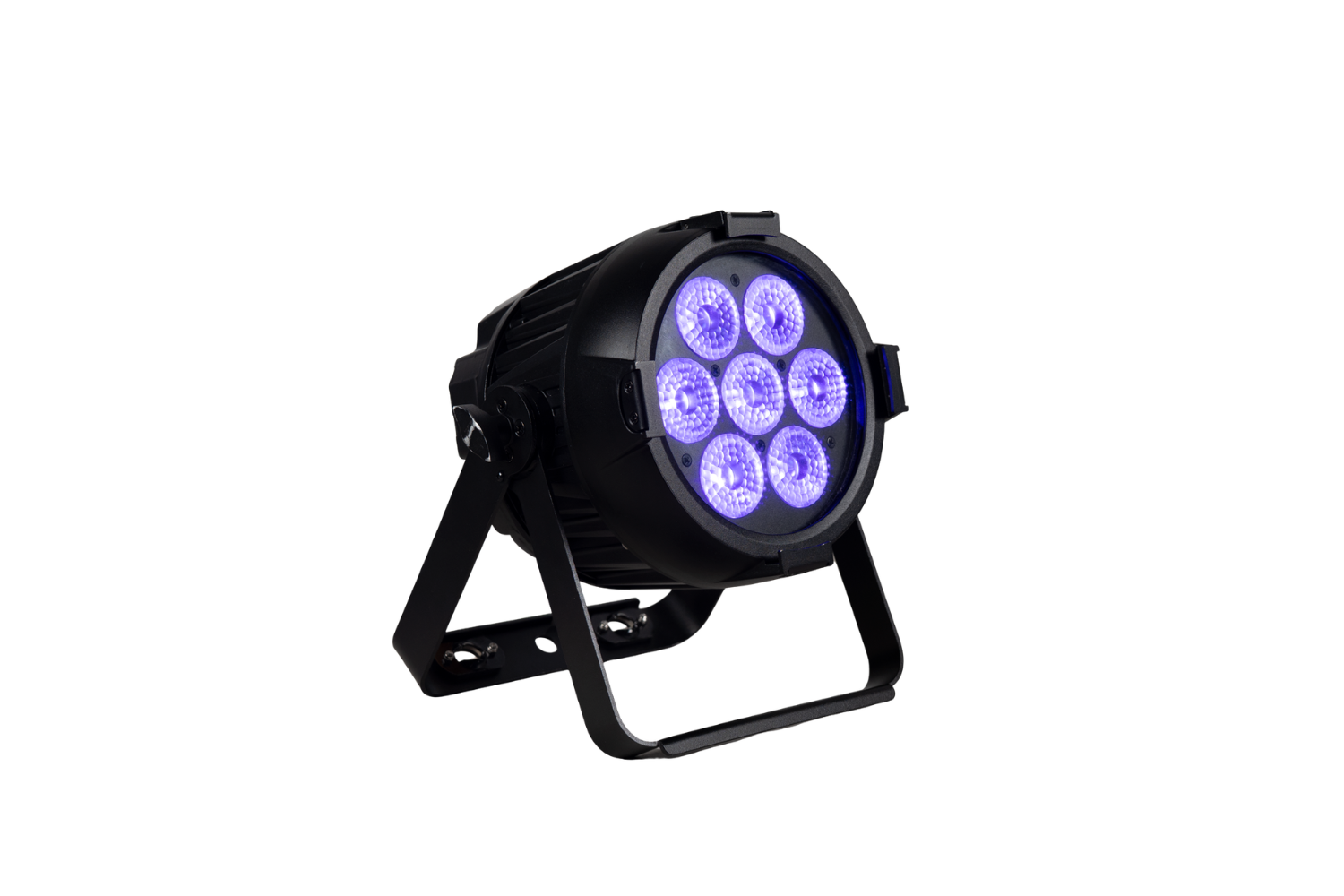

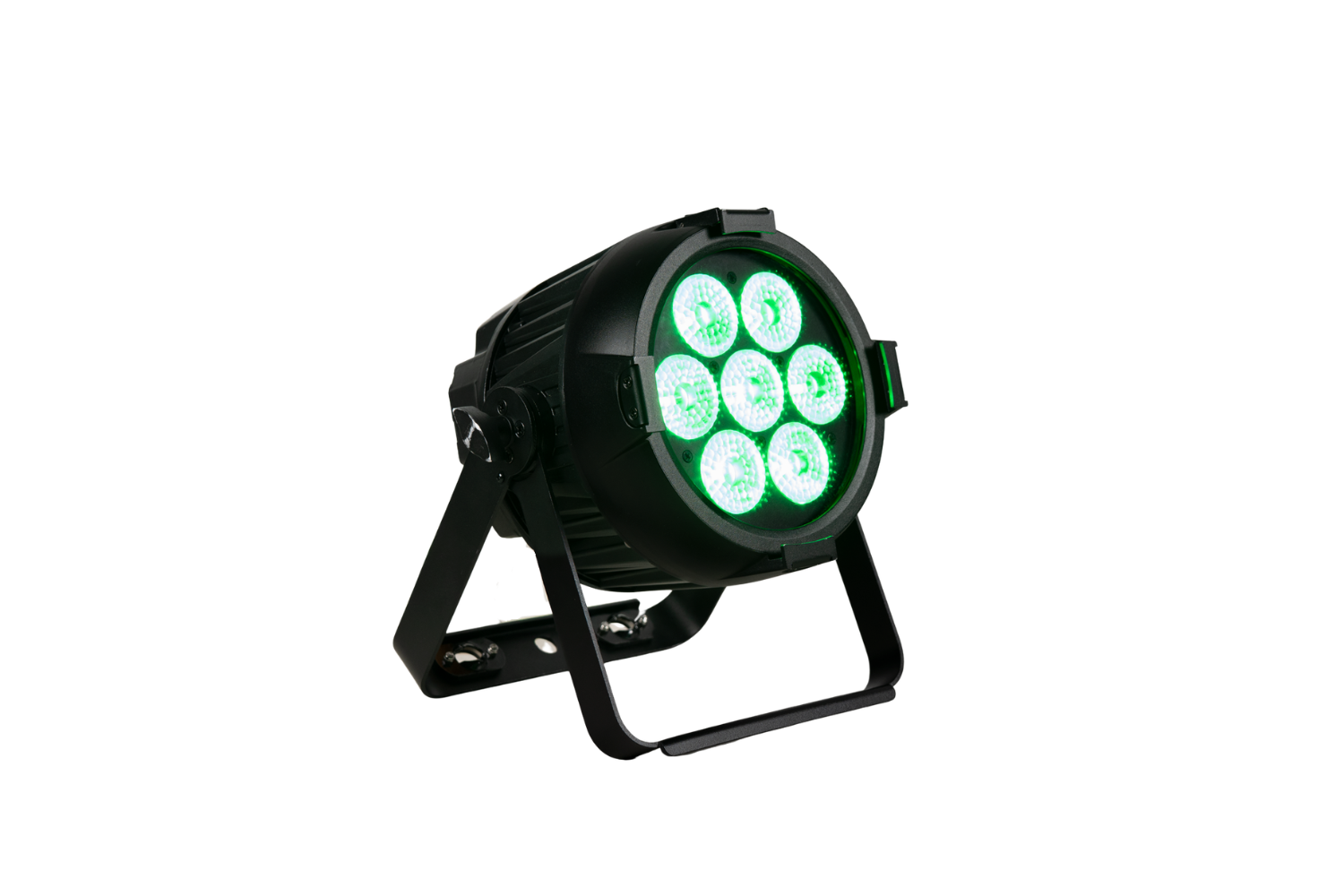

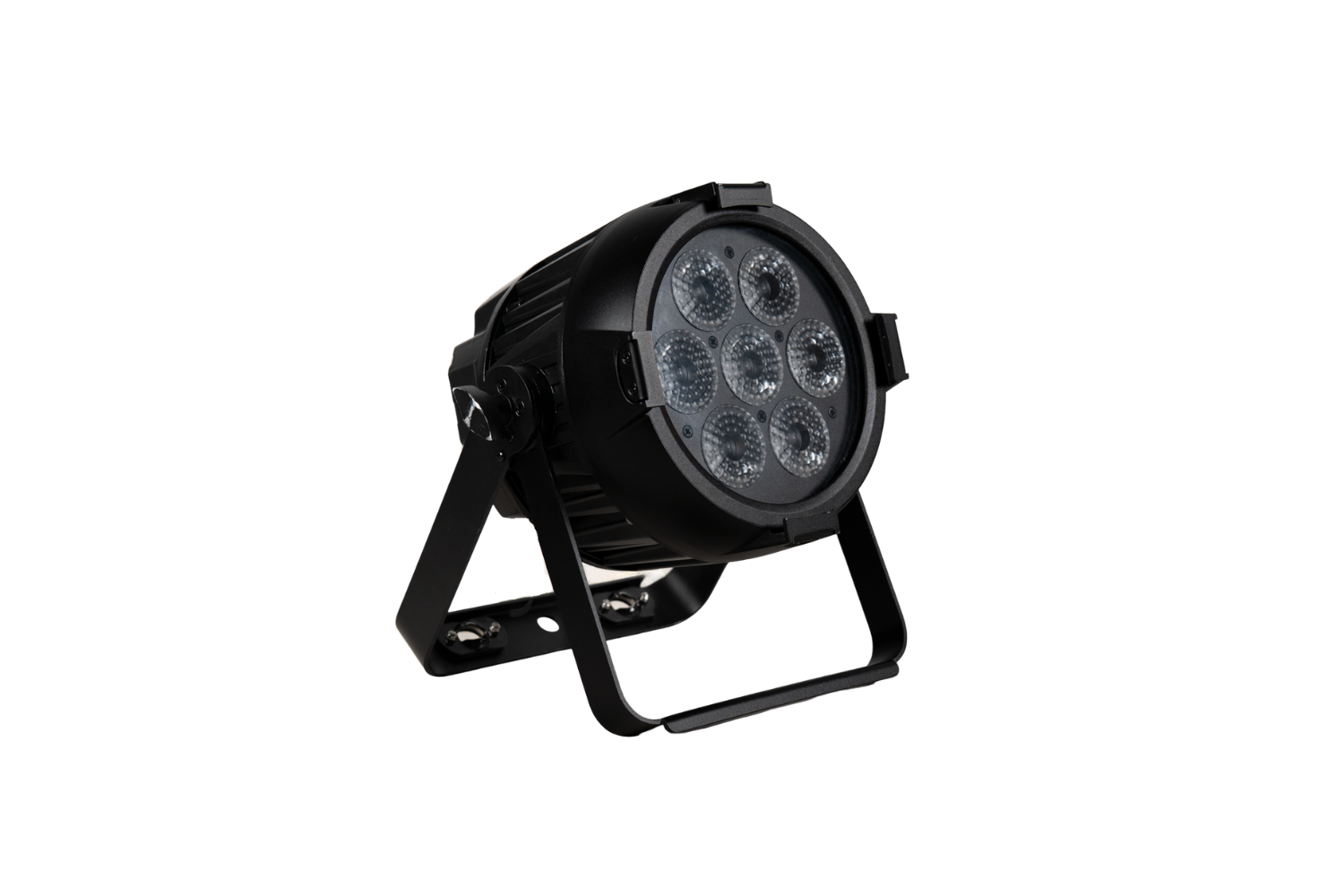

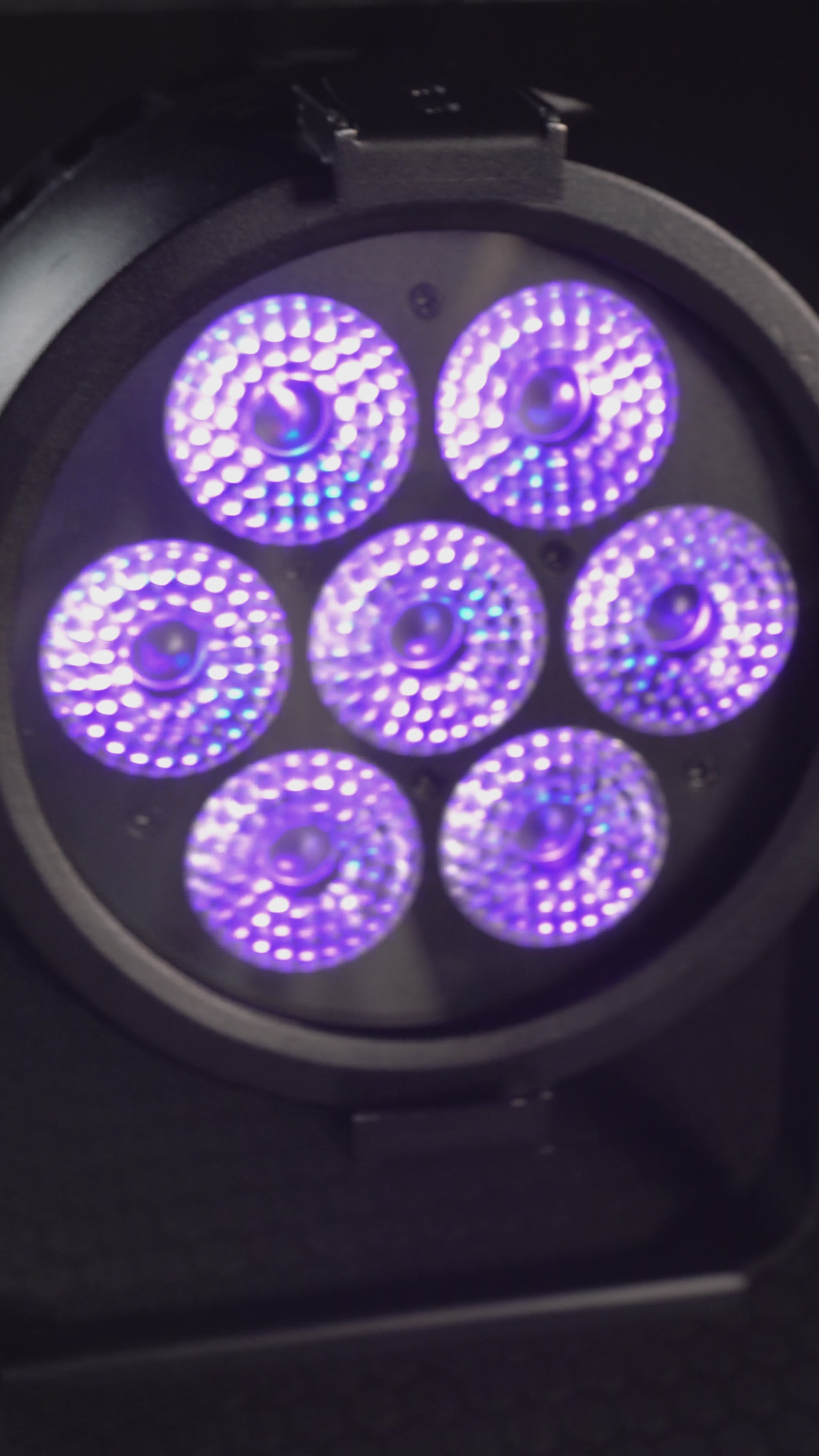

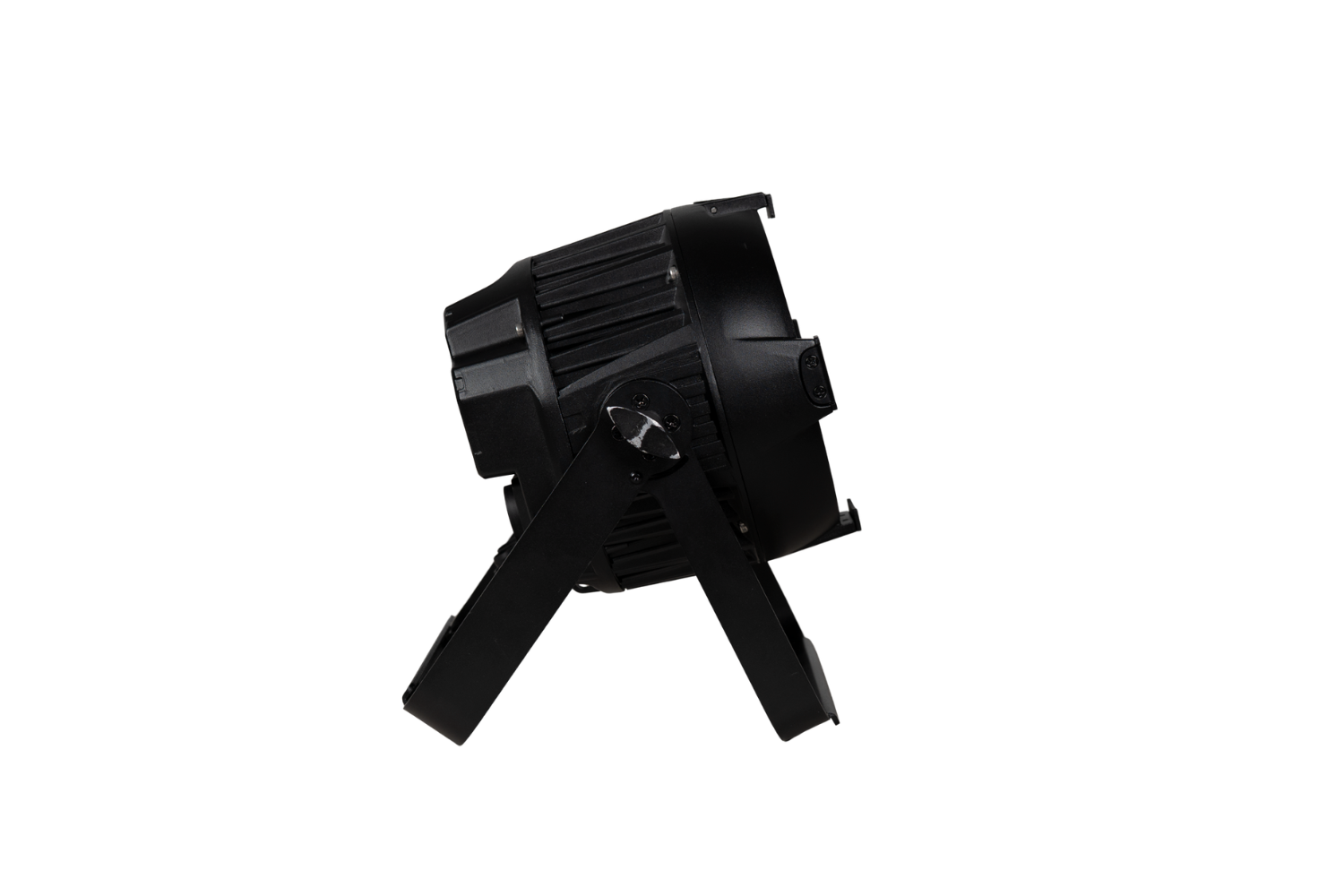

The Event Lighting PAR7X20H-IP a powerhouse of light and versatility. With 7 x 20W RGBWA+UV 6 in 1 LEDs, it delivers stunning colour combinations and ultraviolet effects. Enjoy customisable beam angles with 22° as standard and options of 8°, 14° and 45° providing the perfect spread for any application. Experience an astounding 12,700 lux output at 2.0 meters, ensuring vibrant illumination in any `setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

The PAR7X20H-IP comes with Tru1 in/out, 5 pin DMX in/out, on-board WDMX and includes an omega bracket for quick and easy installation.

Photometrics

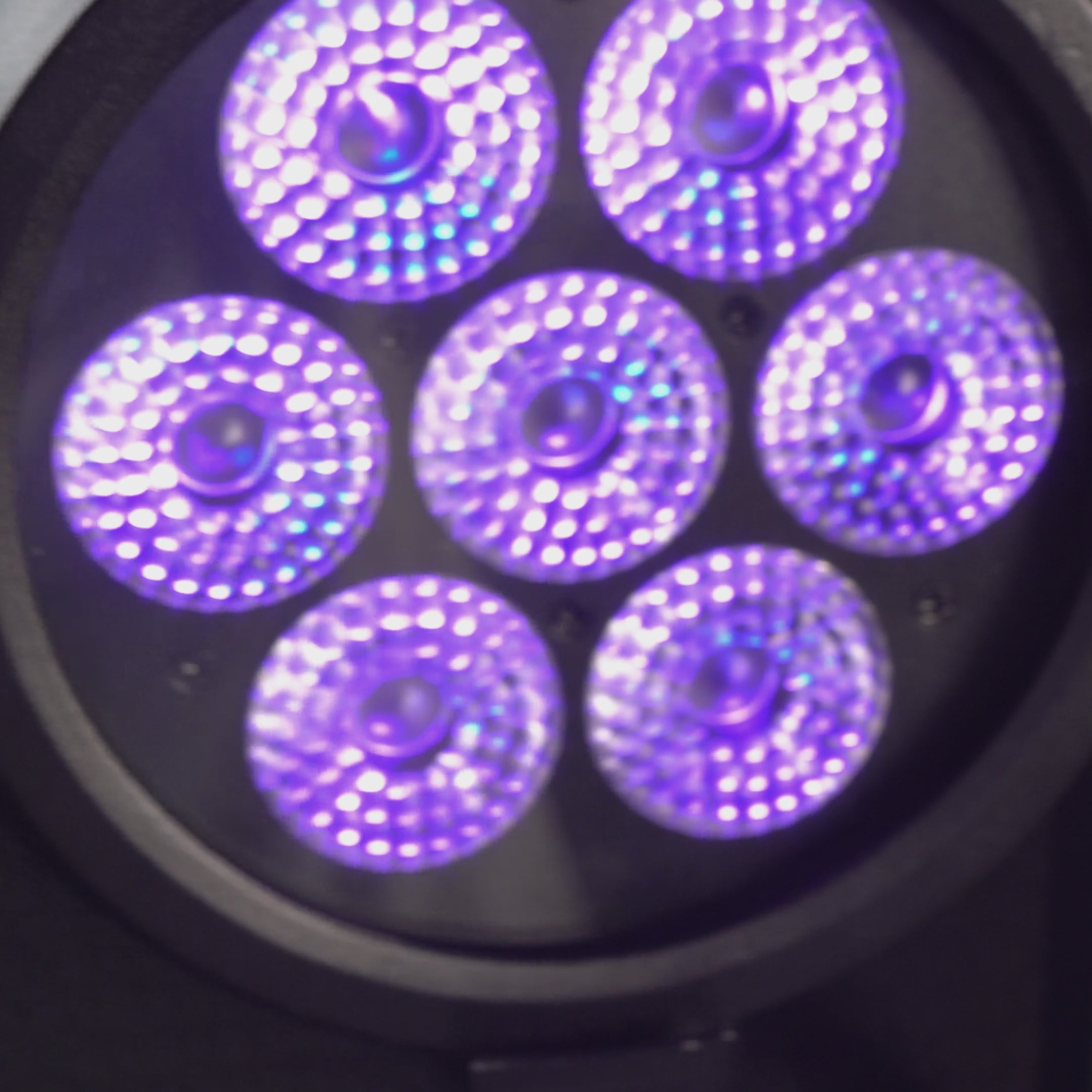

• Light Source: 7 x 20W RGBWA+UV 6 in 1 LED
• Beam Angle: 22° (Optional: 8°, 15°, 45°)
• Output: 12,700 lux @ 2.0m full on
• PWM: 1,240Hz
• LED Life: 50,000 hours

Effects

• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltage: 100V~240V AC, 50/60Hz, 250W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, WDMX, auto run, sound active, master/slave, manual colour control, static colour control
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14

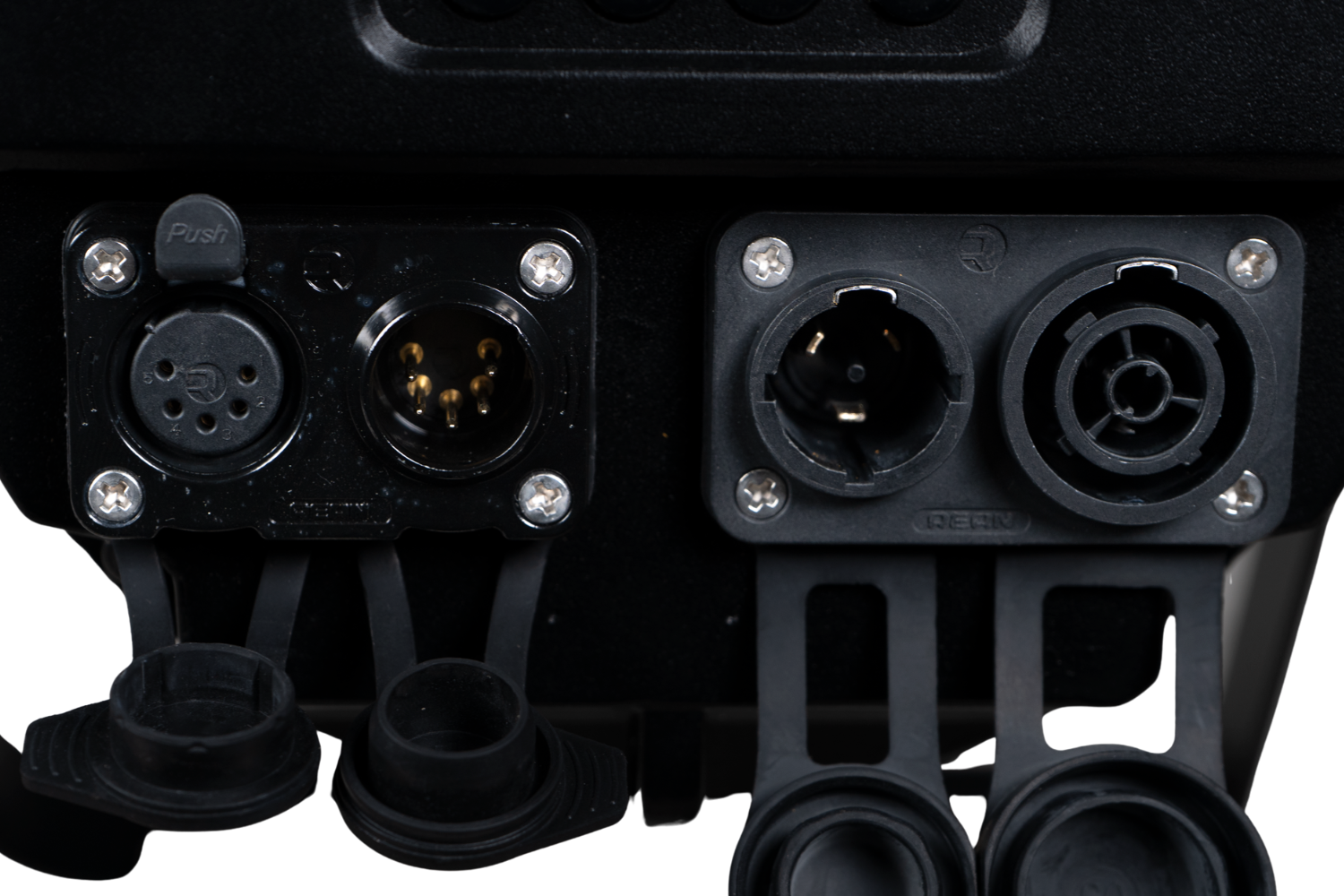

• DMX Interface: 5-pin XLR in/out

Housing

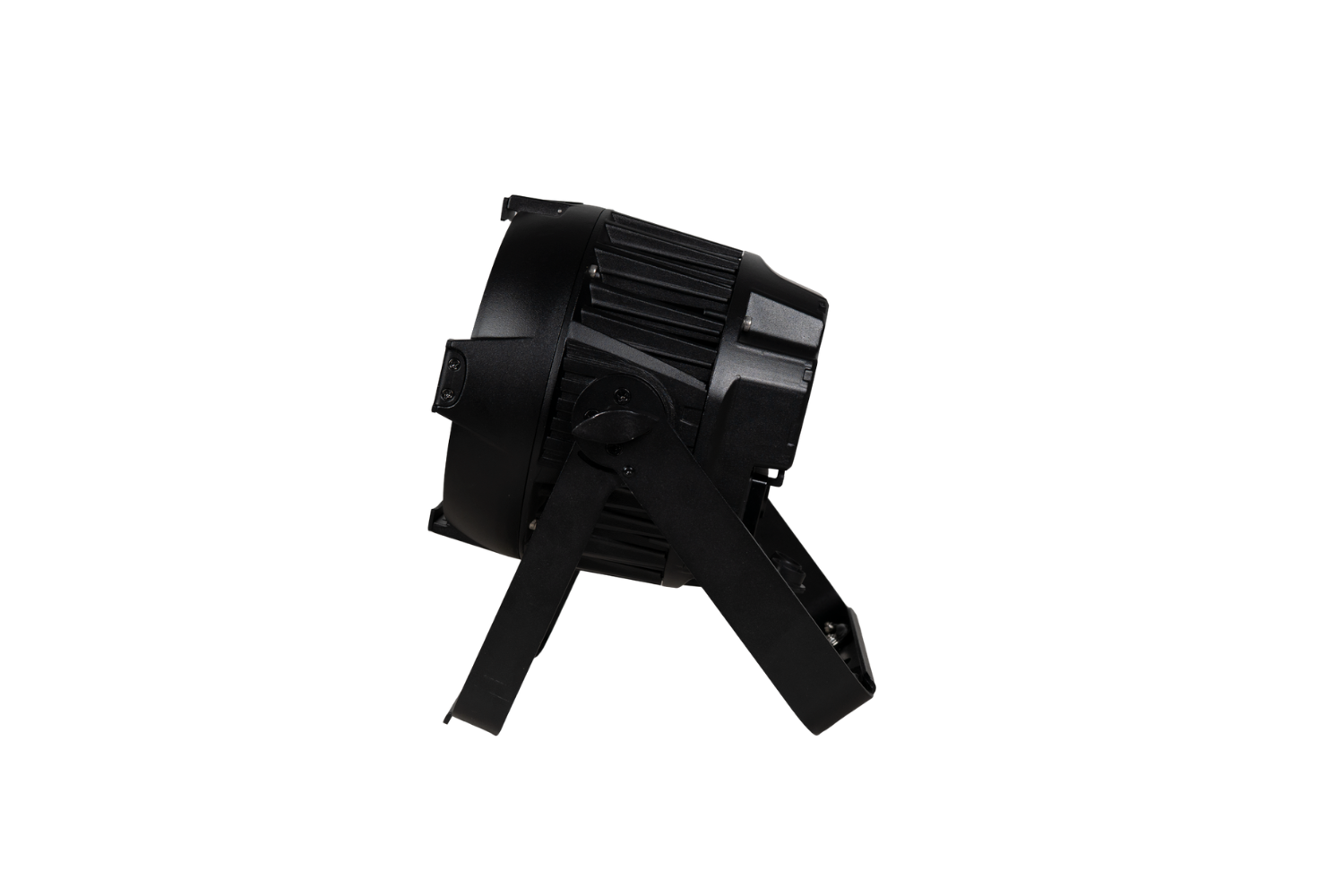

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling
• IP Rating: IP65
• Dimension: 299 x 217 x 333mm / 11.8" x 8.5" x 13.1"

• Net Weight: 6.5 kg / 14.3 lbs
• Rigging: 1 x Omega bracket with 1/4 turn quick locks

Download user manual

Warranty: 3 years
