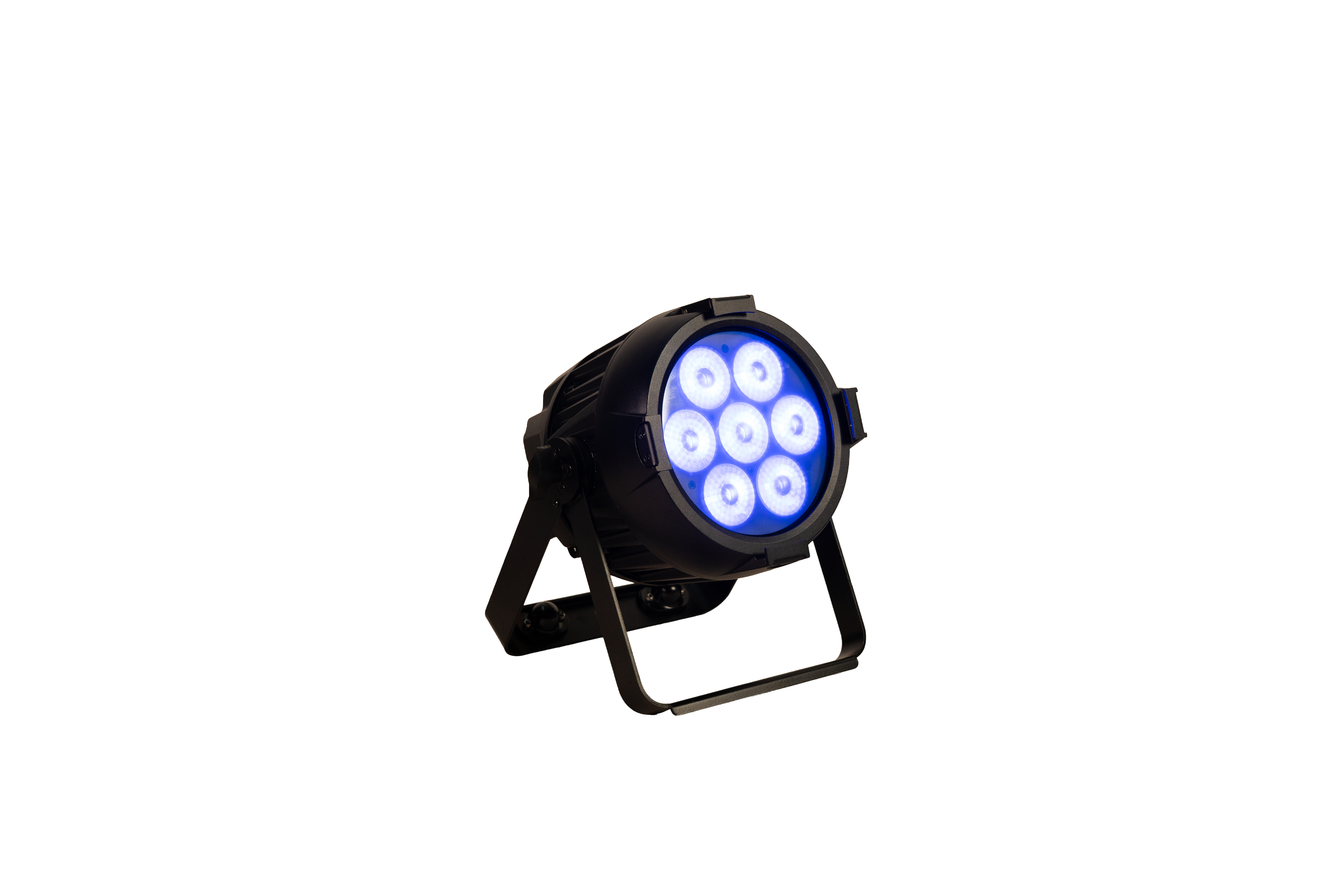

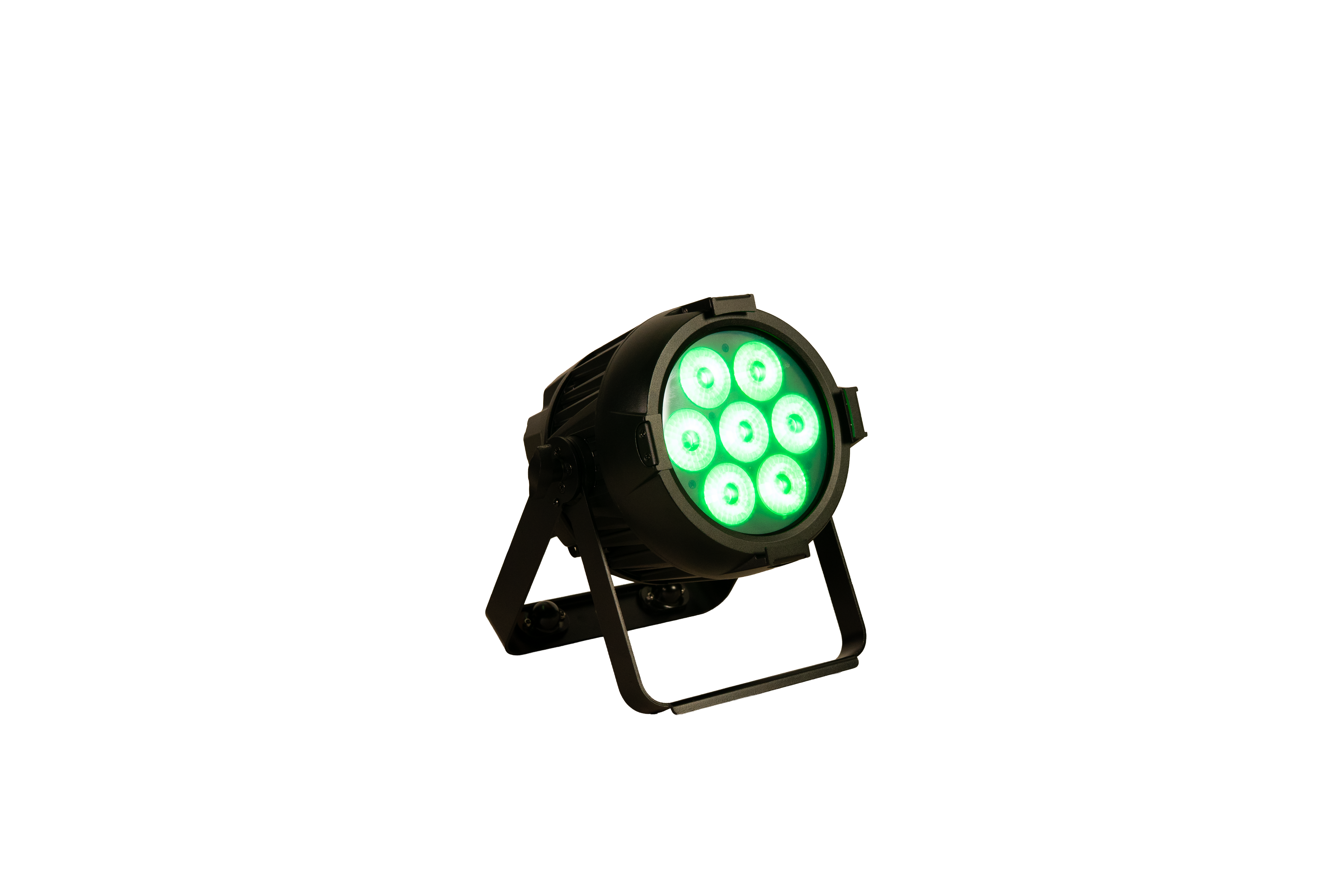

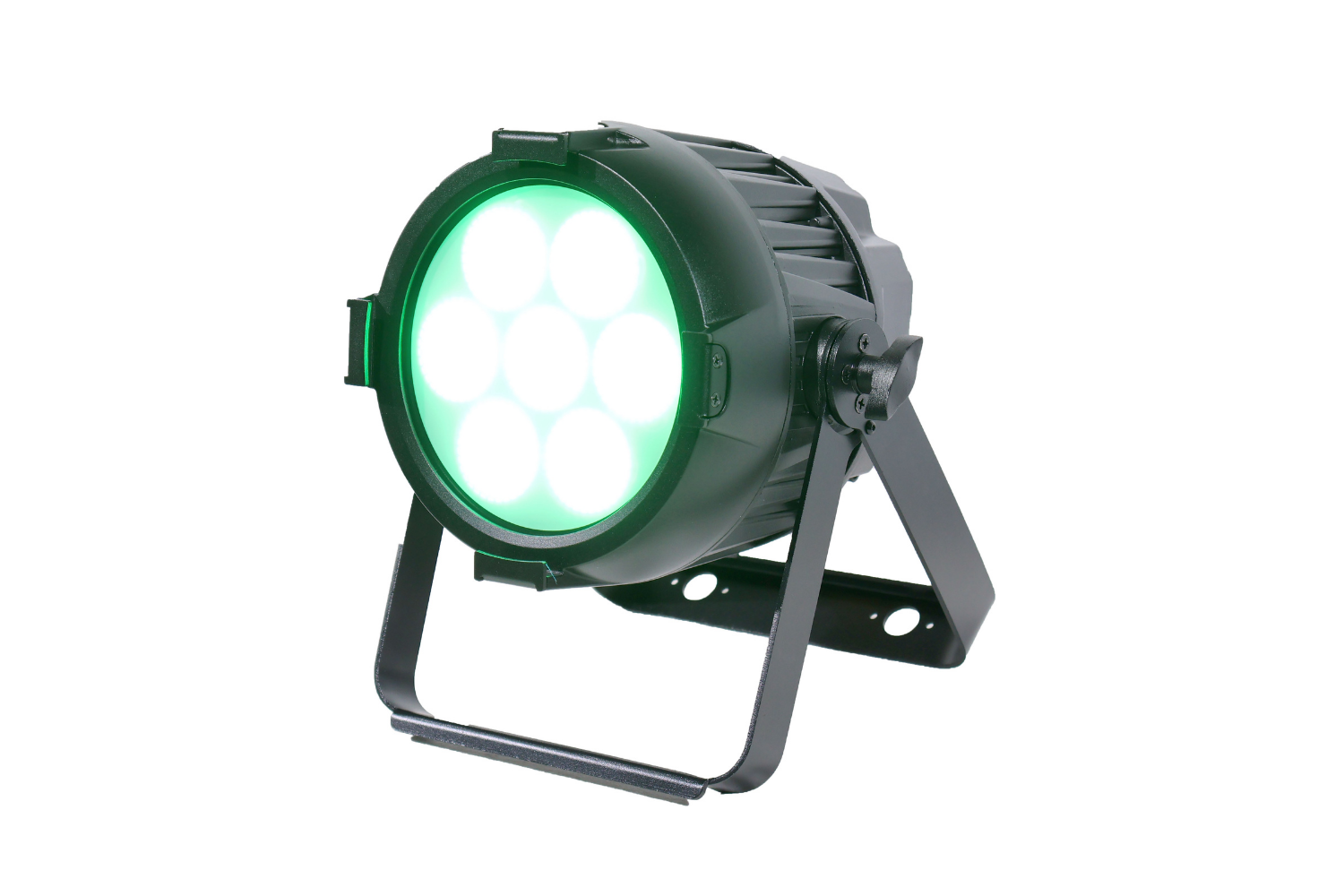

The Event Lighting PARF7X20H-IP a powerhouse of light and versatility. With 7 x 20W RGBWA+UV 6 in 1 LEDs, it delivers stunning colour combinations and ultraviolet effects. Instantly change the effect by activating the electronic frost, broadening the beam angle and delivering a softer wash of light.

Enjoy customisable beam angles with 15° as standard and options of 8°, 10° and 45° providing the perfect spread for any application. Experience an astounding 12,700 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

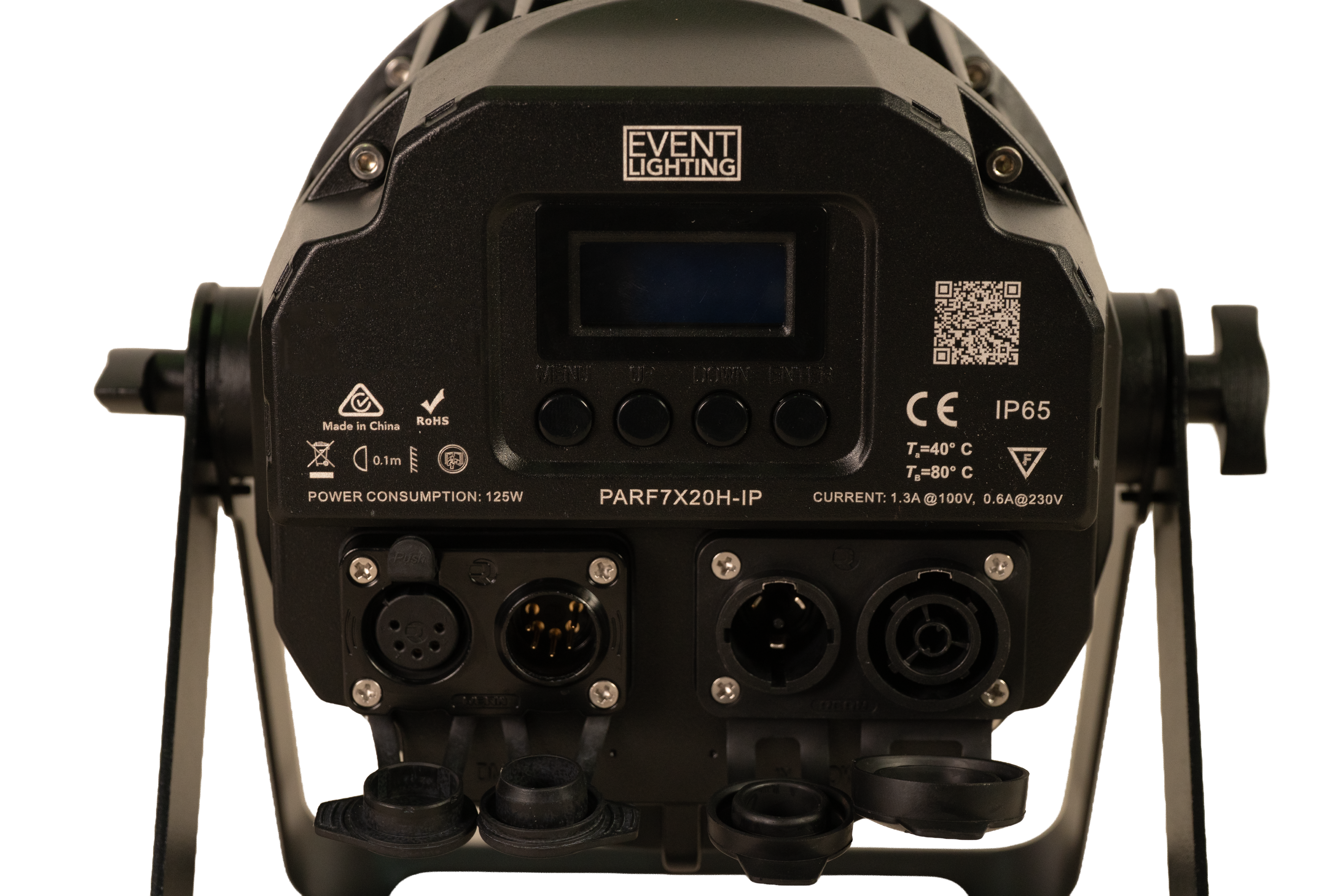

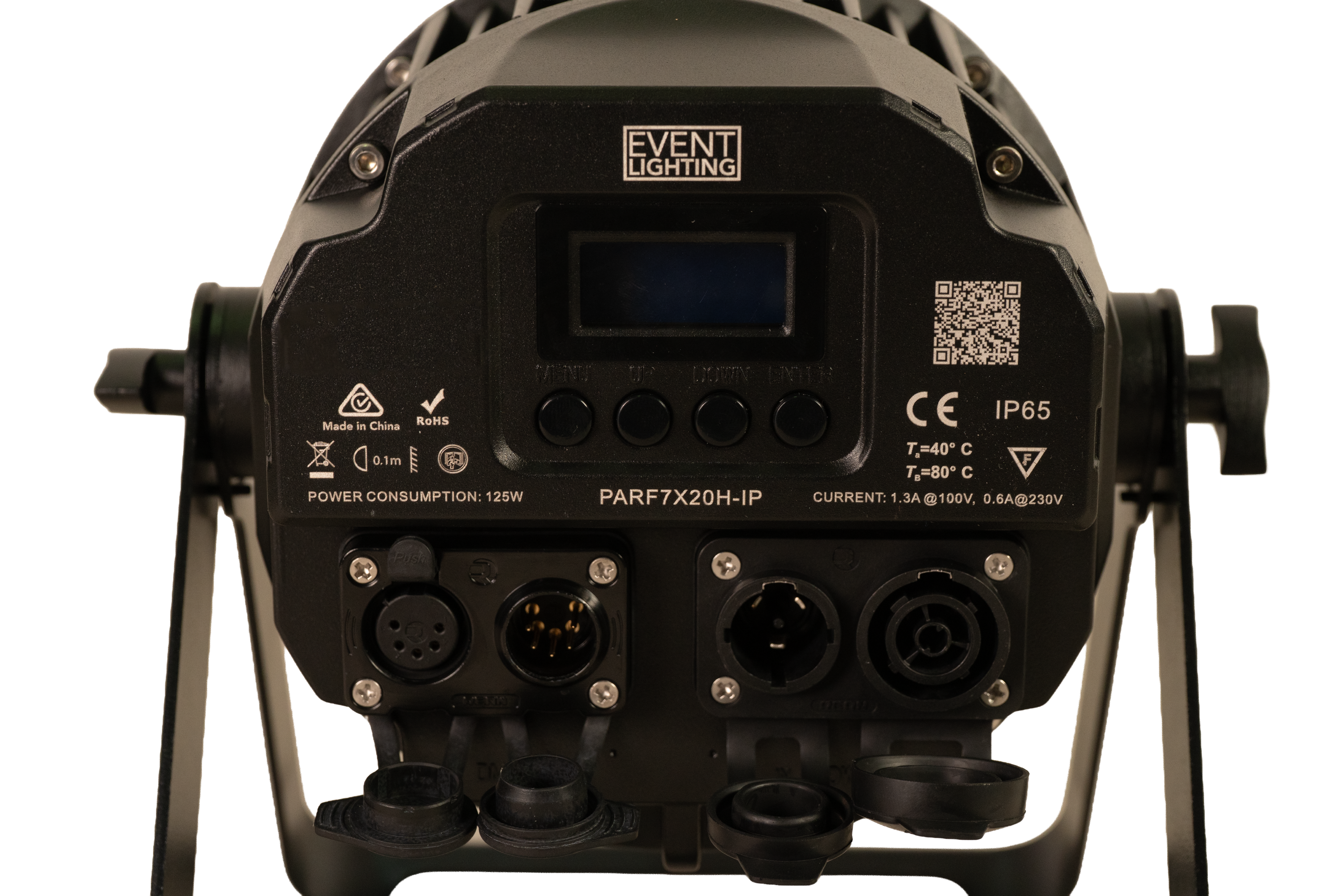

The PARF7X20H-IP comes with Tru1 in/out, 5 pin DMX in/out, on-board WDMX and includes an omega bracket for quick and easy installation.

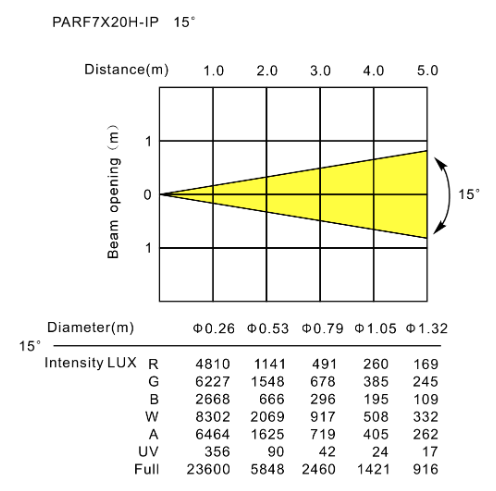

Photometrics

• Light Source: 7 x 20W RGBWA+UV 6 in 1 LED
• Lens Angle: 15° (Optional: 8°, 10° , 45°)
• Beam Angle:
  • Frost 0%: 18°
  • Frost 100%: 46°
• Output: 5,848 Lux @ 2.0m / 6'6" (Full On / Frost 0%)
• PWM: 1,240Hz
• LED Life: 50,000 hours

Effects

• Electronic Frost: Yes
• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltage: 100V~240V AC, 50/60Hz, 250W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, WDMX, auto run, sound active, master/slave, manual colour control, static colour control
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 3 / 4 / 5W / 5A / 7 / 9 / 13 / 15
• DMX Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling
• IP Rating: IP65
• Dimension: 234 x 163 x 262.5 mm / 9.2" x 6.4" x 10.3"

• Net Weight: 3.1 kg / 6.8 lbs
• Rigging: 1 x Omega bracket with 1/4 turn quick locks

Download user manual

Warranty: 3 years
