• Huge Class D power in a 1U rack
• 4 discrete amplification channels
• Internal DSP and computer control
• Stable down to 2 Ω. Drive multiple speakers or line array elements
• FIR filtering with 512 taps
• 90 V to 260 V AC working voltage
• Ethernet Network Connectors x 2
• 70 V / 100 V compatible models

DP-2200F

• 2 channels
• 8 Ohm 2 x 2000 W
• 4 Ohm 2 x 3400 W
• 2 Ohm 2 x 4760 W
• 16 Ohm Bridged 1 x 4000 W
• 8 Ohm Bridged 1 x 6800 W
• 4 Ohm Bridged 1 x 9520 W
• 100 V Hi-Z 2 x 3400 W
• 70 V Hi-Z 2 x 2400 W

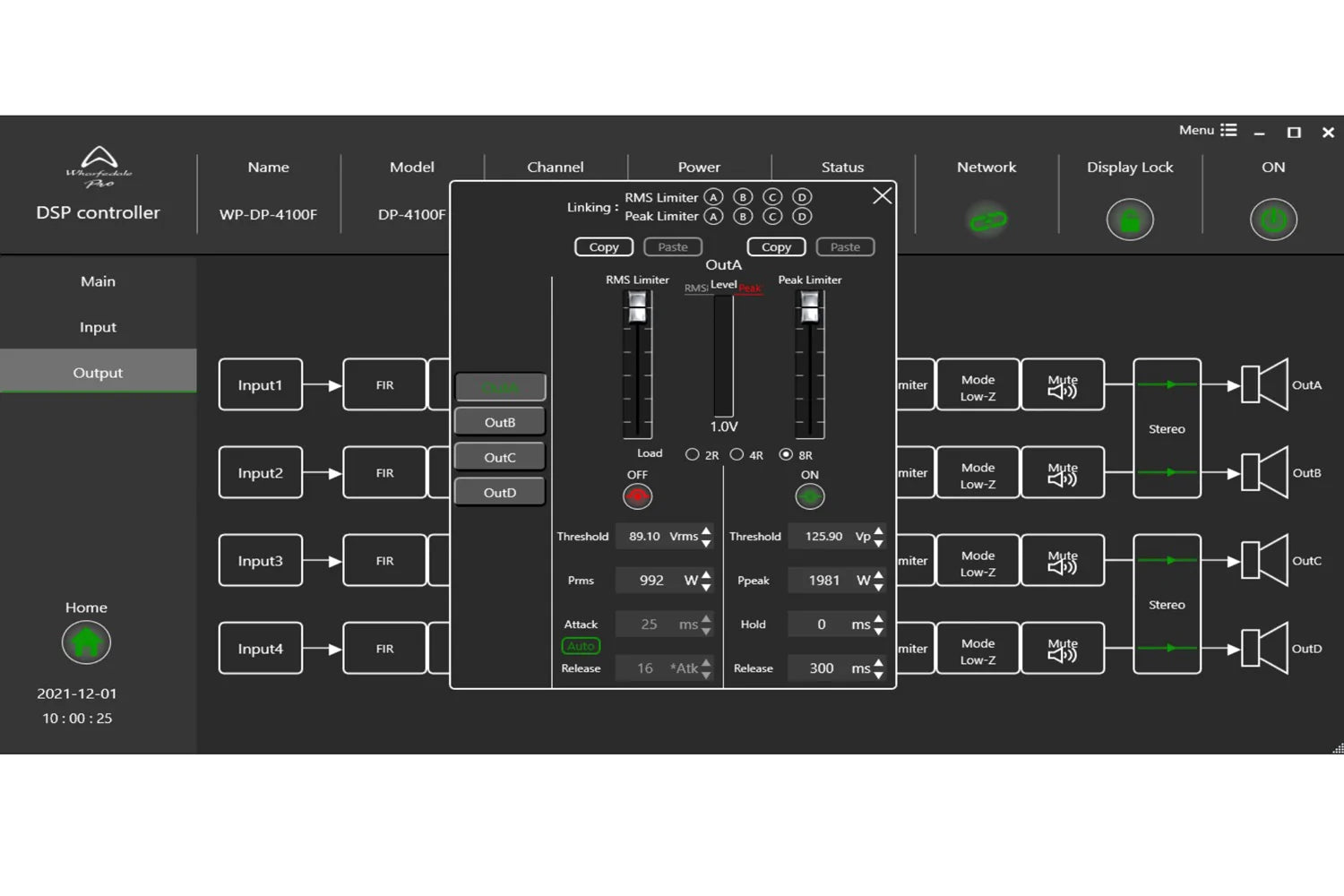

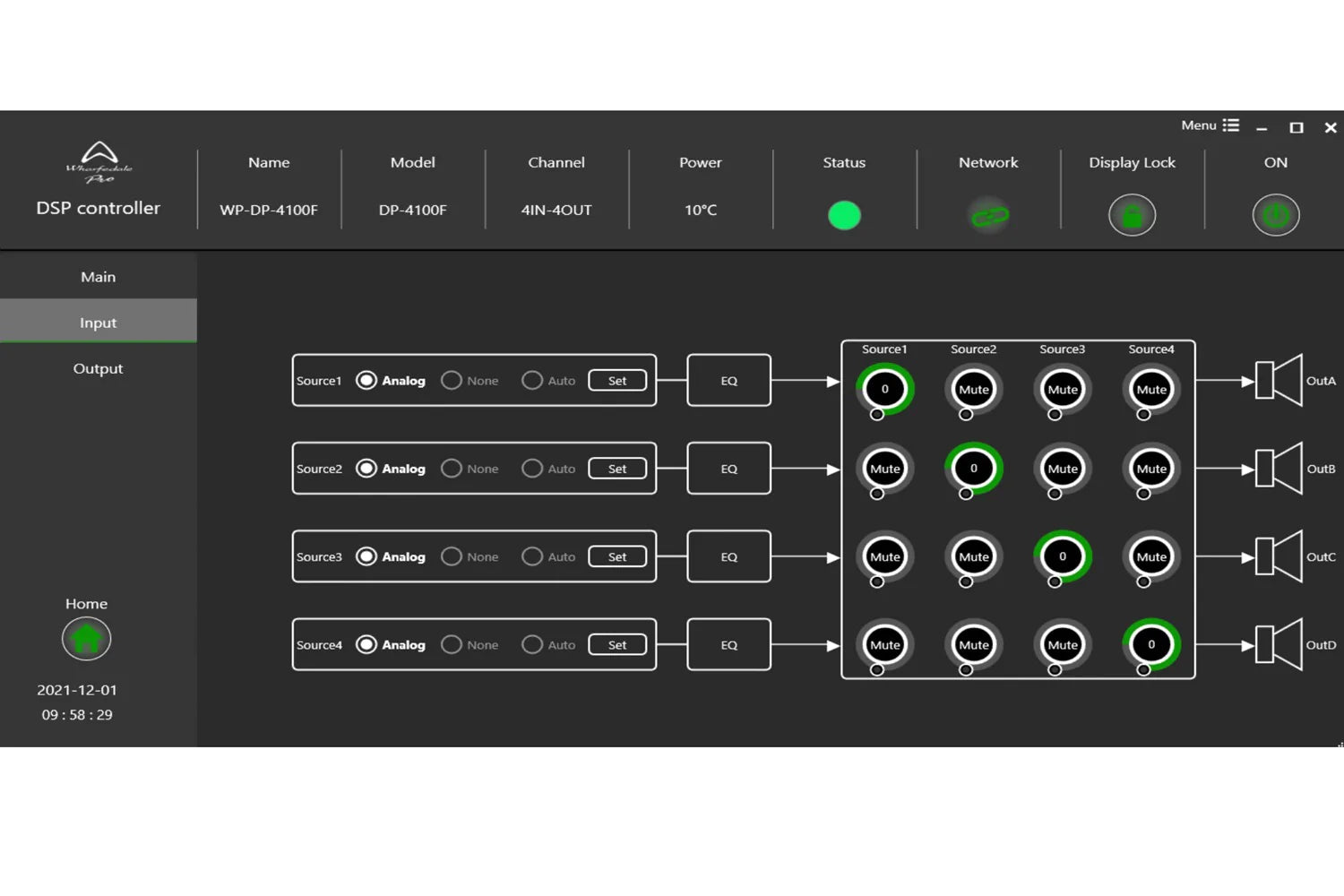

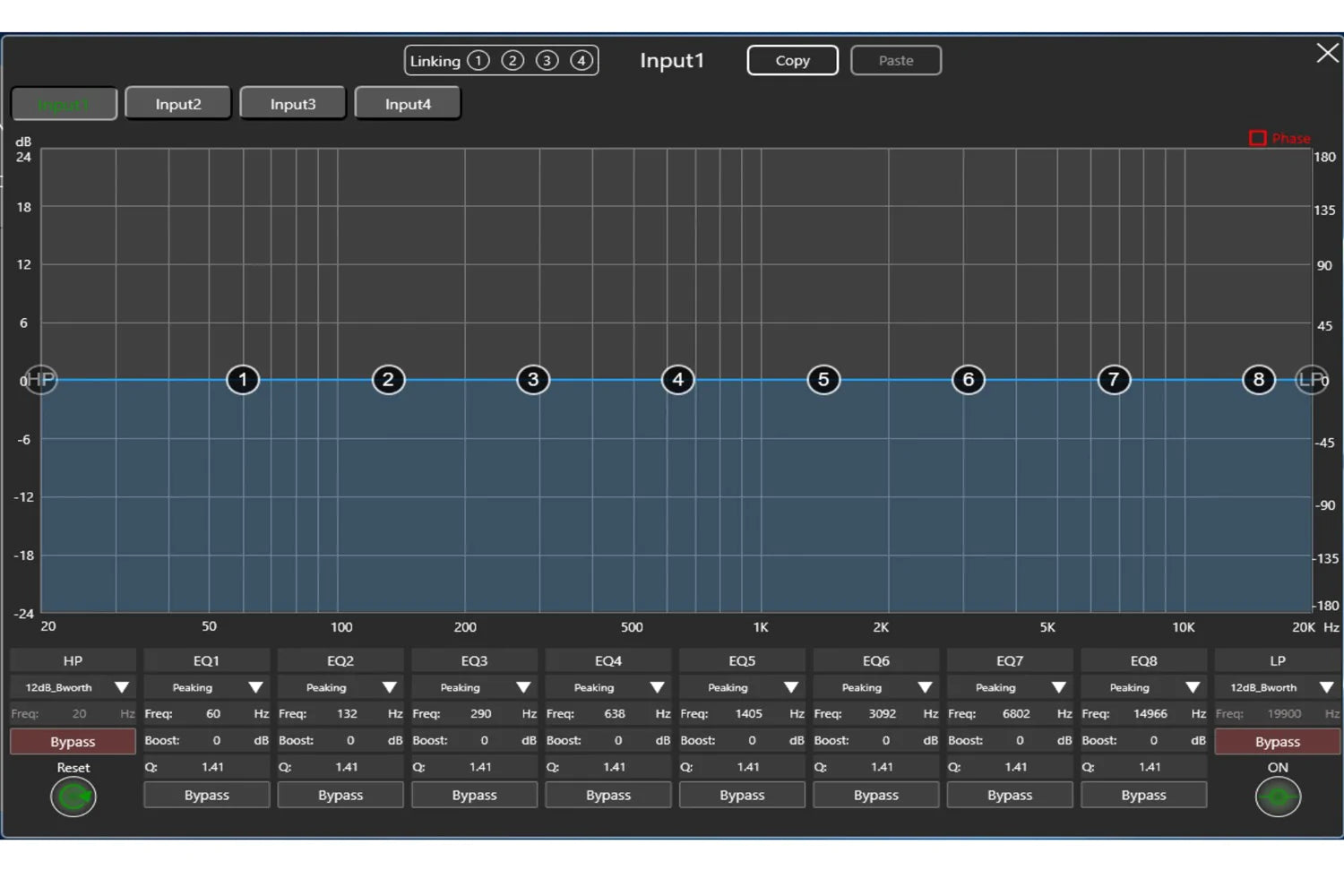

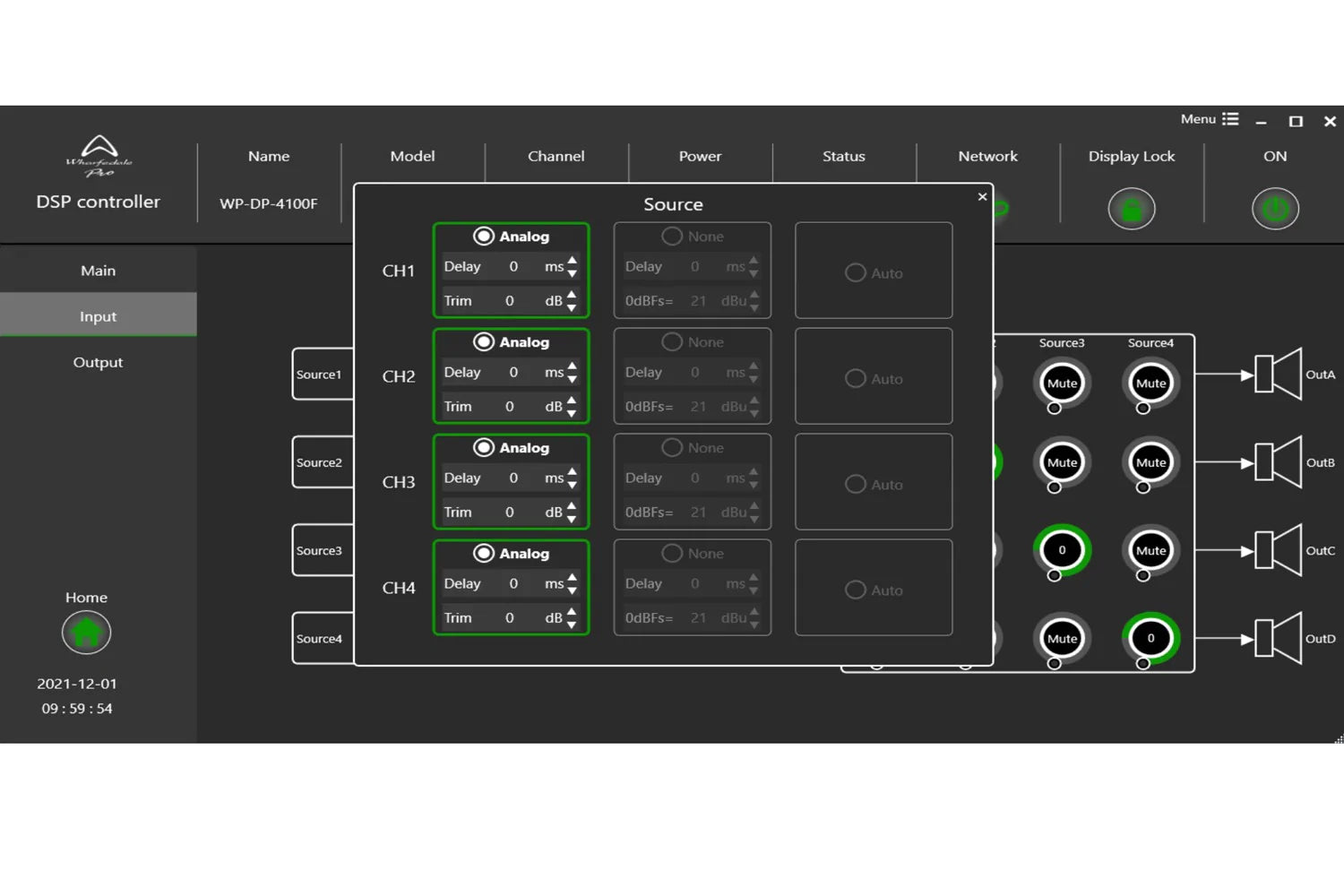

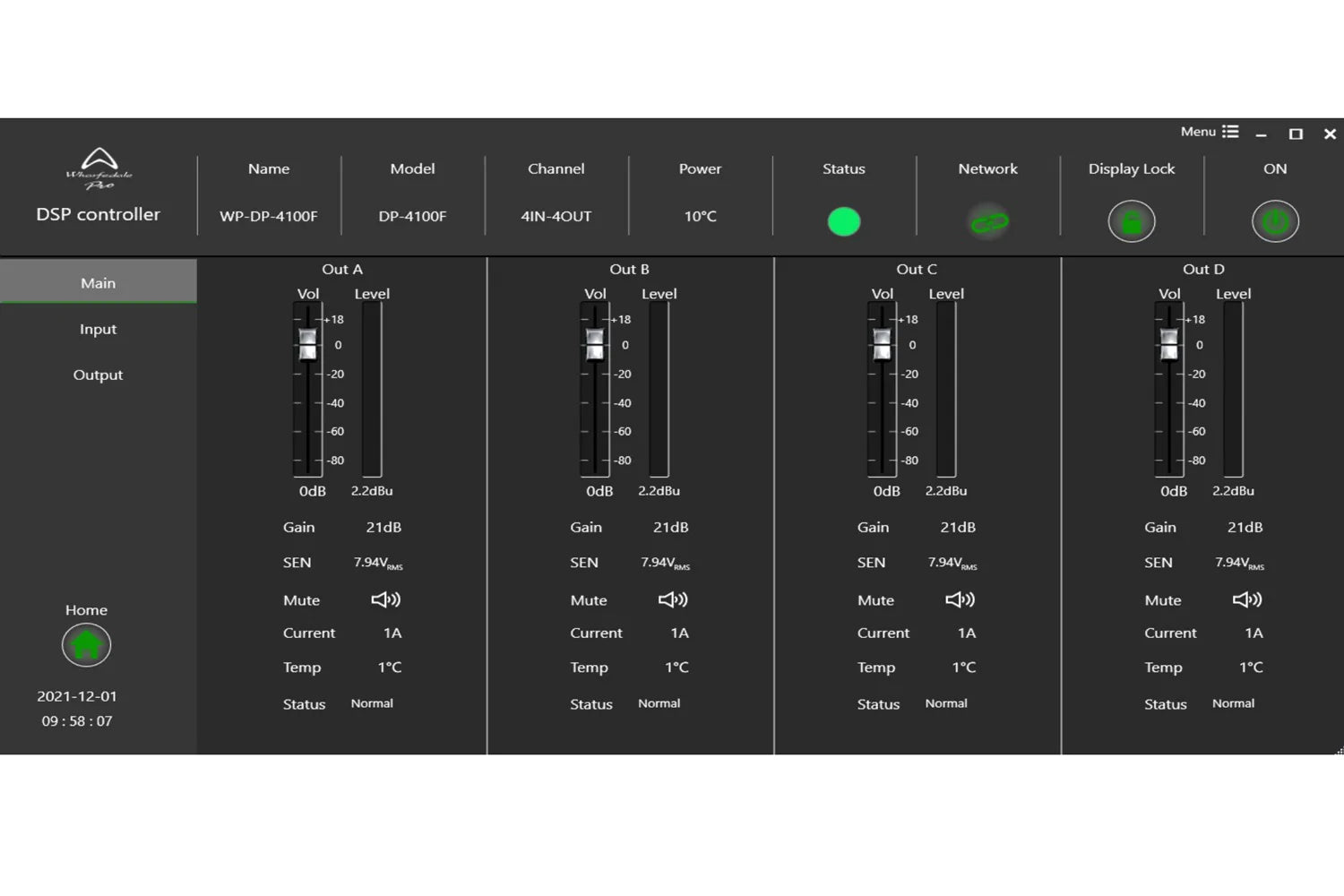

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the DP-F remotely.

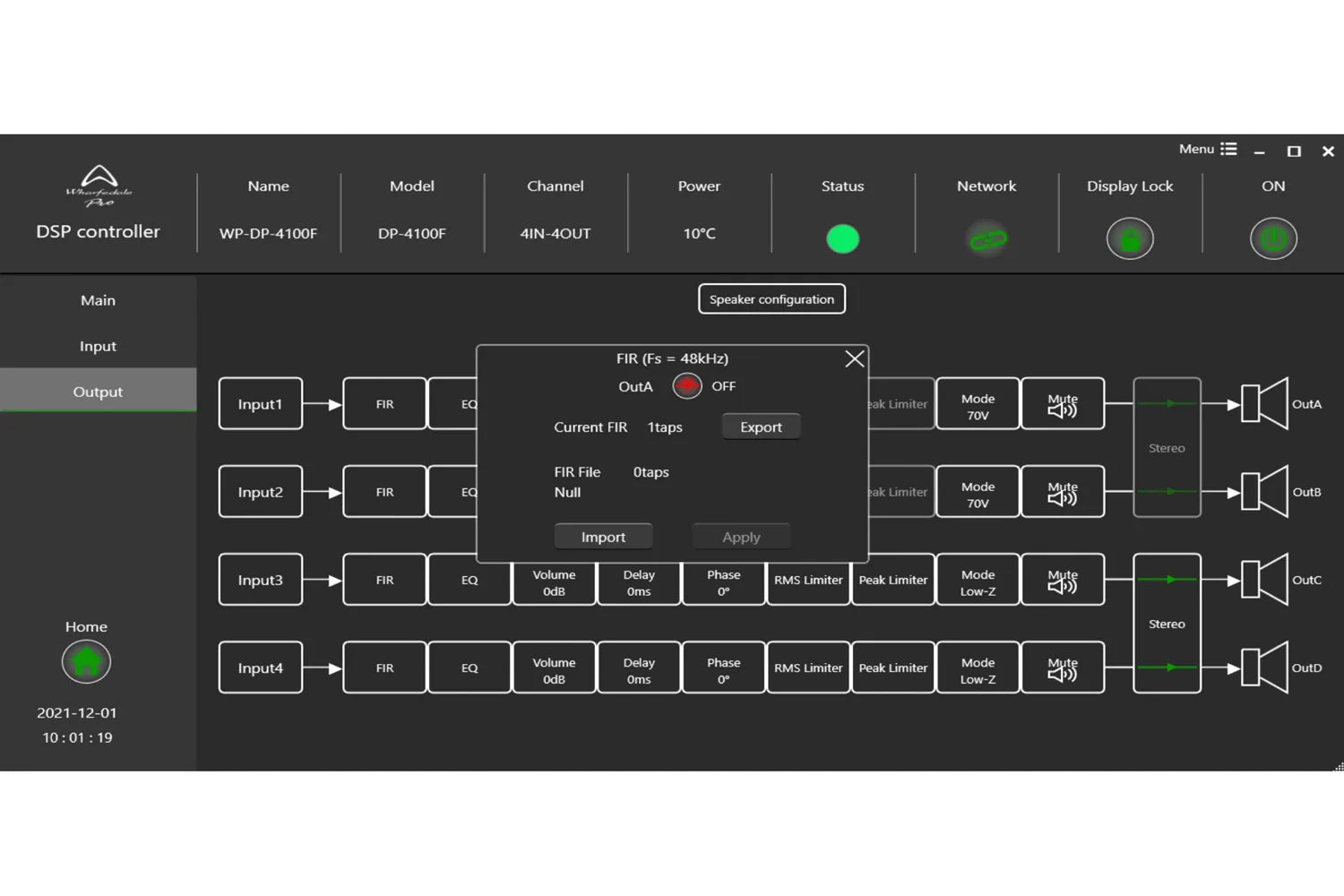

FIR FILTERS

FIR Filtering gives

• Independent control of magnitude and phase.
• More detailed equalisation.
• Optimization of frequency and power response.

STABLE DOWN TO 2 OHMS

Huge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

ETHERNET X 2

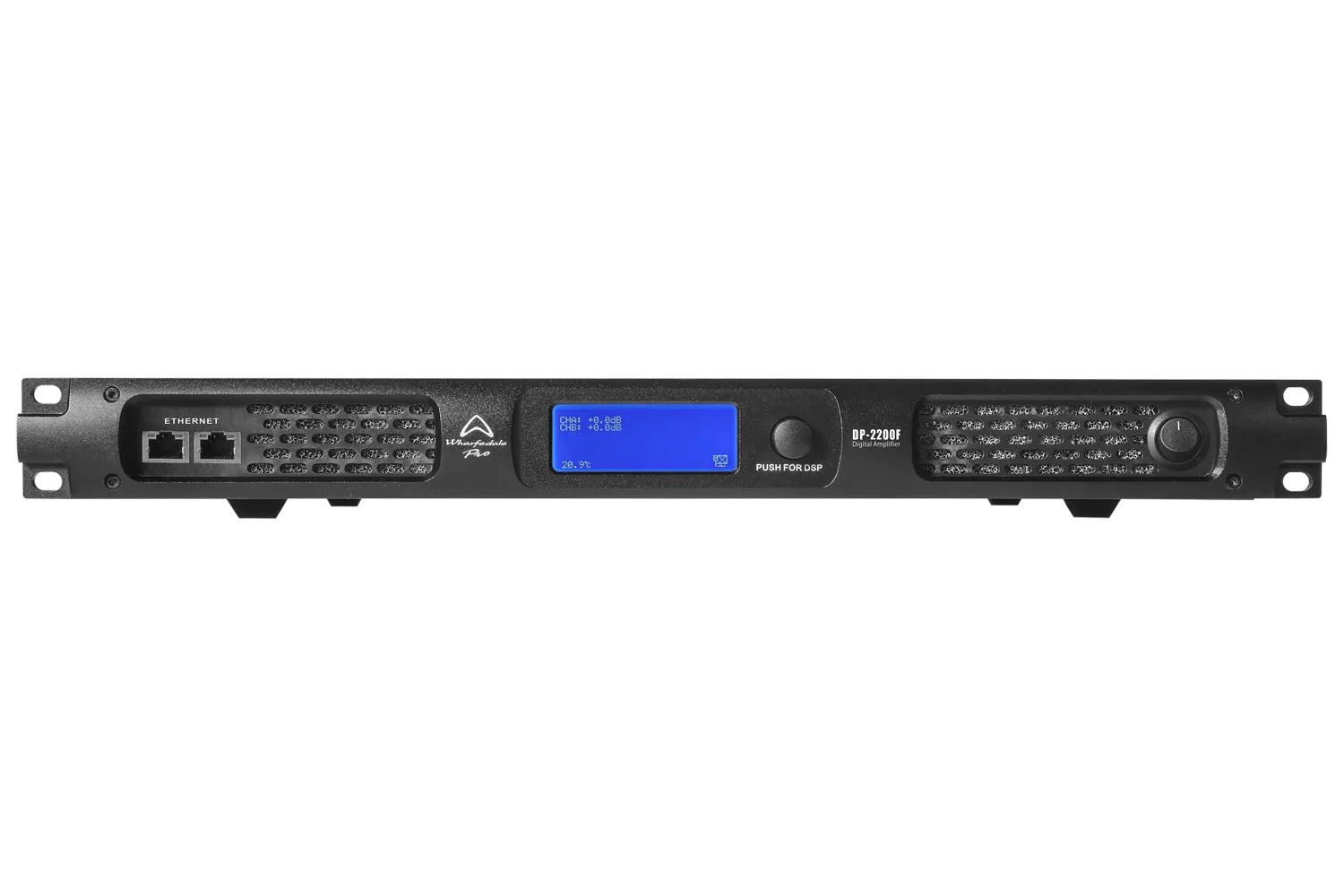

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.

NEED DANTE ™ ?

BUILD YOUR SYSTEM

DP-F and DP-N amps are made for your big line array!



With just 3 pcs of DP-4100F or DP-4100N……massive systems can be created.



SPECIFICATIONS



Model		DP-2200F
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz)	8 Ω / Stereo	2 x 2000 W
	4 Ω / Stereo	2 x 3400 W
	2 Ω / Stereo	2 x 4760 W
	16 Ω / Bridge	1 x 4000 W
	8 Ω / Bridge	1 x 6800 W
	4 Ω / Bridge	1 x 9520 W
	100 V Hi-Z	2 x 3400 W
	70 V Hi-Z	2 x 2400 W
Output RMS voltage		126.5 V
Maximum Input Level		8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz)		24 dB
Gain(Rated Power,1 KHz)		24 dB~42 dB
THD+N		Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk		≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response		Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance		20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor		≥1000(20 Hz-200 Hz,8 Ω)
SNR		≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power		90~260 VAC,50/60 Hz
Protection		Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
Size(W×H×D)		483 x 45 x 376 mm
Net Weight		9.3 kg
