Event Lighting

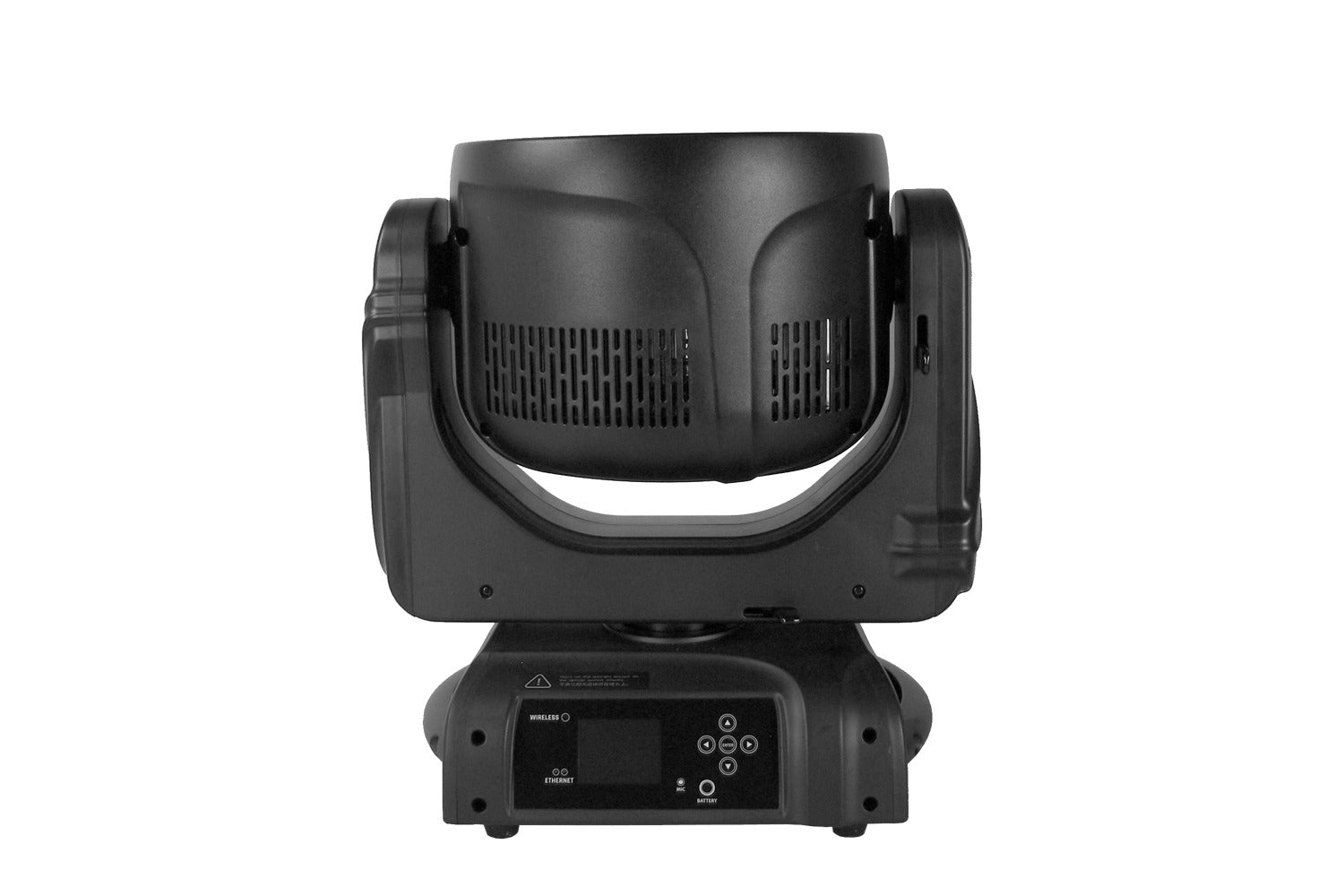

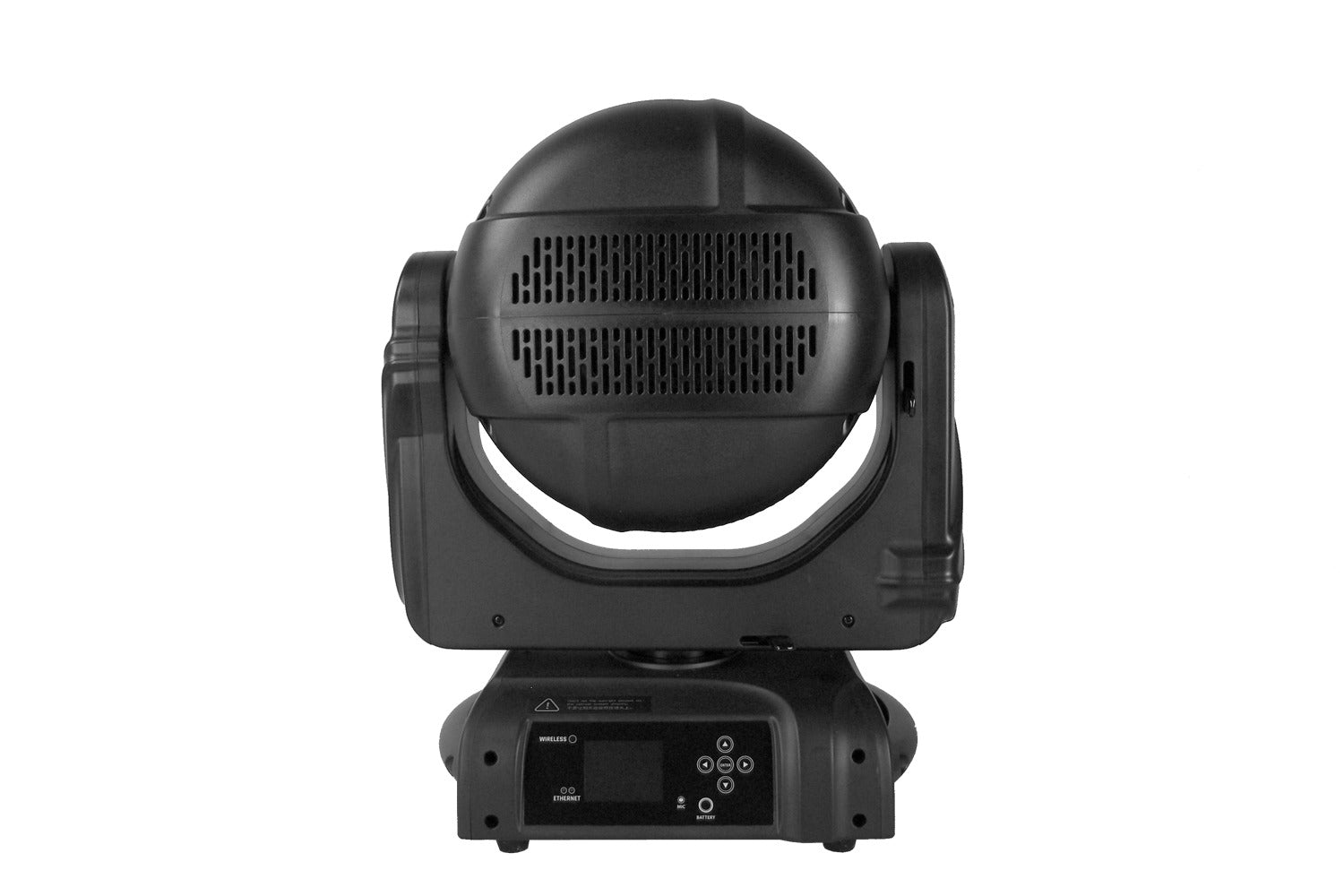

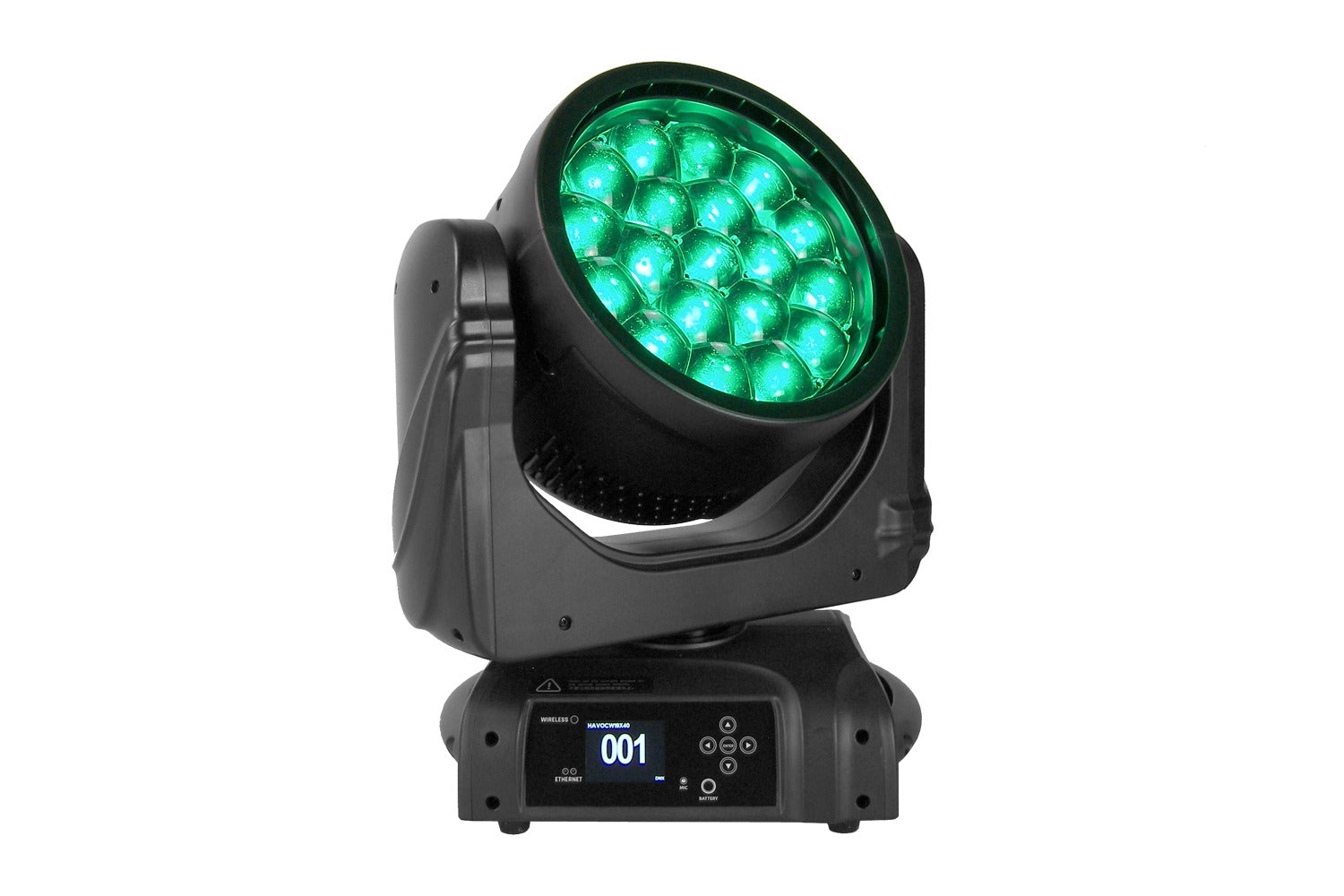

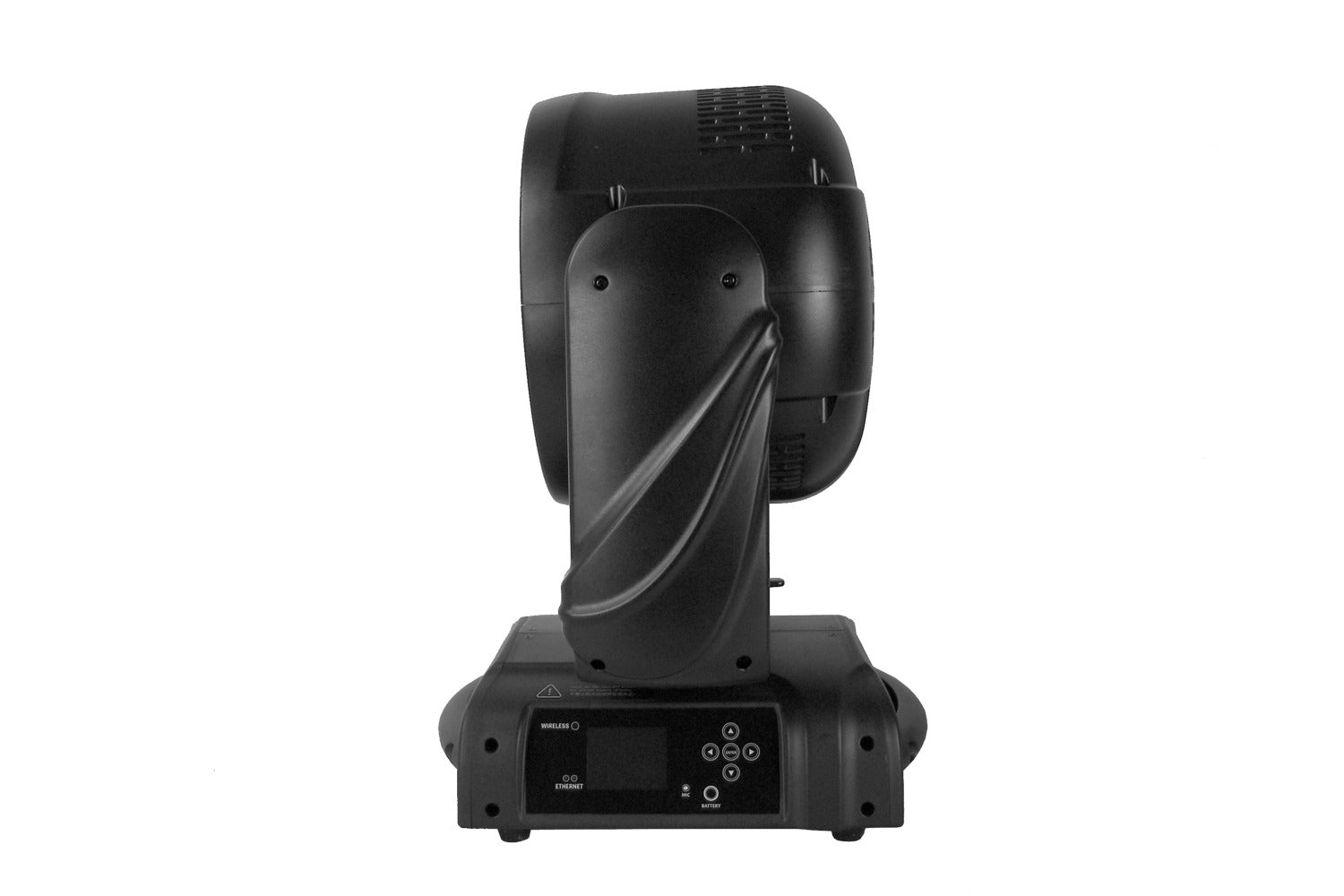

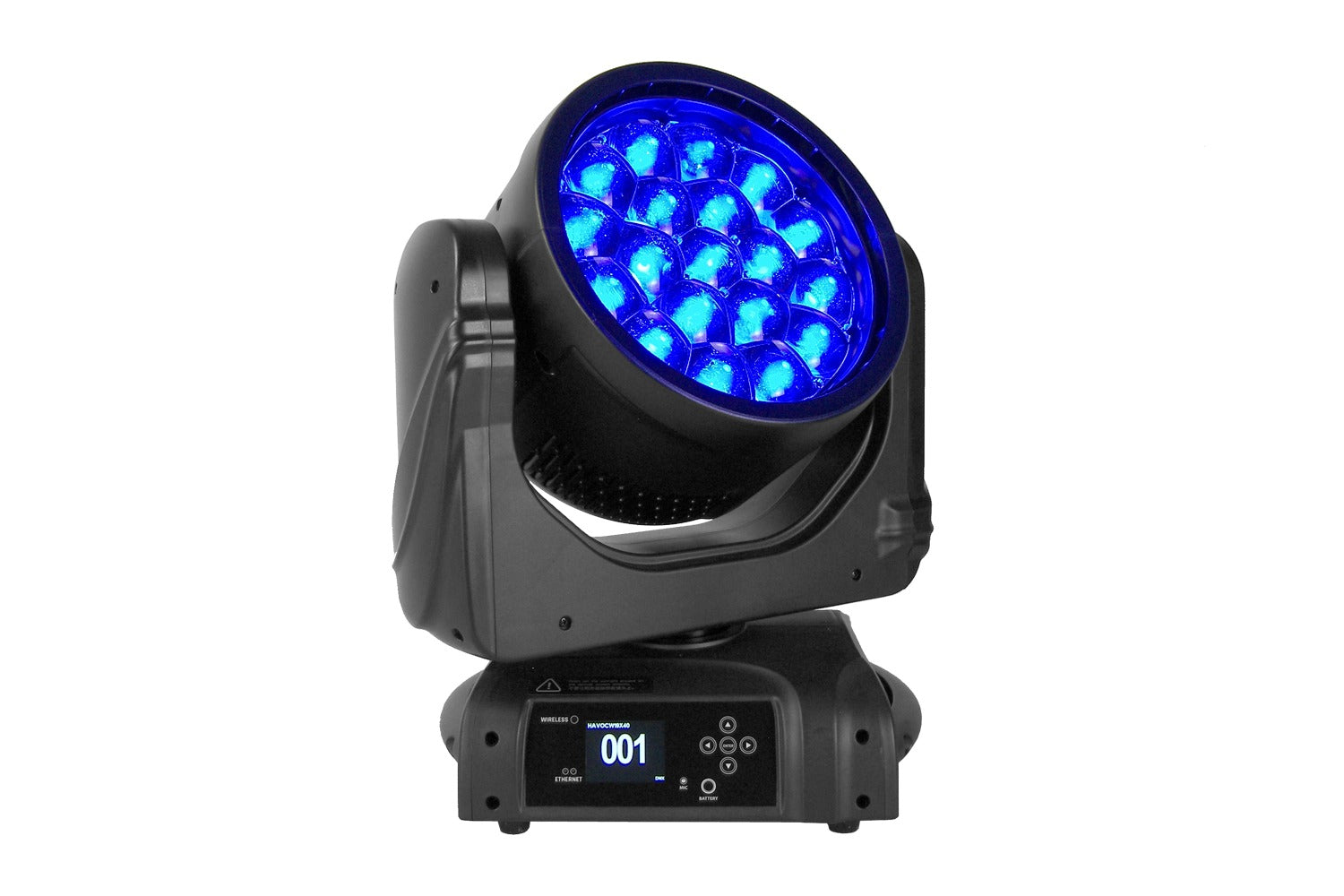

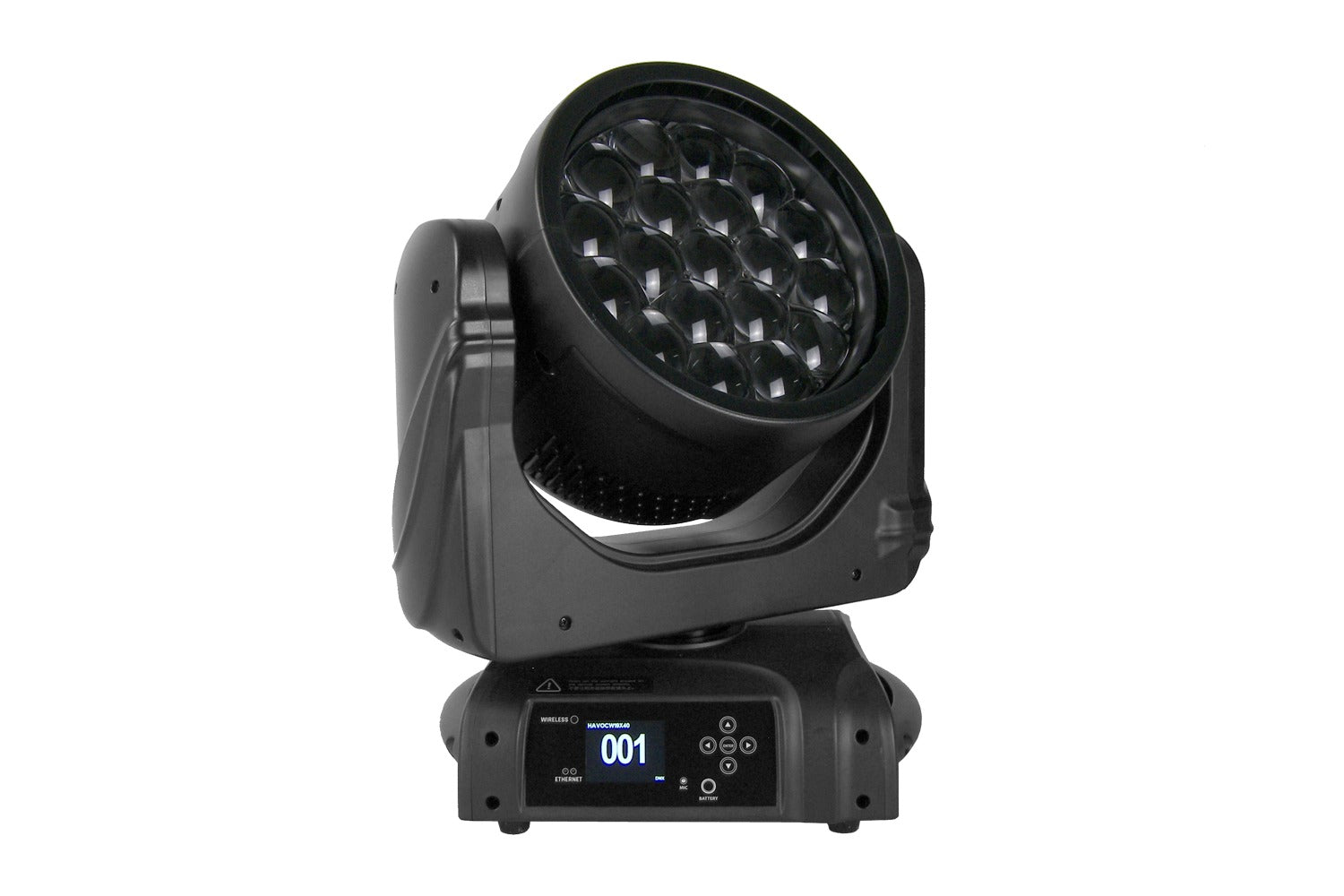

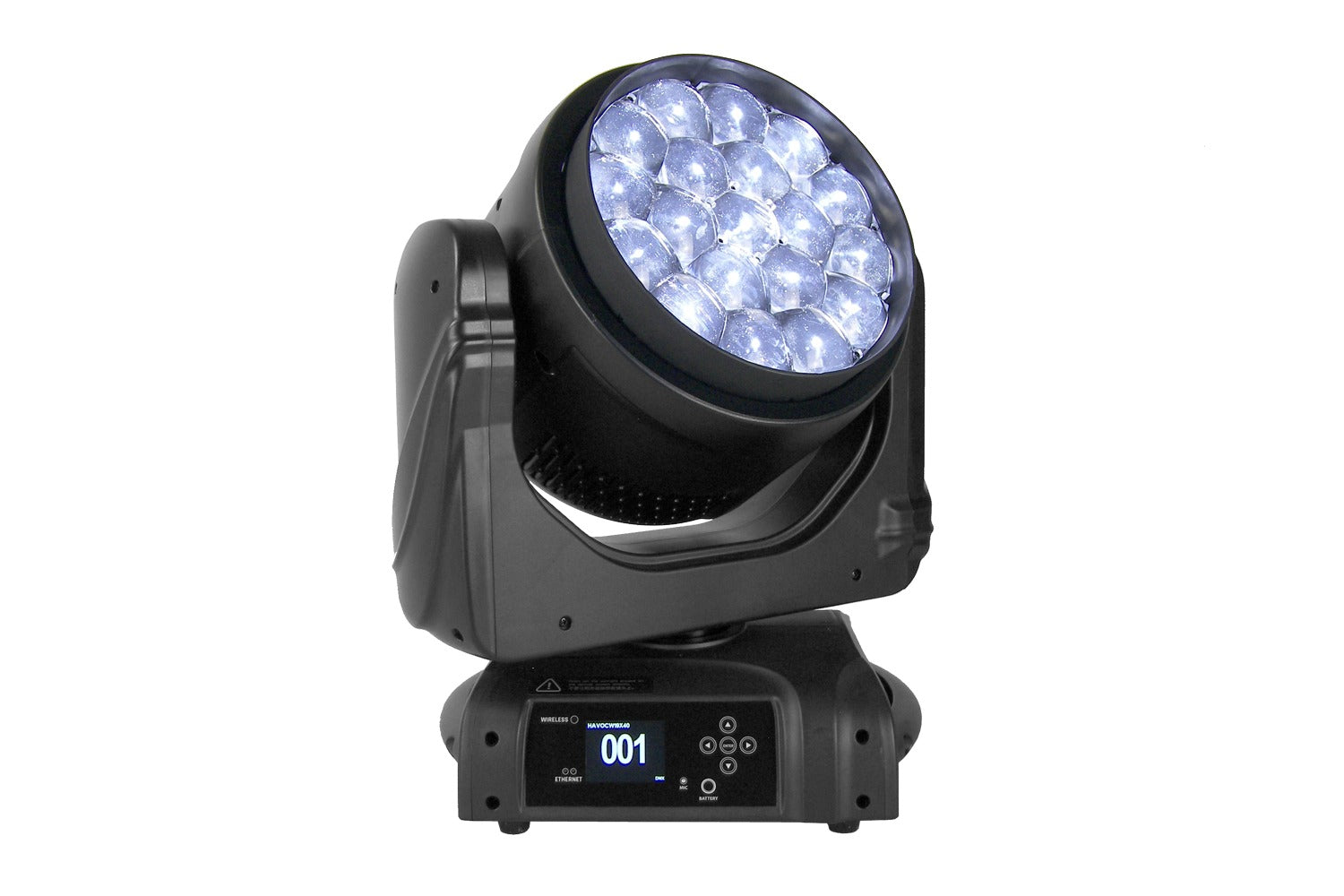

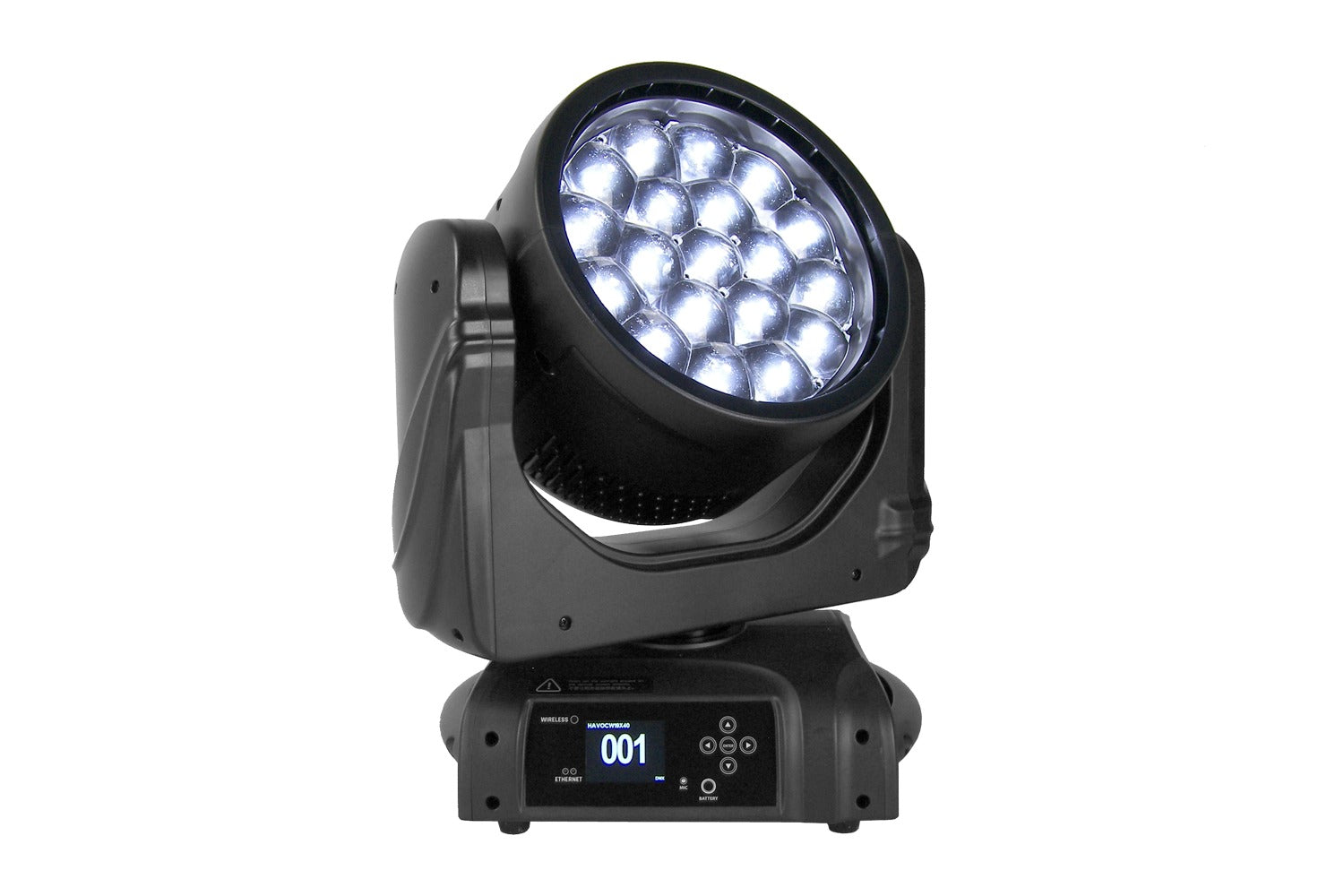

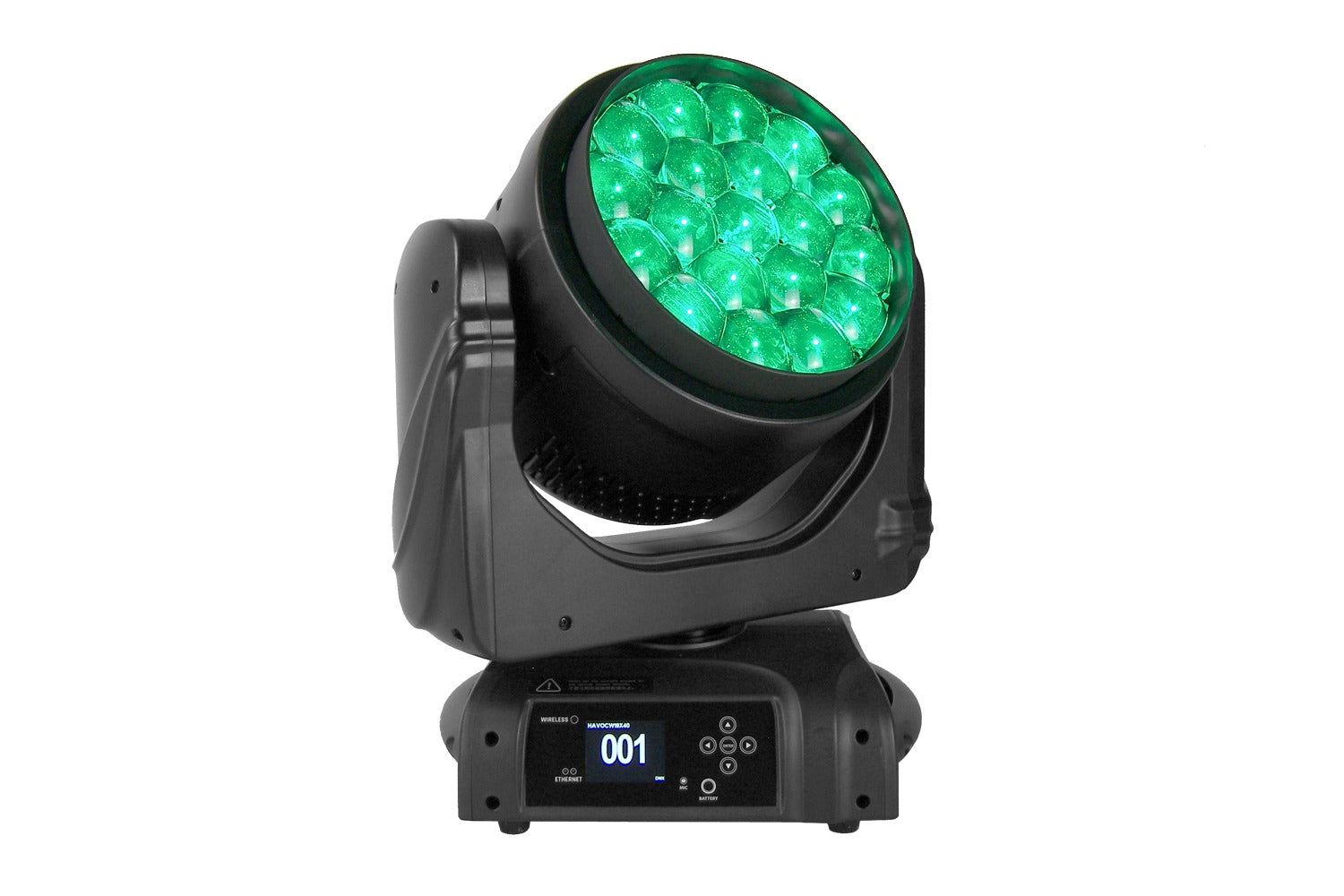

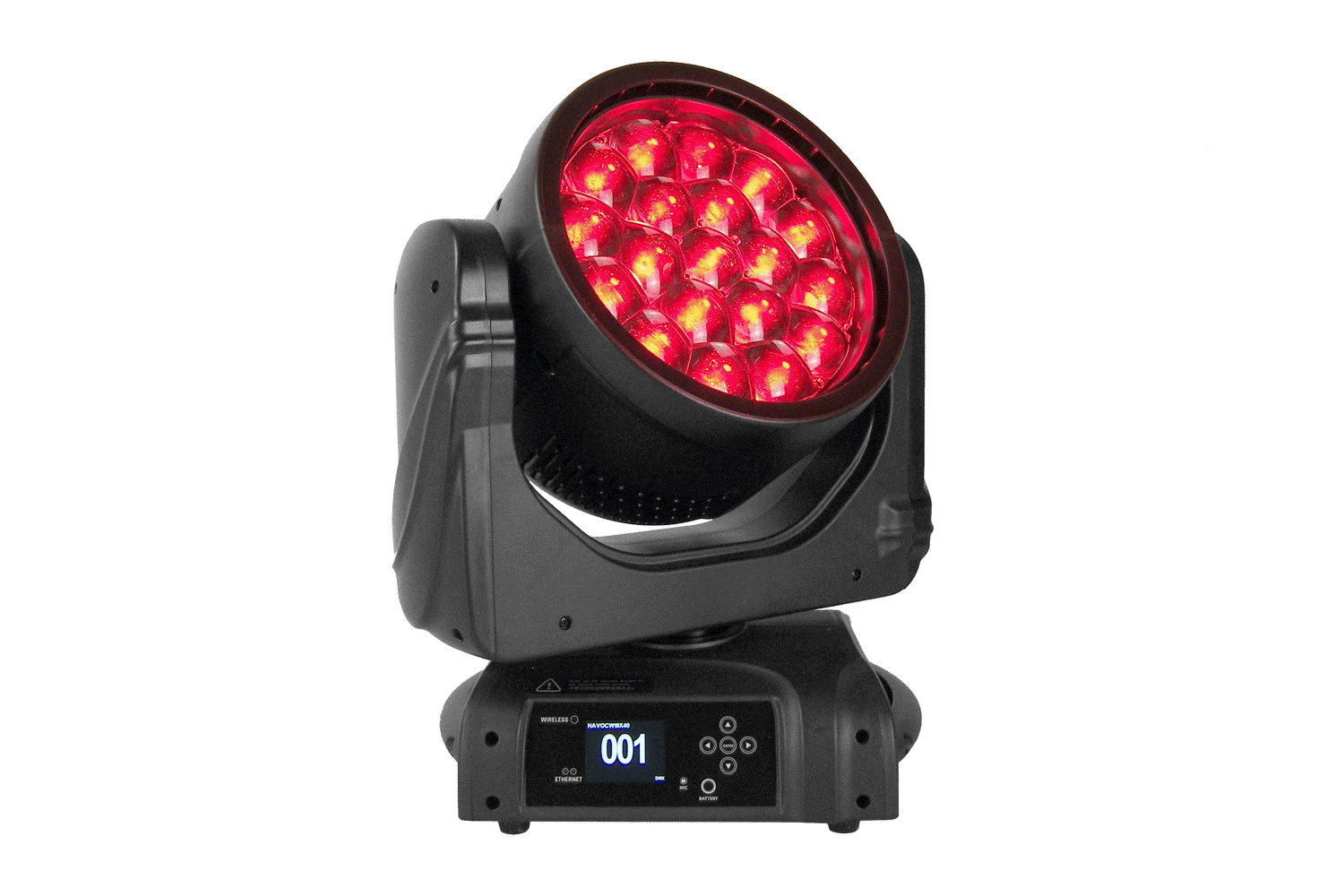

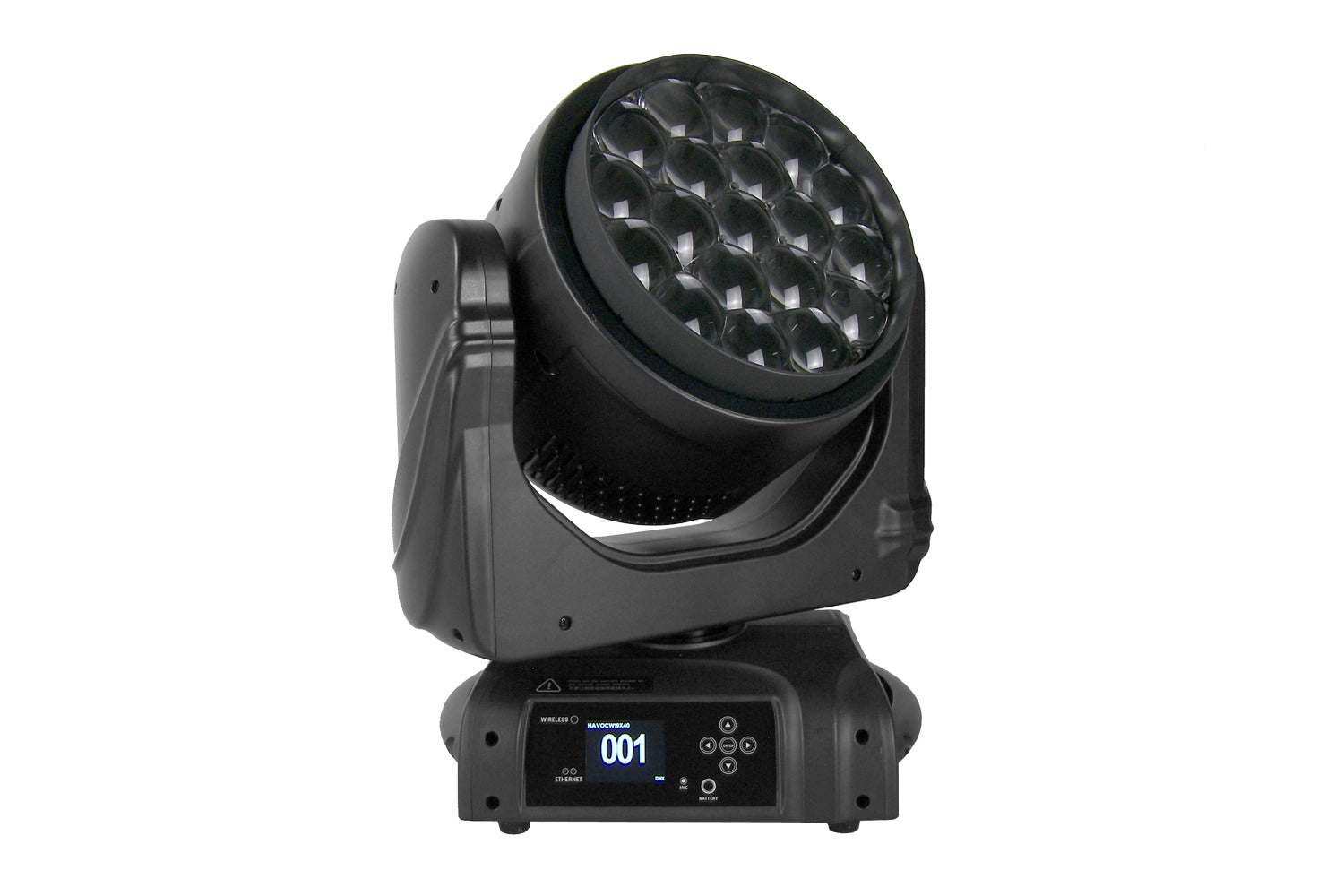

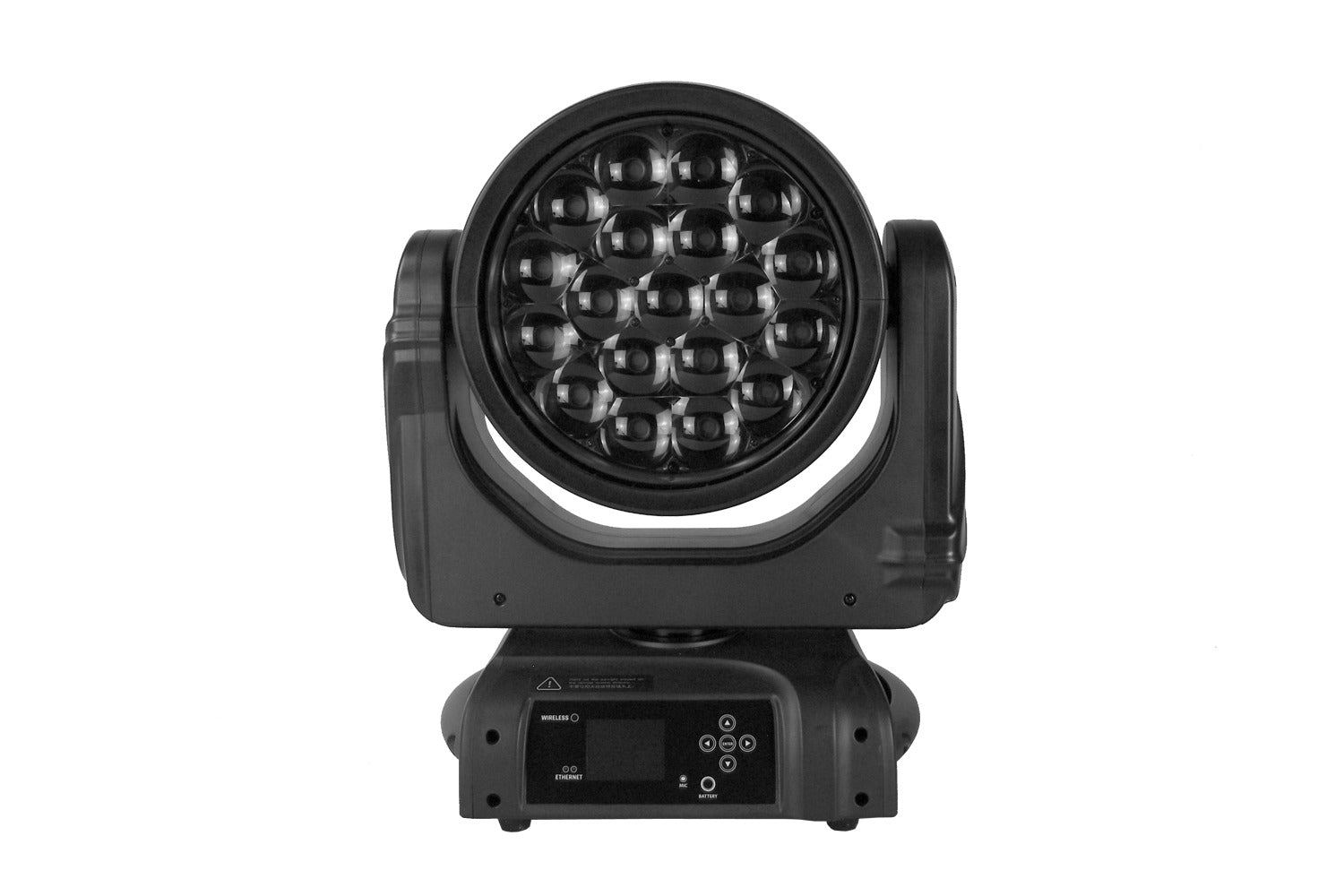

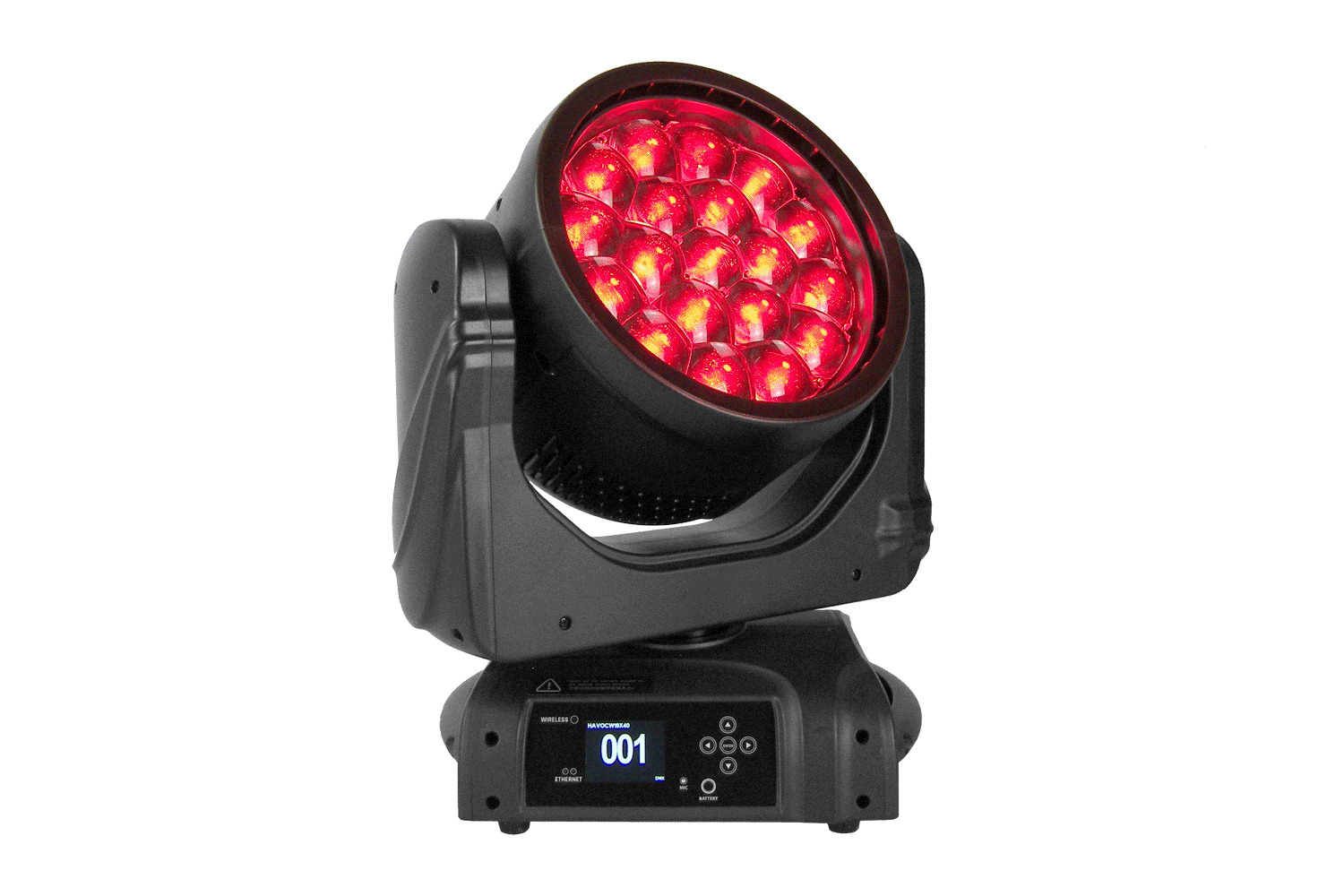

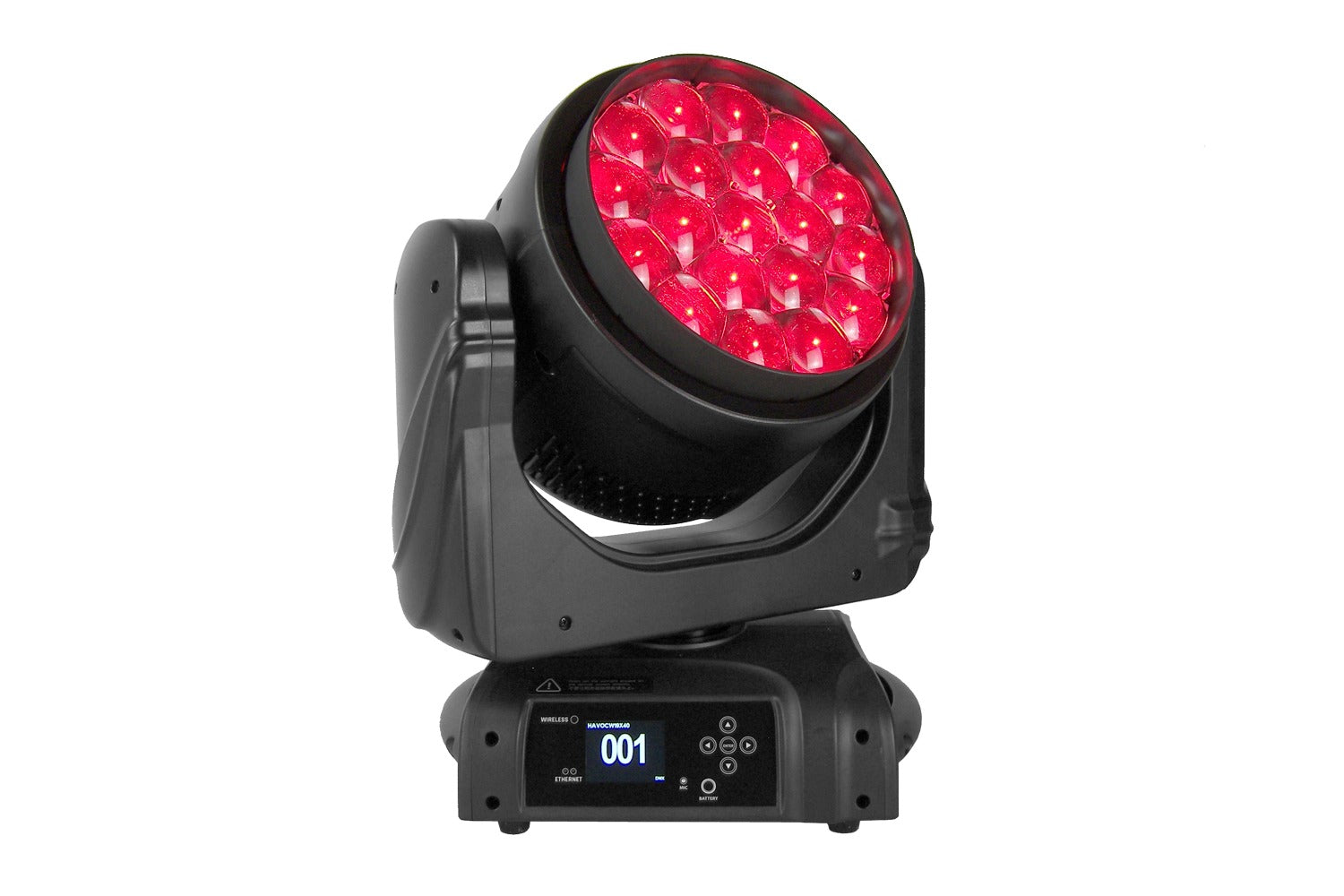

HAVOCW19X40CRI - 19 x 40W Zoom Wash Moving Head
The Event Lighting HAVOCW19X40CRI is a powerhouse Zoom Wash Moving Head designed to transform any event or production. Boasting 19 x 40W RGB+WW LEDs, it delivers a stunning spectrum of colours and precise illumination. With a versatile beam angle ranging from 4° to 48°, you can effortlessly tailor the coverage to suit any venue or stage.
With advanced features like 16-bit auto repositioning, pixel control, and motorised zoom from 4° to 48°, you have complete control over your lighting effects and beam shaping.
With flexible operational modes including DMX, auto, and sound active, navigation is intuitive via the 2.4" colour LCD control panel with battery backup. Upgradeable via DMX, the HAVOCW19X40CRI ensures your lighting capabilities stay cutting-edge. Crafted with durability in mind, the matte black ABS and steel housing contains a sensor-controlled fan, ensuring efficient cooling in a robust and reliable form-factor.

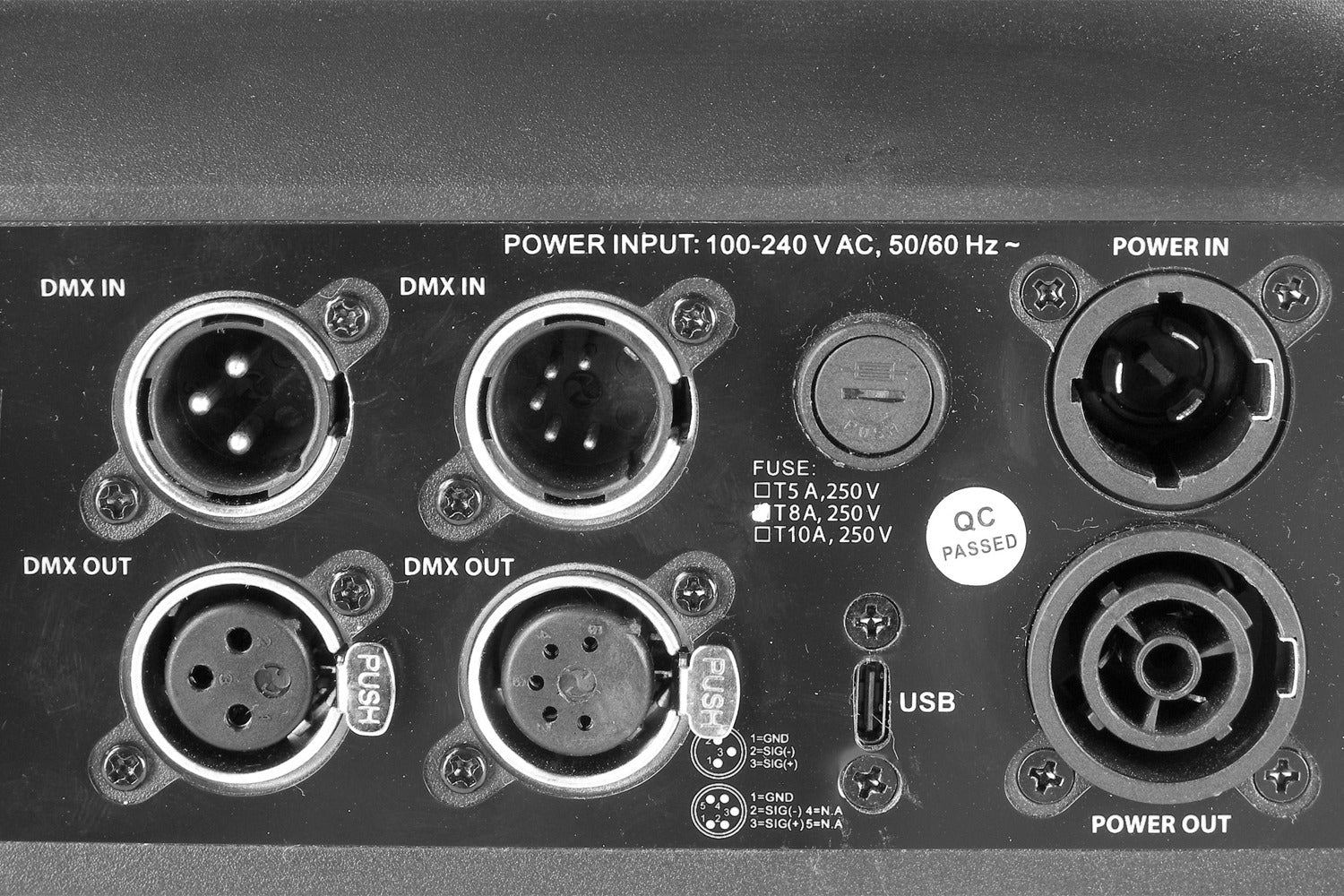

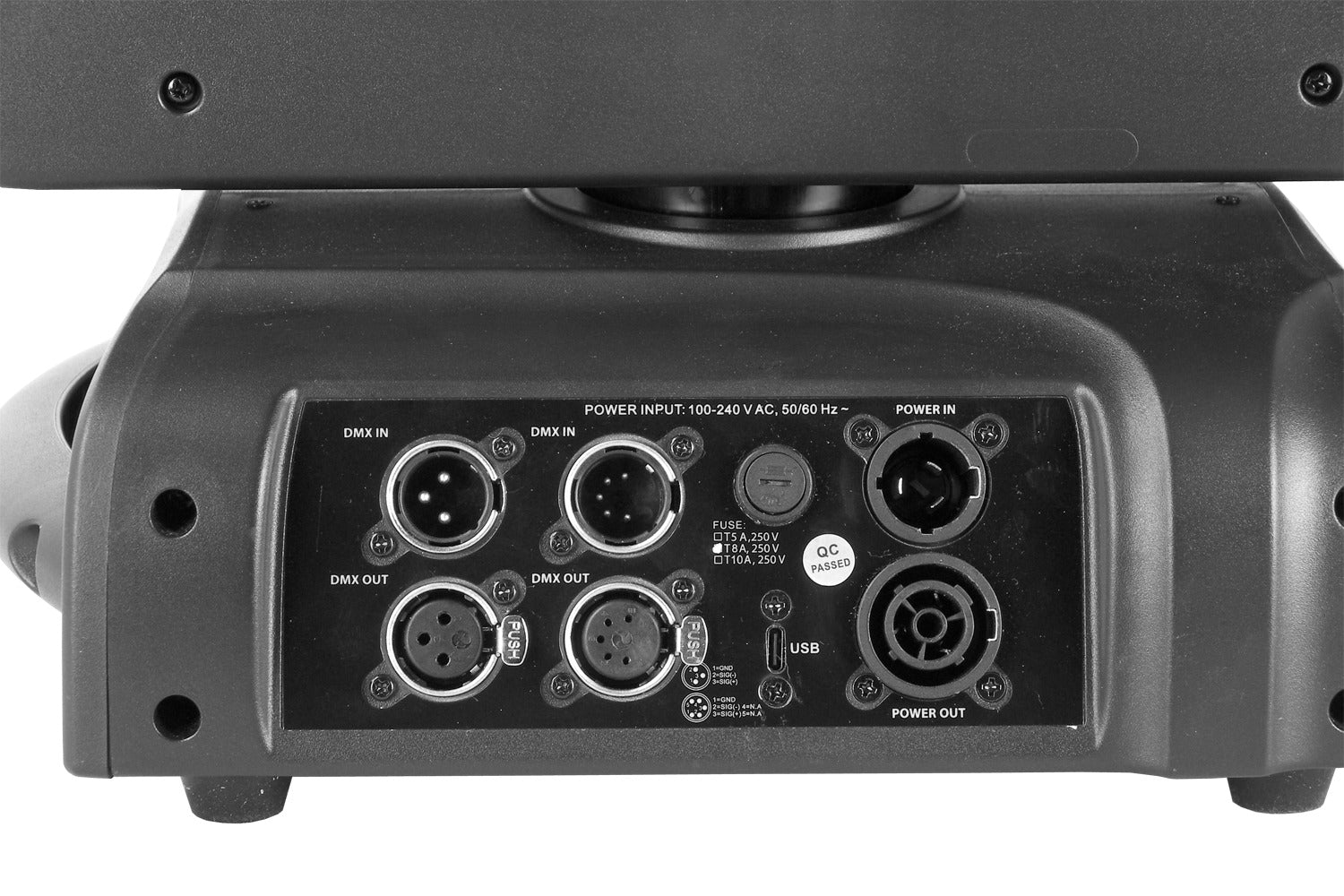

The HAVOCW19X40CRI comes with True1 in/out, 3/5 pin in/out and includes 2 x omega brackets for quick and easy installation.
Specifications:
Photometrics

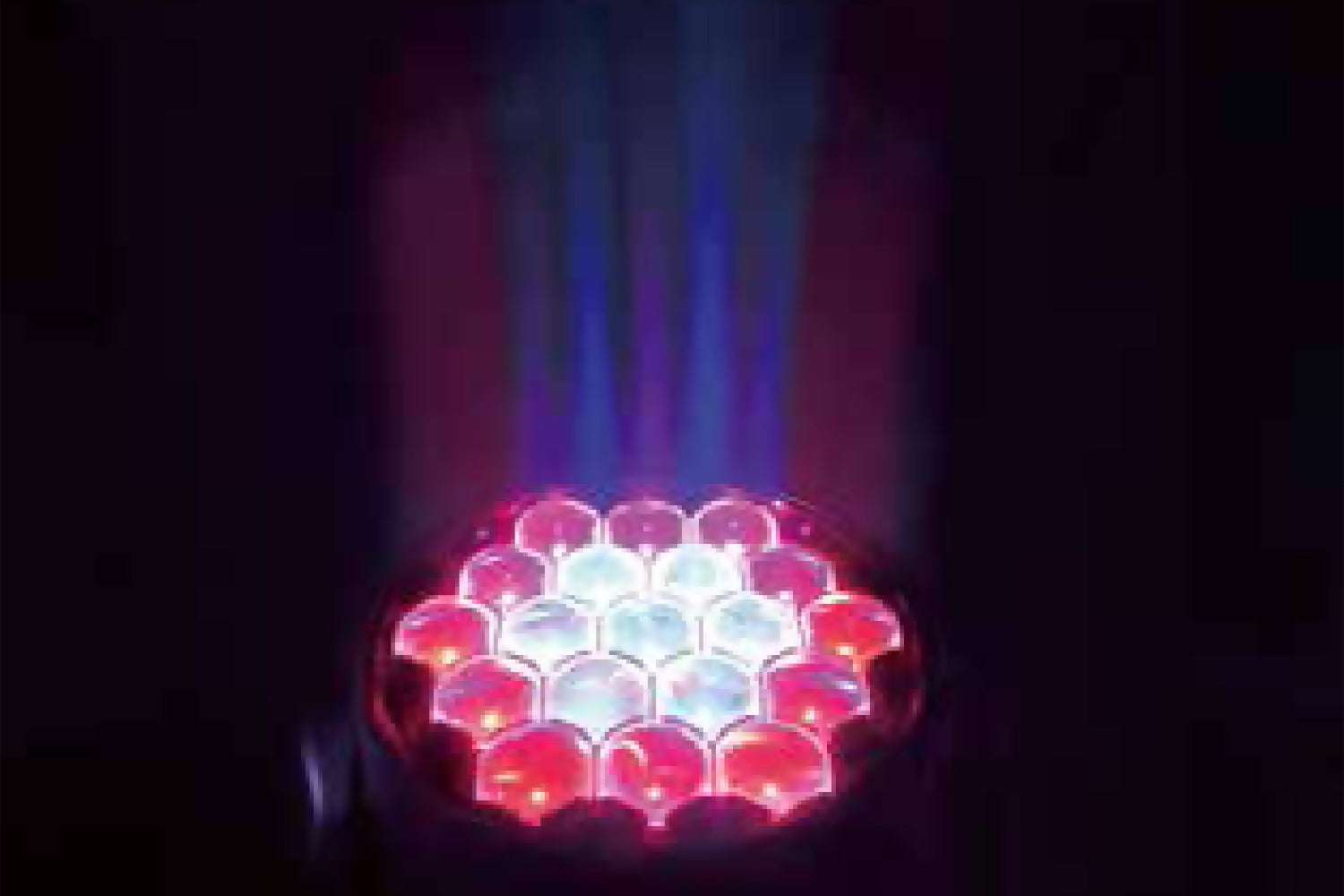

- Light Source: 19 x 40W RGB+WW LEDs
- Beam Angle: 4°-48°
- Output: 7,443 lumen, 28,376 lux@5m@4°, 1,208 lux@5m@48°
- CRI≥93, R9≥95
- LED Lifespan: 60,000 hours
Effects
- Dimming: 0-100%
- Pixel Control: Yes
- Strobe: Yes
- Zoom: Motorised, 4°-48°
Movement
- 16-bit auto reposition
- Pan: 540° (3.2s)
- Tilt: 265° (1.57s)
Power
- Input Voltage: 100-240V AC, 50/60Hz
- Max power consumption: 535W
- Connection: True1 in/out
Control
- Control Protocol: DMX512, RDM
- DMX Channels: Main 18/25/37; Pixel 14/21/109/86; 12/76
- Control Interface: 3-pin DMX in/out, 5-pin DMX in/out
- Display: 2.4" colour LCD control panel with battery backup
- Software: Upgradeable via DMX or USB
Housing
- Housing Materials: ABS and steel, matte black finish

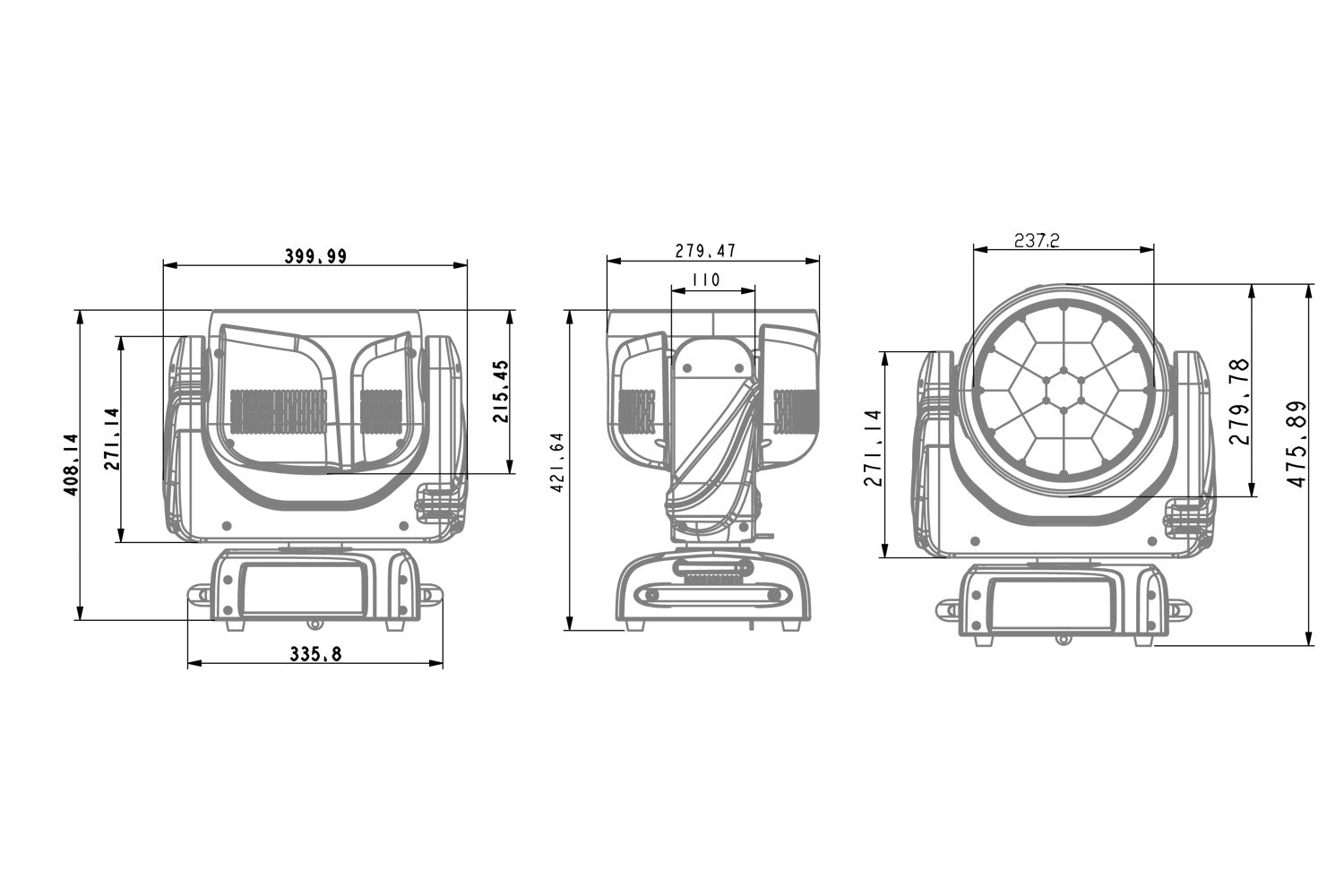

- Dimensions: 400 x 280 x 421.6mm / 15.8" x 11" x 16.6"
- Cooling: Sensor controlled fan
- Net Weight: 15.9 kg / 35.1 lbs
- Rigging: 2 x Omega bracket with 1/4 turn quick locks
Misc
Download product datasheet
Warranty: 3 years
