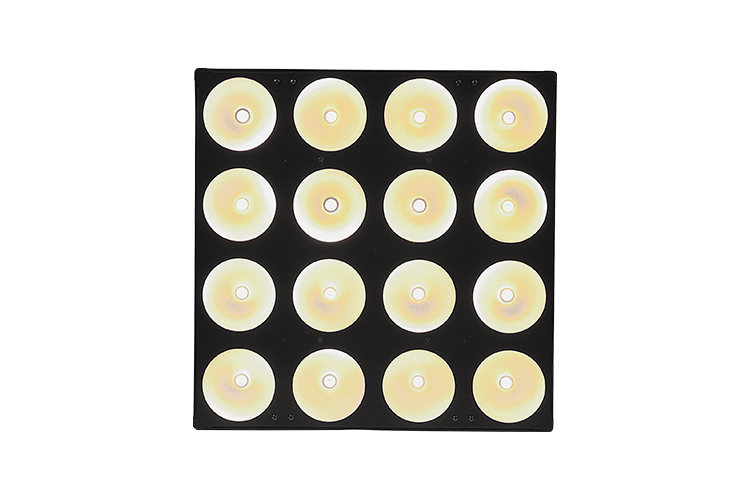

PAN 4x4x30 - 16 x COB RGB 30W LED Pixel Control Panel
This product is discontinued.
See updated model: PANX44
Features
- 100% Flicker free operation, refresh rate up to 11,700Hz
- Individual Pixel controllable in DMX mode
- 16-bit 4 selectable Dimming Curve
- 4-button LCD display control panel.
- Oxidation surface treated Aluminum housing
- Latch system (Coffin lock) to link multiple 4 x 4 panel together
- Road case: PAN4X4CASE
Specifications:
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 390 W
- DMX control channels: 3,5,9, 48 or 53 channel mode
- DMX512 connection: 3-pin XLR + 5-pin XLR
- Power input/output: Neutrik Powercon
- Sound-control: via built-in microphone
- Operation Modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Color Mode
- LED: 16pcs 30 W COB Tri-color RGB
- Number of LEDs: 16
- Beam angle: 60°
- Refresh Rate: 11,700Hz
- 4-button LCD control panel
- Dimensions (LxWxH): 425 x 425 x 141 mm
- Weight: 11.3 kg
