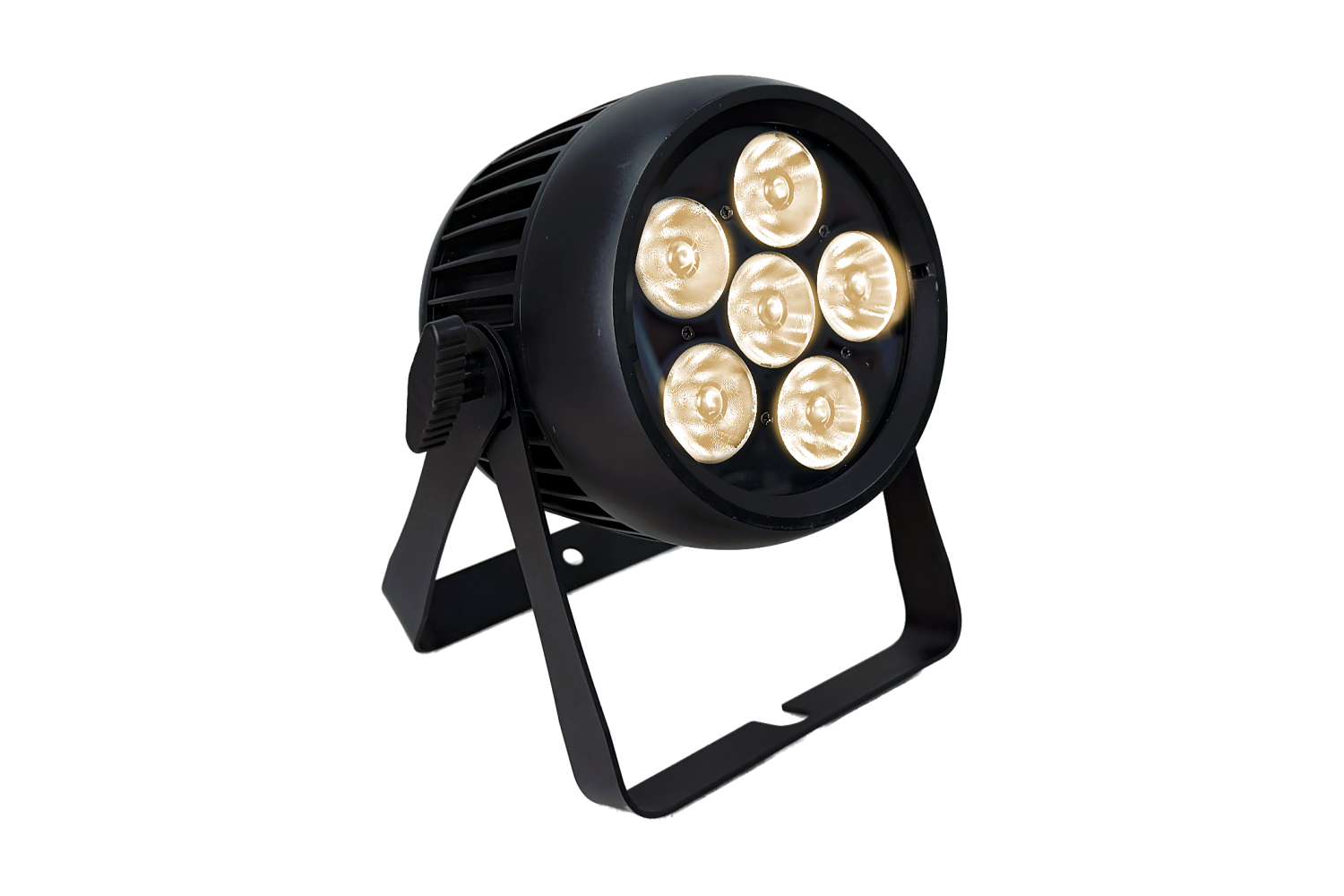

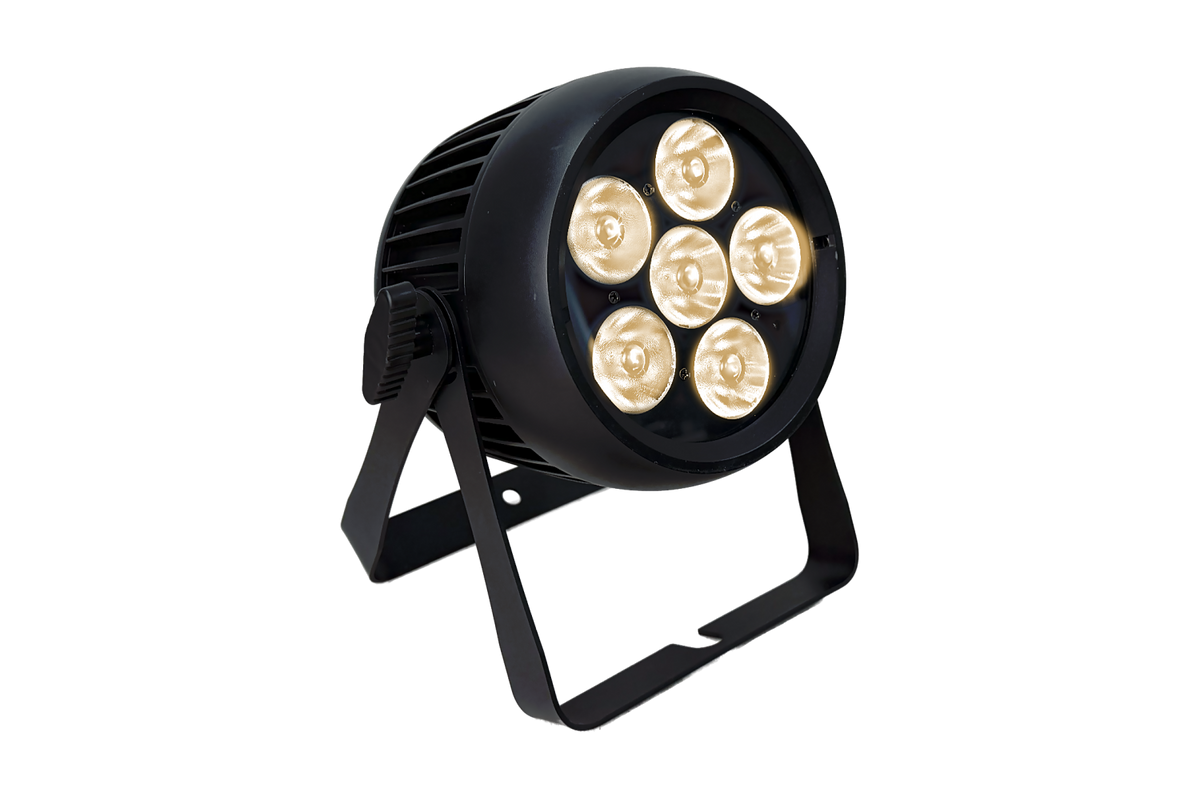

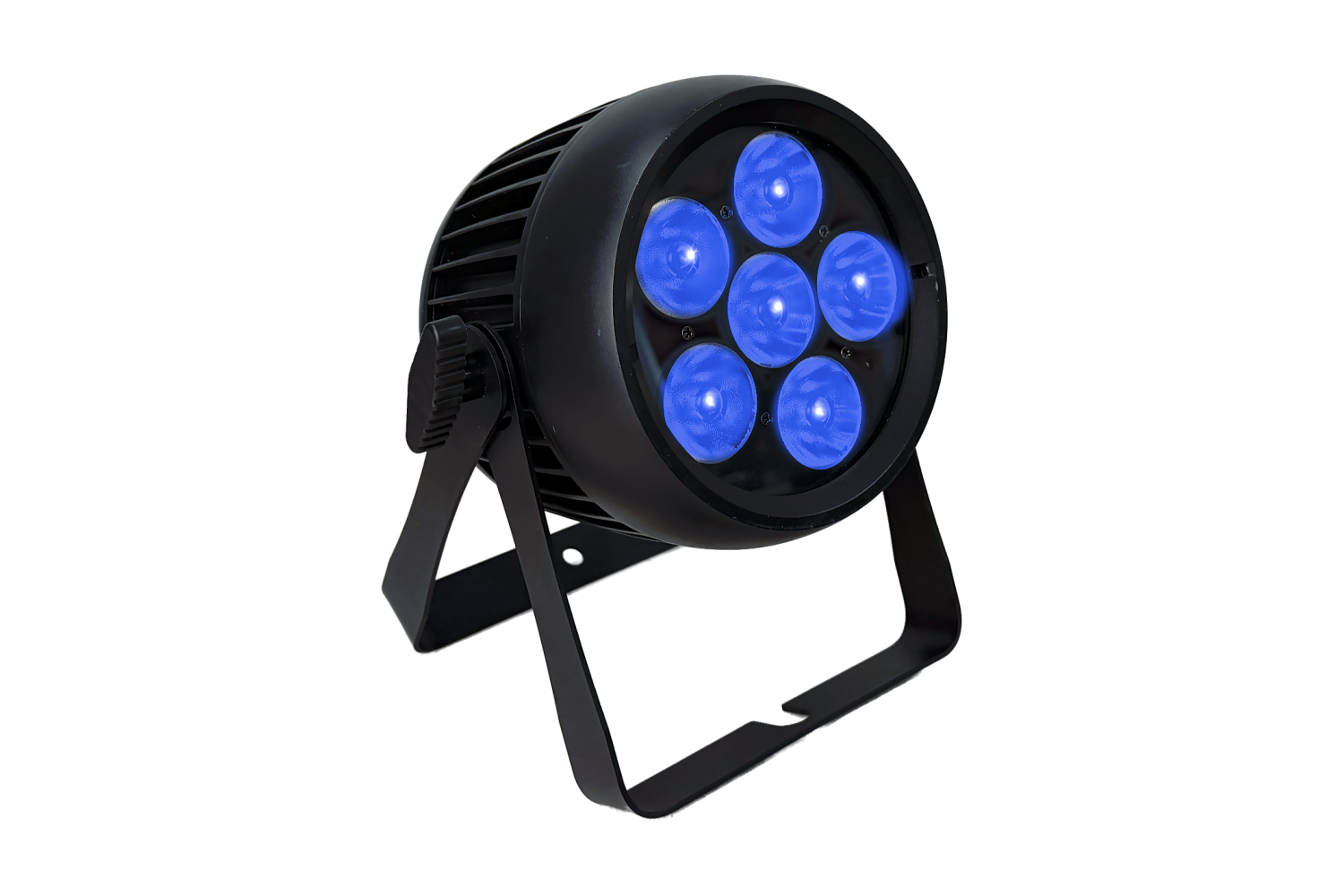

The PAR6X10BQW-IP is a mid-sized outdoor rated battery fixture, featuring 6 x 10W RGB+WW LEDs in a die cast aluminium housing, a 15° beam angle, WDMX on-board and included 40° Frost Filter.

Photometrics

• Light Source: 6 x 10W RGB+WW LEDs
• Beam Angle: 15°
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%

Power

• Input Voltages: 100V~240V AC, 50/60Hz, 72W
• Power Connection: Seetronic® Outdoor True1 in/out
• Battery operating time:


  	High Battery Mode	Normal Battery Mode	ECO Battery Mode

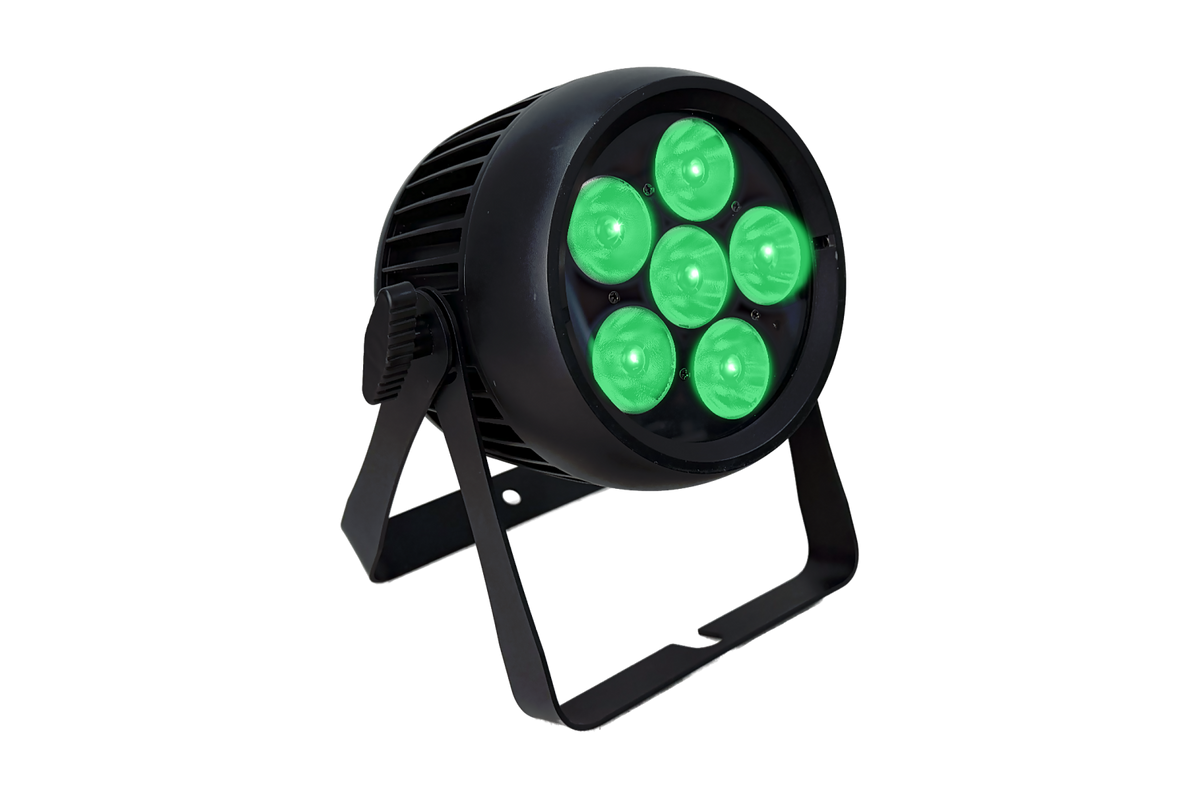

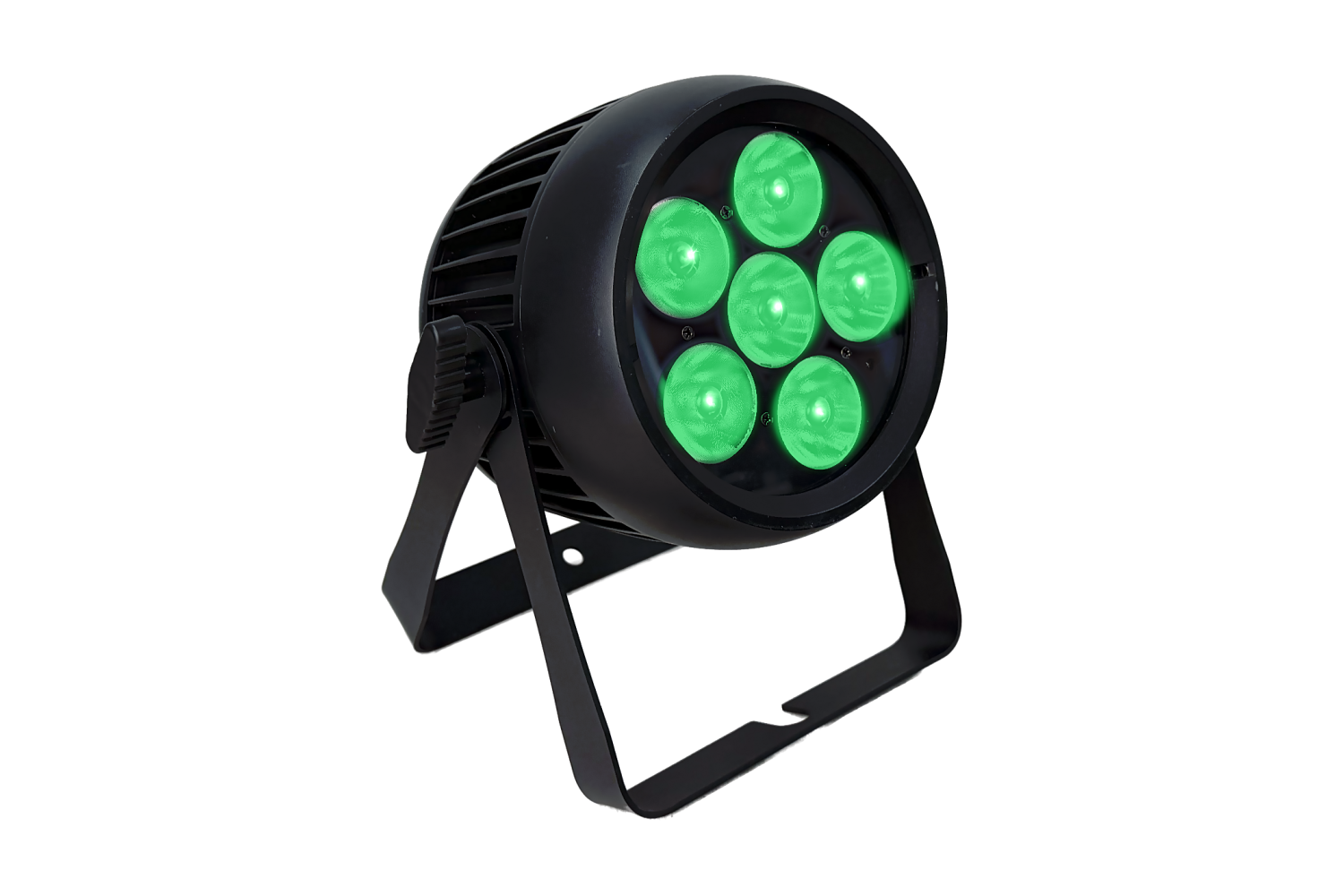

  One Colour (Green)	18 Hours	20.5 Hours	32 Hours
  Two Colours (Green + Blue)	10.5 Hours	13 Hours	18 Hours
  Full Colours	6 Hours	7.5 Hours	9.5 Hours
  Colour Fade	18 Hours	20 Hours	29 Hours




Control

• Operational Modes: DMX, manual, auto, master/slave, Wireless DMX, IR Remote Control
• Display: OLED touch display with glass buttons
• Control Protocol: DMX512, Wireless DMX (W-DMX)

• DMX Channels: 4 / 9

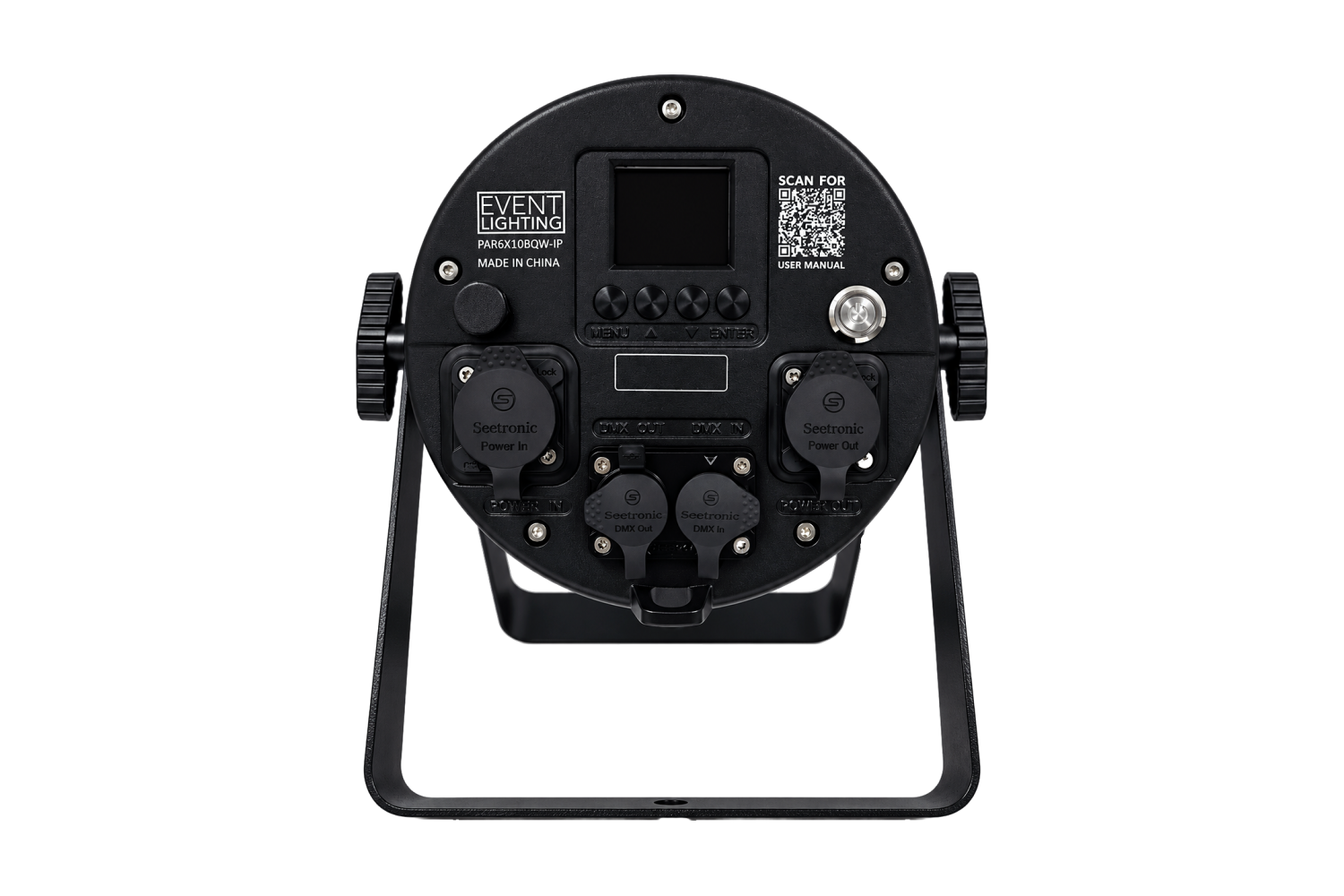

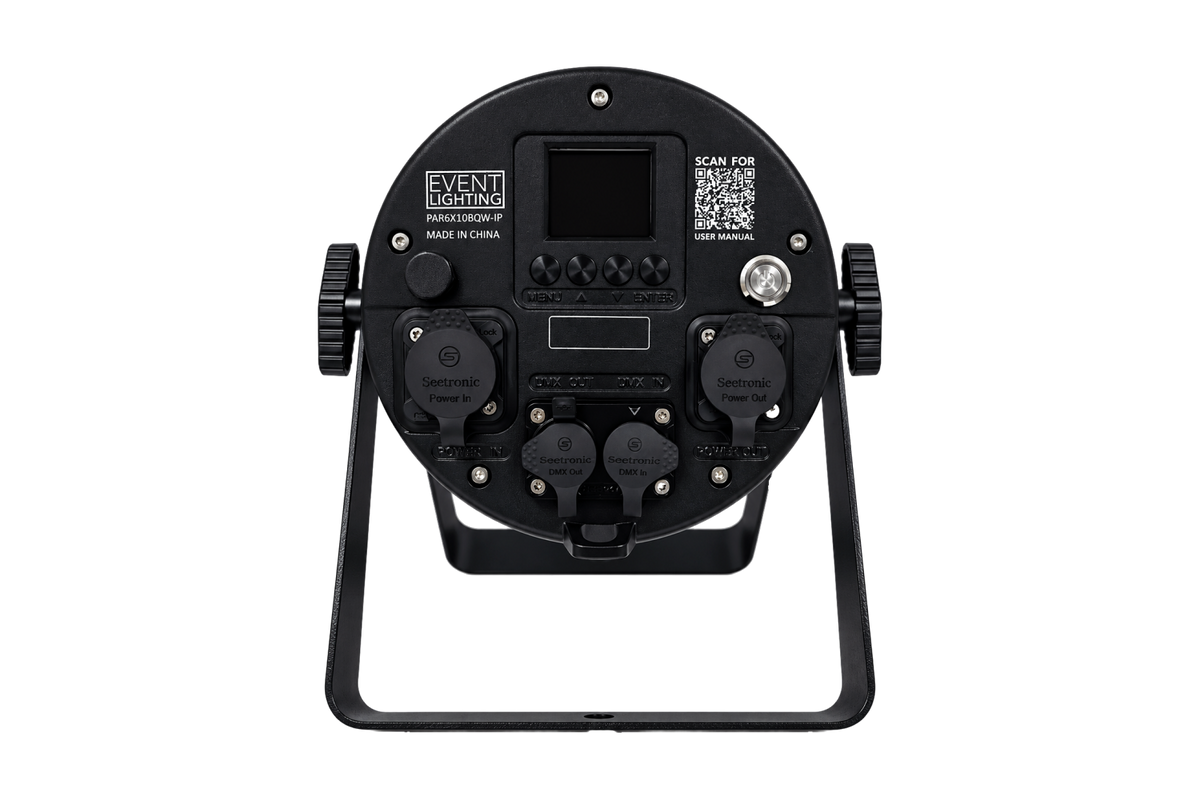

• DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling
• Dimensions: 238 x 195 x 254mm / 9.4" x 7.7" x 10"
• Weight: 3.9kg / 8.6 lbs

Accessories

• 1M Seetronic® Outdoor True1 Cable (Included)
• 1M Seetronic® Outdoor DMX Cable (Included)
• 40° Frost Filter (Included)
• Omega Bracket (Included)


IMPORTANT:  Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.

Generic Battery Care

Download User Manual

Warranty: 3 years
