The ARCSPOT20QW is a high-performance, compact outdoor spot designed for precision lighting in demanding environments. Despite its small footprint, it delivers powerful, focused illumination, making it ideal for highlighting architectural features, statues, or landscaping where space is limited but light quality is paramount.

Key Features

• Premium RGBW Mixing: Utilising 9 x 2.22W LEDs with a dedicated 3000K Warm White chip, this fixture produces a seamless blend of vibrant colours and elegant, warm tones.

• Superior Durability: Boasting an IP67 rating, the ARCSPOT20QW is built to withstand temporary immersion and the harshest weather conditions, offering higher protection for ground-level or exposed installations.

• Versatile Optics: Ships with a versatile 20° beam angle as standard. For specialised lighting designs, optional lenses ranging from a tight 5° beam to a wide 120° flood are available via indent order.

• Low Profile Design: Its small dimensions and lightweight build (only 3.85 kg) allow for discreet placement in gardens, alcoves, or atop pillars without distracting from the architecture.

• Simplified Integration: Runs on a safe 24V DC system, compatible with centralised power and DMX control for unified site management.

Specifications:

• Light Source: 9 x 2.22W RGB+WW LEDs
• White Colour Temperature: 3000K

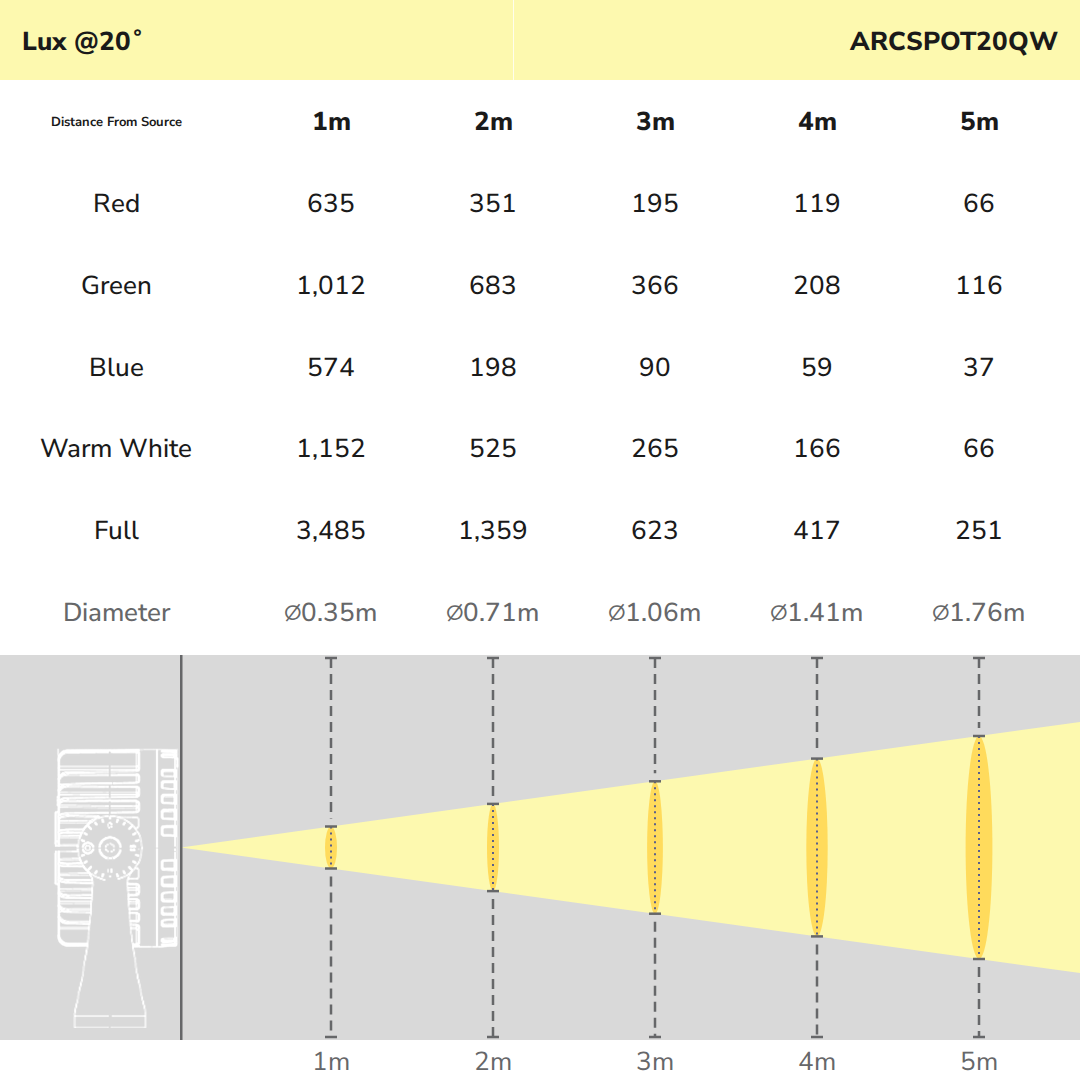

• Beam Angle: 20°
  • Optional 5°, 15°, 20. °25°, 30°, 60° or 120° with additional Lead Time
• Control: DMX (Requires ARCW for Programming)
• Power: External 24V Power Supply (Requires IP2PSU150 for Power)
• IP Rating: IP67
• Dimensions: 230 x 150 x 130 mm / 9" x 6" x 5"
• Weight: 3.85 kg / 8.5 lbs

ARCW Codes and Applications Information

Warranty: 3 Years
